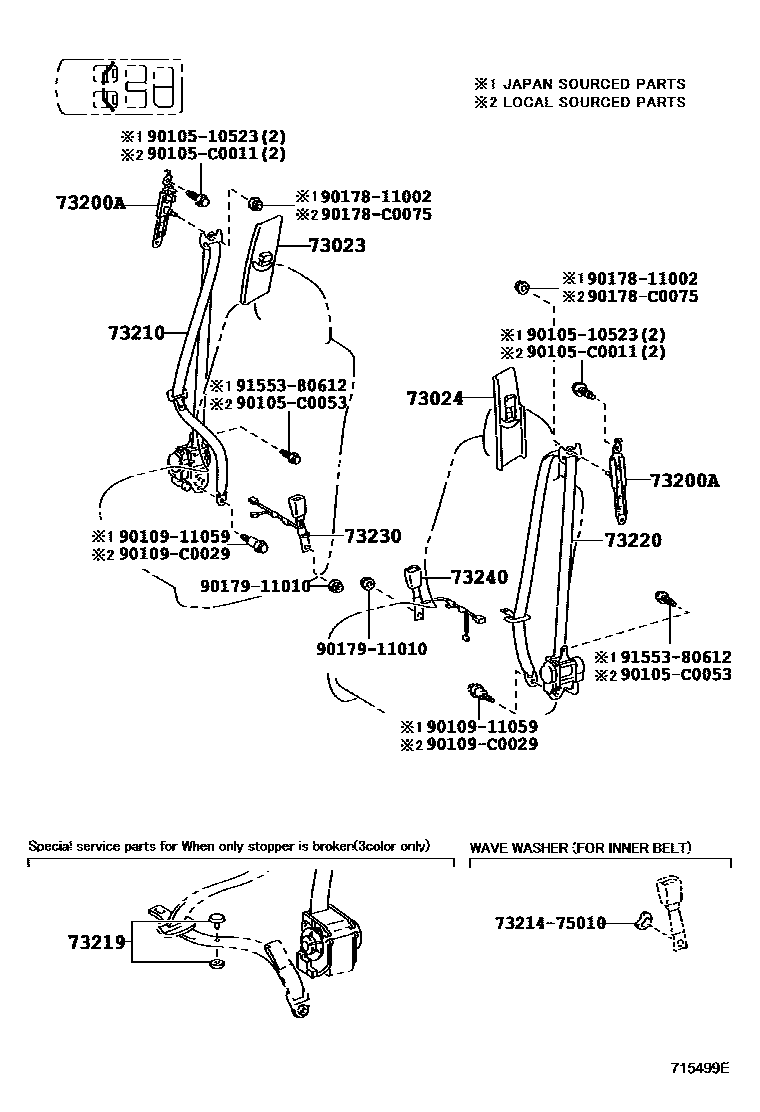

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A3iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main73023-30010-A5iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

main73023-30010-E1iGRJ200,UZJ200..5FC200712-201202

SAND BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A3iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main73024-30010-A5iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

main73024-30010-E1iGRJ200,UZJ200..5FC200712-201202

SAND BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×4iGRJ200,URJ202201304-201601

main73200-53010×4iGRJ200,UZJ200..5FC200712-201202

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60750-E0iGRJ200..5F200712-200811

SAND BEIGE,TRIM4#

main73210-60751-A2iGRJ200,URJ202201202-201601

IVORY,TRIM0#

main73210-60751-A5iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

main73210-60751-E0iGRJ200,UZJ200201104-201202

SAND BEIGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iGRJ200,URJ202201202-201601

BLACK

main73219-33020iGRJ200,URJ202201202-201601

GRAY

main73219-33030iGRJ200,URJ202201202-201601

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60610-E0iGRJ200..5F200712-200811

SAND BEIGE,TRIM4#

main73220-60611-A2iGRJ200,URJ202201202-201601

IVORY,TRIM0#

main73220-60611-A5iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

main73220-60611-E0iGRJ200,UZJ200201104-201202

SAND BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73240-60410-E0iUZJ200..VX200712-201202

SAND BEIGE,TRIM4#

main73240-60440-E0iGRJ200,UZJ200..5FC..GX200712-201202

SAND BEIGE,TRIM4#

main73240-60620-A0iGRJ200,URJ202..VX,VXR201601-201612

FLAXEN,TRIM0#

main73240-60630-A0iGRJ200..GXR201601-201612

FLAXEN,TRIM0#

main73240-60450-A2supersedes 73240-60410-A2iURJ202201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60480-E0iUZJ200..VX200712-201202

SAND BEIGE,TRIM4#

main73230-60510-A1iGRJ200..GXR201601-201612

FLAXEN,TRIM0#

main73230-60510-E0iGRJ200..5F200712-200811

SAND BEIGE,TRIM4#

main73230-60750-A0iGRJ200,URJ202..VX,VXR201601-201612

FLAXEN,TRIM0#

main73230-60490-A2supersedes 73230-60480-A2iURJ202201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

90105C0011

main90105-C0011

90105C0053

main90105-C0053

9010911059

main90109-11059

90109C0029

main90109-C0029

9017811002

main90178-11002

90178C0075

main90178-C0075

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 3 diagrams in section
