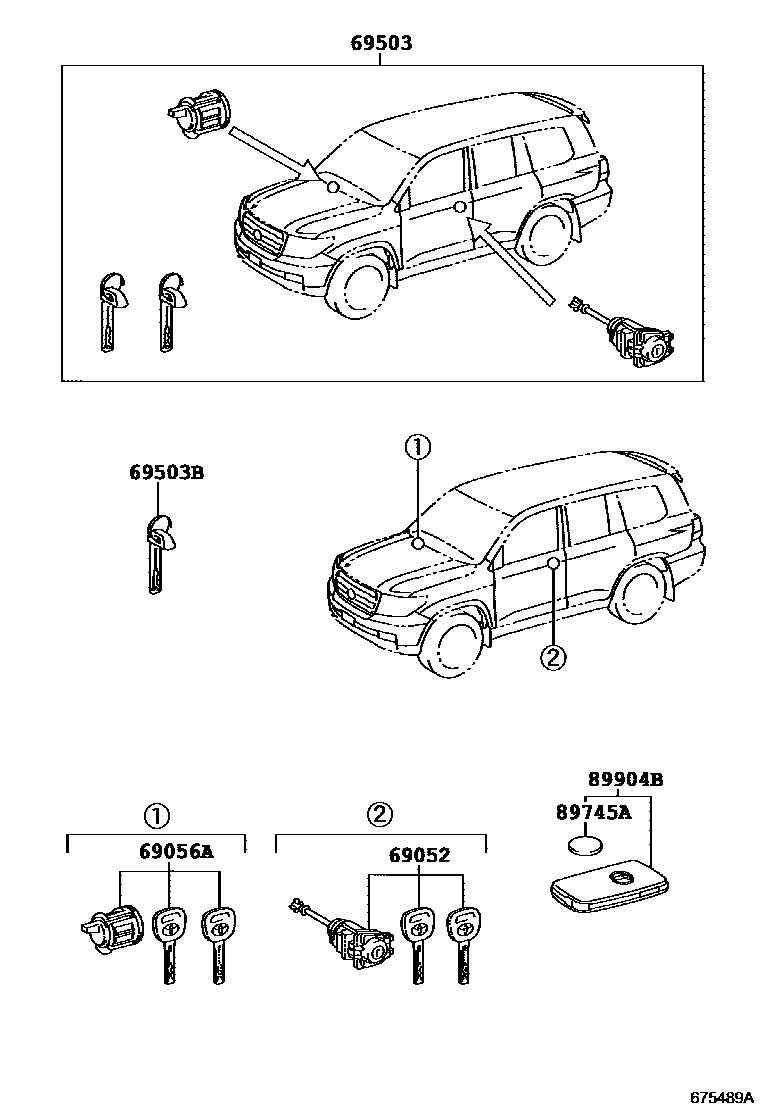

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60250iGRJ200,UZJ200200712-200808

main69052-60251iGRJ200,UZJ200200809-200811

main69052-60252iGRJ200,UZJ200..5FC200812-201202

main69052-60390iGRJ200,URJ202201601

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30240iGRJ200,URJ202201202-201601

main69056-50160iGRJ200,URJ202201601

69503CYLINDER SET, LOCK

main69005-60F70iGRJ200,URJ202201202-201601

main69005-60K70iGRJ200,URJ202201601

main69005-6C250iGRJ200,UZJ200200712-200808

main69005-6C251iGRJ200,UZJ200200809-200811

main69005-6C252iGRJ200,UZJ200..5FC200812-201202

69503BKEY, CUT

main69515-12310×2iGRJ200,URJ202201202-201601

MASTER KEY,W(*68)

main69515-30310×2iGRJ200..5F200712-200811

MASTER KEY,W(*68)

main69515-33110×2iGRJ200,URJ202201601

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-45010iGRJ200,URJ202201202-201601

CR2032

main89745-52020iGRJ200..5F200712-200811

CR1632

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0E130×2iGRJ200;URJ202..VX201601

main89904-0E140×2iURJ202..VXR201601

main89904-0R100×2iGRJ200,URJ202201202-201601

main89904-60330iGRJ200,UZJ200200712-200806

main89904-60480×2iGRJ200,UZJ200..5FC200806-201202

main89904-0G060×2iURJ202201202-201601

VX(SPECIAL) PACKAGE

6 parts on this diagram · 2 diagrams in section
