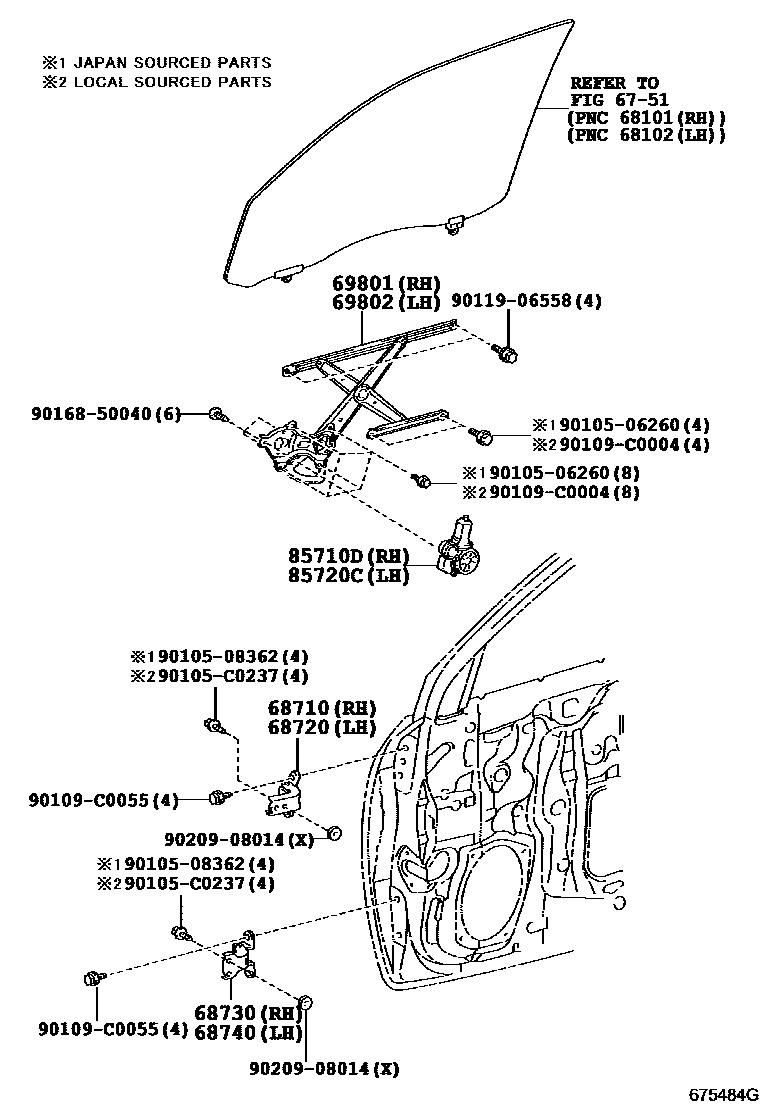

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iGRJ200,URJ202201601

main68710-12151iGRJ200,URJ202201202-201601

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iGRJ200,URJ202201601

main68720-12151iGRJ200..5F200712-200811

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iGRJ200,URJ202201601

main68730-12120iGRJ200..5F200712-200811

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iGRJ200,URJ202201601

main68740-12120iGRJ200..5F200712-200811

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60080iGRJ200,URJ202201601

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60080iGRJ200..5F200712-200811

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-60160iGRJ200..5F200712-200811

main85710-60320iGRJ200,URJ202201302-201601

main85710-60351iGRJ200,URJ202201601

main85710-72011iGRJ200,URJ202201202-201302

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-60150iGRJ200,UZJ200..5FC200712-200909

main85720-60290iGRJ200,URJ202201302-201601

main85720-60331iGRJ200,URJ202201601

main85720-72011iGRJ200,UZJ200200909-200911

9010506260

main90105-06260

9010508362

main90105-08362

90105C0237

main90105-C0237

90109C0004

main90109-C0004

90109C0055

main90109-C0055

9011906558

main90119-06558

9016850040

main90168-50040

9020908014

main90209-08014

17 parts on this diagram · 1 diagram in section
