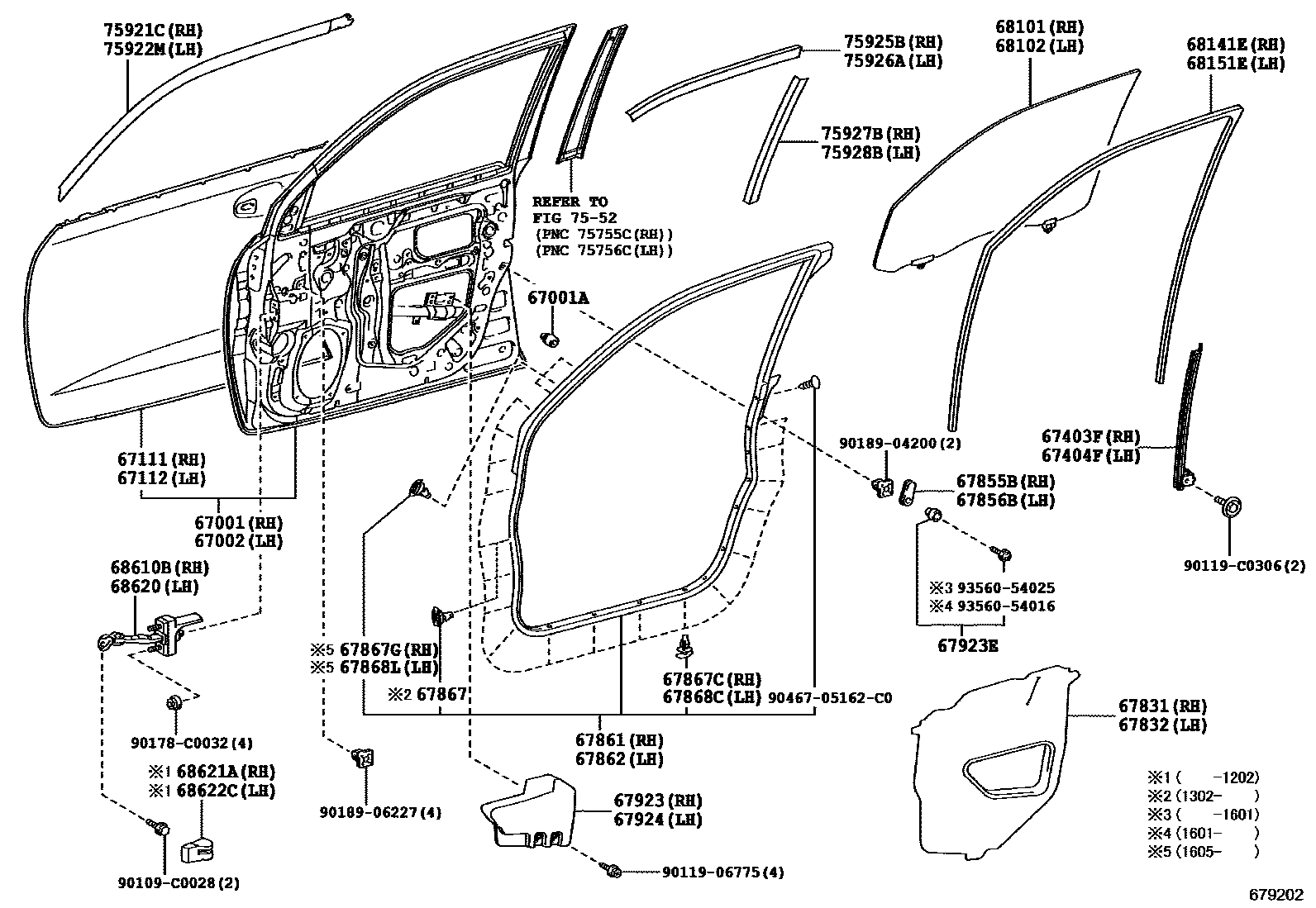

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60630iGRJ200,URJ202201202-201412

main67001-60631iGRJ200,URJ202201501-201601

main67001-60830iGRJ200,URJ202..GXR,VX201601

main67001-60850iGRJ200,URJ202..VXR201601

main67001-60670iURJ202201202-201412

VX(SPECIAL) PACKAGE

main67001-60671iURJ202201501-201601

VX(SPECIAL) PACKAGE

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iGRJ200..5F200712-200811

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60630iGRJ200..5F200712-200811

main67002-60631iGRJ200,URJ202201501-201601

main67002-60830iGRJ200,URJ202..GXR,VX201601

main67002-60850iGRJ200,URJ202..VXR201601

main67002-60670iURJ202201202-201412

VX(SPECIAL) PACKAGE

main67002-60671iURJ202201501-201601

VX(SPECIAL) PACKAGE

67111PANEL, FRONT DOOR, OUTER RH

main67111-60350iGRJ200..5F200712-200811

main67111-60430iGRJ200,URJ202..GXR,VX201601

main67111-60440iGRJ200,URJ202..VXR201601

main67111-60410iURJ202201202-201601

VX(SPECIAL) PACKAGE

67112PANEL, FRONT DOOR, OUTER LH

main67112-60350iGRJ200..5F200712-200811

main67112-60430iGRJ200,URJ202..GXR,VX201601

main67112-60440iGRJ200,URJ202..VXR201601

main67112-60410iURJ202201202-201601

VX(SPECIAL) PACKAGE

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-60100iGRJ200,UZJ200..5FC200712-201202

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-60110iGRJ200,UZJ200..5FC200712-201202

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-60160iGRJ200..5F200712-200811

main67831-60161iGRJ200,URJ202201505-201601

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-60070iGRJ200..5F200712-200811

main67832-60071iGRJ200,URJ202201505-201601

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-60040iGRJ200..5F200712-200811

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-60010iGRJ200..5F200712-200811

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-60150iURJ202201202-201601

main67861-60160iGRJ200..GXR201601

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-60150iGRJ200,URJ202..VX,VXR201601

main67862-60160iGRJ200..GXR201601

67867CLIP, DOOR WEATHERSTRIP

main67867-52010×2iGRJ200,URJ202201601

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×18iGRJ200..5F200712-200811

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-60010×3iGRJ200,URJ202201605

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×18iGRJ200..5F200712-200811

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-60010×3iGRJ200,URJ202201605

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-60010iGRJ200,UZJ200..5FC200712-201202

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iGRJ200..5F200712-200811

main67923-60050×2iGRJ200,URJ202201601

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-60010iGRJ200..5F200712-200811

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-60560iGRJ200..5F200712-200811

*UVCT,T=5.0,GREEN

main68101-60561iGRJ200,URJ202201202-201601

*UVCT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-60560iGRJ200..5F200712-200811

*UVCT,T=5.0,GREEN

main68102-60561iGRJ200,URJ202201202-201601

*UVCT,T=5.0,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-60070iGRJ200..5F200712-200811

68151ERUN, FRONT DOOR GLASS, LH

main68151-60060iGRJ200..5F200712-200811

68610BCHECK ASSY, FRONT DOOR, RH

main68610-60110iGRJ200,UZJ200..5FC200712-201004

main68610-60111iGRJ200,UZJ200201005-201202

main68610-60130iGRJ200,URJ202201202-201409

main68610-60131iGRJ200,URJ202201410-201601

68620CHECK ASSY, FRONT DOOR, LH

main68620-60100iGRJ200..5F200712-200811

main68620-60101iGRJ200,UZJ200201005-201202

main68620-60110iGRJ200,URJ202201202-201409

main68620-60111iGRJ200,URJ202201410-201601

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iGRJ200..5F200712-200811

68622CCOVER, FRONT DOOR CHECK, LH

main68622-53010iGRJ200,UZJ200..5FC200712-201202

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-60030iGRJ200,UZJ200..5FC200712-201202

75922MTAPE, BLACK OUT, NO.1 LH

main75922-60030iGRJ200,URJ202201601

75925BTAPE, BLACK OUT, NO.3 RH

main75925-60010iGRJ200..5F200712-200811

75926ATAPE, BLACK OUT, NO.3 LH

main75926-60010iGRJ200..5F200712-200811

75927BTAPE, BLACK OUT, NO.4 RH

main75927-60010iGRJ200,UZJ200..5FC200712-201202

75928BTAPE, BLACK OUT, NO.4 LH

main75928-60010iGRJ200,UZJ200..5FC200712-201202

90109C0028

main90109-C0028

9011906775

main90119-06775

90119C0306

main90119-C0306

90178C0032

main90178-C0032

9018904200

main90189-04200

9018906227

main90189-06227

9046705162C0

main90467-05162C0

9356054016

main93560-54016

9356054025

main93560-54025

45 parts on this diagram · 2 diagrams in section
