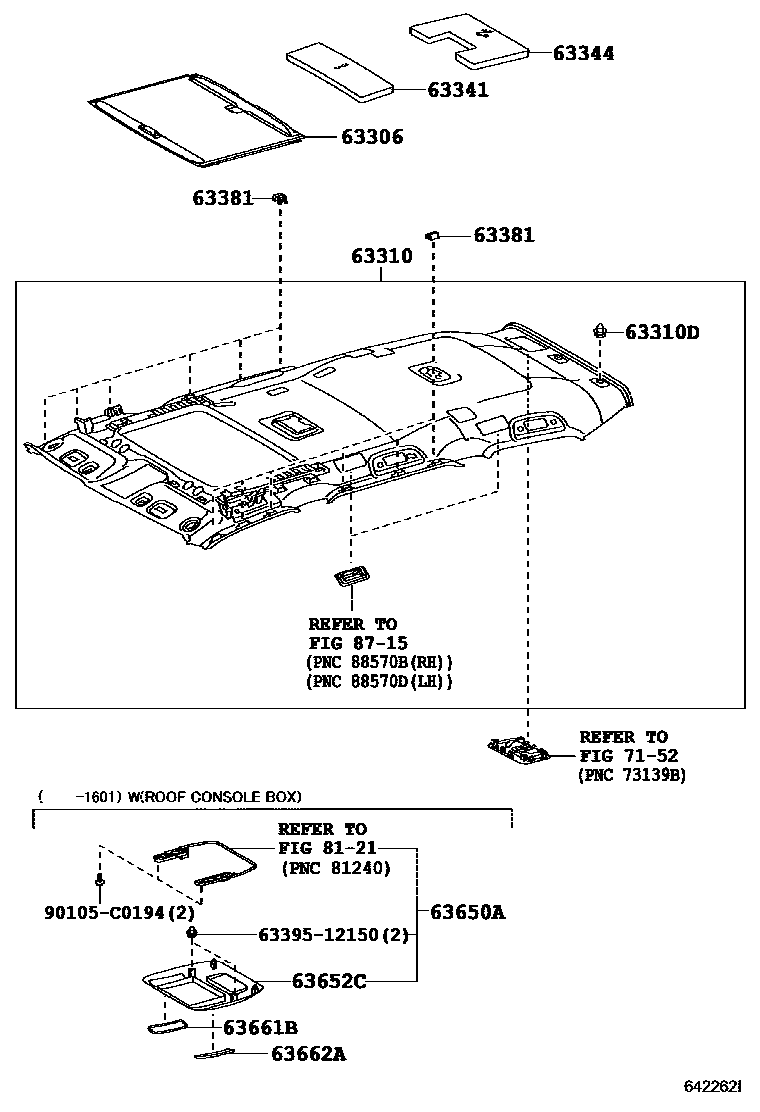

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-60250-A1i201202-201601

SHELL,TRIM0#

main63306-60250-A3i201601-201612

FLAXEN,TRIM0#

main63306-60250-E0i200712-201202

SAND BEIGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-60G90-A0i201202-201601

SHELL,TRIM0#

main63310-60G90-E0supersedes 63311-60511-E0i200712-201202

SAND BEIGE,TRIM4#

main63310-60X30-A1i201601-201612

FLAXEN,TRIM0#

main63311-60511-A0i201202-201601

VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER&EMV & NAVIGATION SYSTEM-EMV & *BT,SHELL,TRIM0#

63310DCLIP, ROOF HEADLINING

main90467-10167×2i200712-200811

63341PAD, ROOF SILENCER, NO.1

main63341-60100i201202-201601

63344PAD, ROOF SILENCER, NO.4

main63344-60040i201202-201601

63381RETAINER, HEADLINING, FRONT

main63381-60010×10i201312-201601

63650ABOX ASSY, ROOF CONSOLE

main63650-60080-E0i200911-201202

SAND BEIGE,TRIM4#

main63650-60080-A0i201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

63652CCOVER, ROOF CONSOLE BOX

main63652-60040-E0i200911-201202

SAND BEIGE,TRIM4#

main63652-60040-A1i201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

63661BCOVER, ROOF LINING TRIM, NO.1

main63661-60010i200911-201202

63662ACOVER, ROOF LINING TRIM, NO.2

main63662-60040i200911-201202

7152SEAT BELT

→ Go to FIG 71-52

8121INTERIOR LAMP

→ Go to FIG 81-21

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

90105C0194

main90105-C0194

15 parts on this diagram · 1 diagram in section
