INSIDE TRIM BOARD
51775COVER,REAR STEP
SHELL,TRIM0#
FLAXEN,TRIM0#
DK. BROWN,TRIM4#
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
FLAXEN,TRIM0#
FLAXEN,TRIM0#
FLAXEN,TRIM0#
62212GARNISH, FRONT PILLAR, LH
FLAXEN,TRIM0#
FLAXEN,TRIM0#
FLAXEN,TRIM0#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
FLAXEN,TRIM0#
FLAXEN,TRIM0#
62412GARNISH, CENTER PILLAR, LH
FLAXEN,TRIM0#
FLAXEN,TRIM0#
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62421COVER, CENTER PILLAR GARNISH, RH
62422COVER, CENTER PILLAR GARNISH, LH
62431CGARNISH, ROOF SIDE RAIL, FRONT RH
SHELL,TRIM0#
FLAXEN,TRIM0#
62432CGARNISH, ROOF SIDE RAIL, FRONT LH
SHELL,TRIM0#
FLAXEN,TRIM0#
62471JCLIP (FOR ROOF SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62638GARNISH, REAR QUARTER TRIM, FRONT RH
FLAXEN,TRIM0#
62639GARNISH, REAR QUARTER TRIM, FRONT LH
FLAXEN,TRIM0#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913BPLATE, FRONT DOOR SCUFF, RH
SHELL,TRIM0#
FLAXEN,TRIM0#
67914BPLATE, FRONT DOOR SCUFF, LH
SHELL,TRIM0#
FLAXEN,TRIM0#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917CPLATE, REAR DOOR SCUFF, RH
SHELL,TRIM0#
FLAXEN,TRIM0#
67918EPLATE, REAR DOOR SCUFF, LH
SHELL,TRIM0#
FLAXEN,TRIM0#
7152
8715
90159C0023
main90159-C0023
90159C0051
main90159-C0051
9018904200
main90189-04200
9018905096
main90189-05096
91631B0625
main91631-B0625

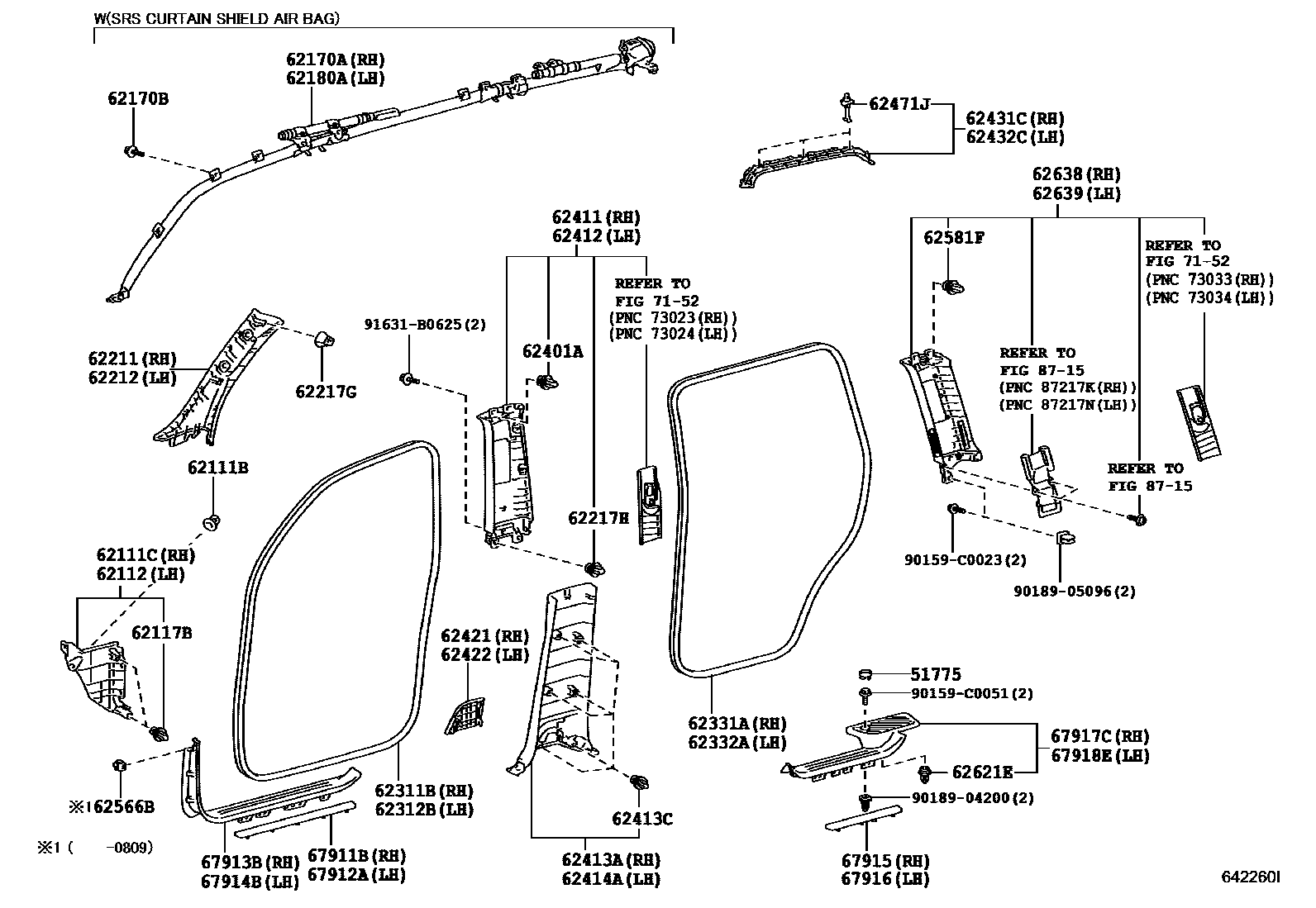

47 parts on this diagram · 2 diagrams in section
