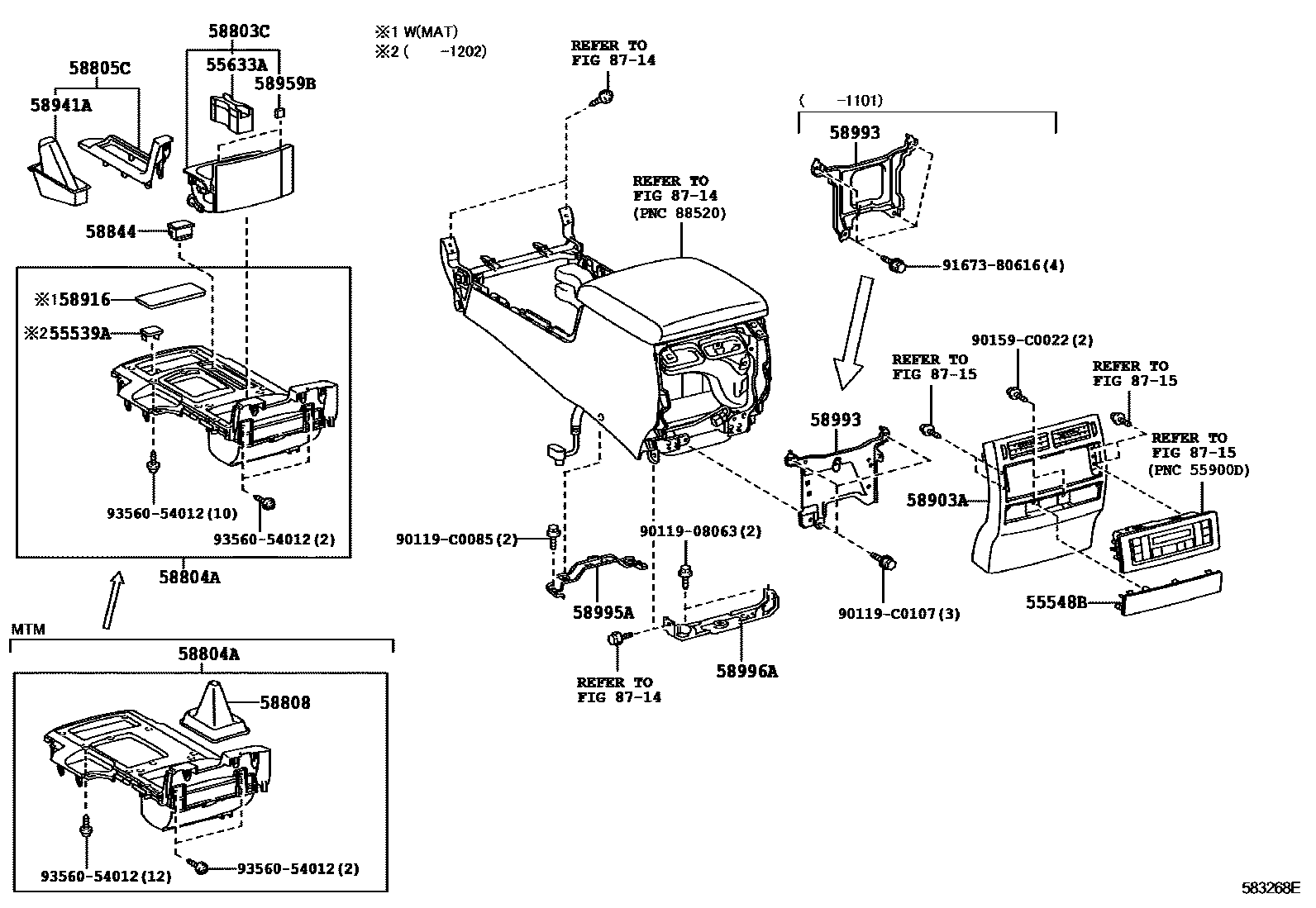

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0supersedes 55539-52060-C0iGRJ200,URJ202..GXR,VX201601-201612

BLACK

55548BCOVER, INSTRUMENT PANEL HOLE

main55548-60050-A0iGRJ200,URJ202201202-201601

VX(SPECIAL) PACKAGE,SHELL,TRIM0#

main55548-60050-A1iGRJ200;URJ202..VX201601

FLAXEN,TRIM0#

main55548-60050-E0supersedes 55548-60050-E0iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-60040iUZJ200..VX200712-200905

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-60030-A1supersedes 58803-60050-A0iURJ202201202-201601

VX PACKAGE,SHELL,TRIM0#

main58803-60050-E0iGRJ200,UZJ200..5FC..GX200712-201202

DK. BROWN,TRIM4#

main58803-60310-A0iGRJ200,URJ202..VX,VXR201601

FLAXEN,TRIM0#

main58803-60320-A0iGRJ200..GXR201601

FLAXEN,TRIM0#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60440-E0iUZJ200..VX200712-200905

DK. BROWN,TRIM4#

main58804-60460-E0iGRJ200,UZJ200..5FC..GX200712-201202

DK. BROWN,TRIM4#

main58804-60480-E1iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

main58804-60510-E0iUZJ200..VX200911-201202

DK. BROWN,TRIM4#

main58804-60A30-A1supersedes 58804-60A70-A0iURJ202201202-201601

VX PACKAGE,SHELL,TRIM0#

main58804-60G80-A3iGRJ200,URJ202201601-201602

FLAXEN,TRIM0#

main58804-60G81-A3iGRJ200,URJ202201603

FLAXEN,TRIM0#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-60050-A0iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main58805-60050-E0iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

main58805-60300-A1iGRJ200,URJ202201601

FLAXEN,TRIM0#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60280-E0iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

58844BEZEL, CONSOLE BOX

main84656-60110iGRJ200,UZJ200..5FC..GX200712-201202

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60160-E0iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

main58903-60161-E0iGRJ200,UZJ200201012-201202

DK. BROWN,TRIM4#

sub58903-60909

main58903-60350-A0supersedes 58903-60400-A0iURJ202201202-201601

VX PACKAGE,SHELL,TRIM0#

main58903-60680-A0iGRJ200..GXR201601

FLAXEN,TRIM0#

main58903-60690-A0iGRJ200,URJ202..VX,VXR201601

FLAXEN,TRIM0#

58916MAT, BOX BOTTOM

main58916-60080iUZJ200..VX200712-200905

main58916-60090iUZJ200..VX200905-201202

58941ACOVER, PARKING BRAKE HOLE

main58809-60060-A0iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main58809-60060-E0iGRJ200,UZJ200..5FC..GX200712-201202

DK. BROWN,TRIM4#

main58809-60110-A0iGRJ200,URJ202201601

FLAXEN,TRIM0#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2iGRJ200,URJ202201601

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60090iGRJ200..5F200712-200811

main86719-60310iGRJ200,UZJ200201101-201202

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60070iGRJ200..5F200712-200811

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60080iGRJ200..5F200712-200811

8714

8715

9011908063

main90119-08063

90119C0085

main90119-C0085

90119C0107

main90119-C0107

90159C0022

main90159-C0022

9167380616

main91673-80616

9356054012

main93560-54012

23 parts on this diagram · 2 diagrams in section
