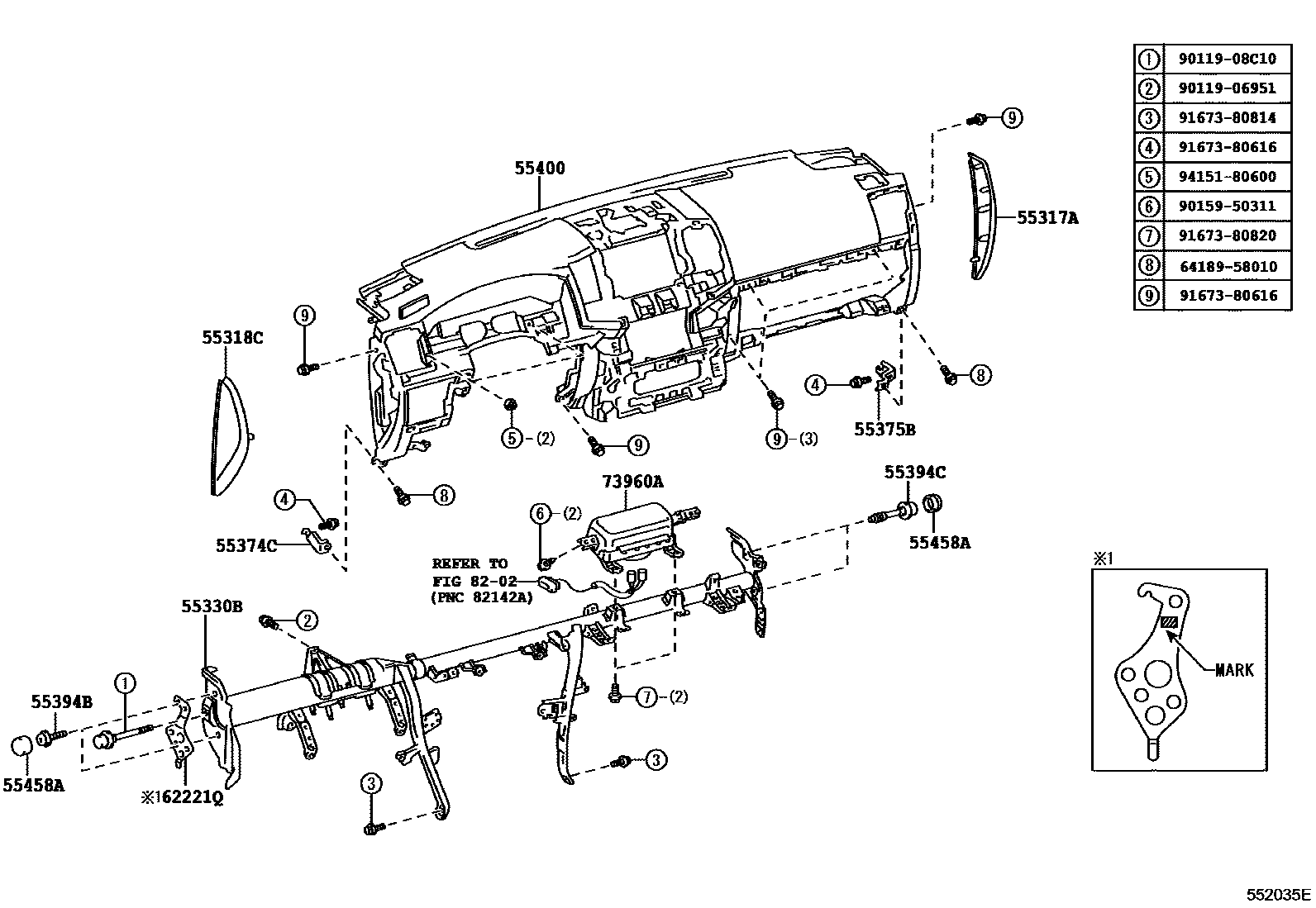

INSTRUMENT PANEL & GLOVE COMPARTMENT
55317APANEL, INSTRUMENT SIDE, RH
55318CPANEL, INSTRUMENT SIDE, LH
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
ORCHID.BROWN,TRIM0#
ORCHID BROWN,TRIM0#
55458ACAP, INSTRUMENT PANEL SAFETY PAD
62221QSPACER, FRONT PILLAR, NO.1 RH
MARK 1L
MARK 2L
MARK 3L
MARK 4L
MARK 5L
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
9011906951
main90119-06951
9011908C10
main90119-08C10
9015950311
main90159-50311
9167380616
main91673-80616
9167380814
main91673-80814
9167380820
main91673-80820
9415180600
main94151-80600
20 parts on this diagram · 7 diagrams in section
