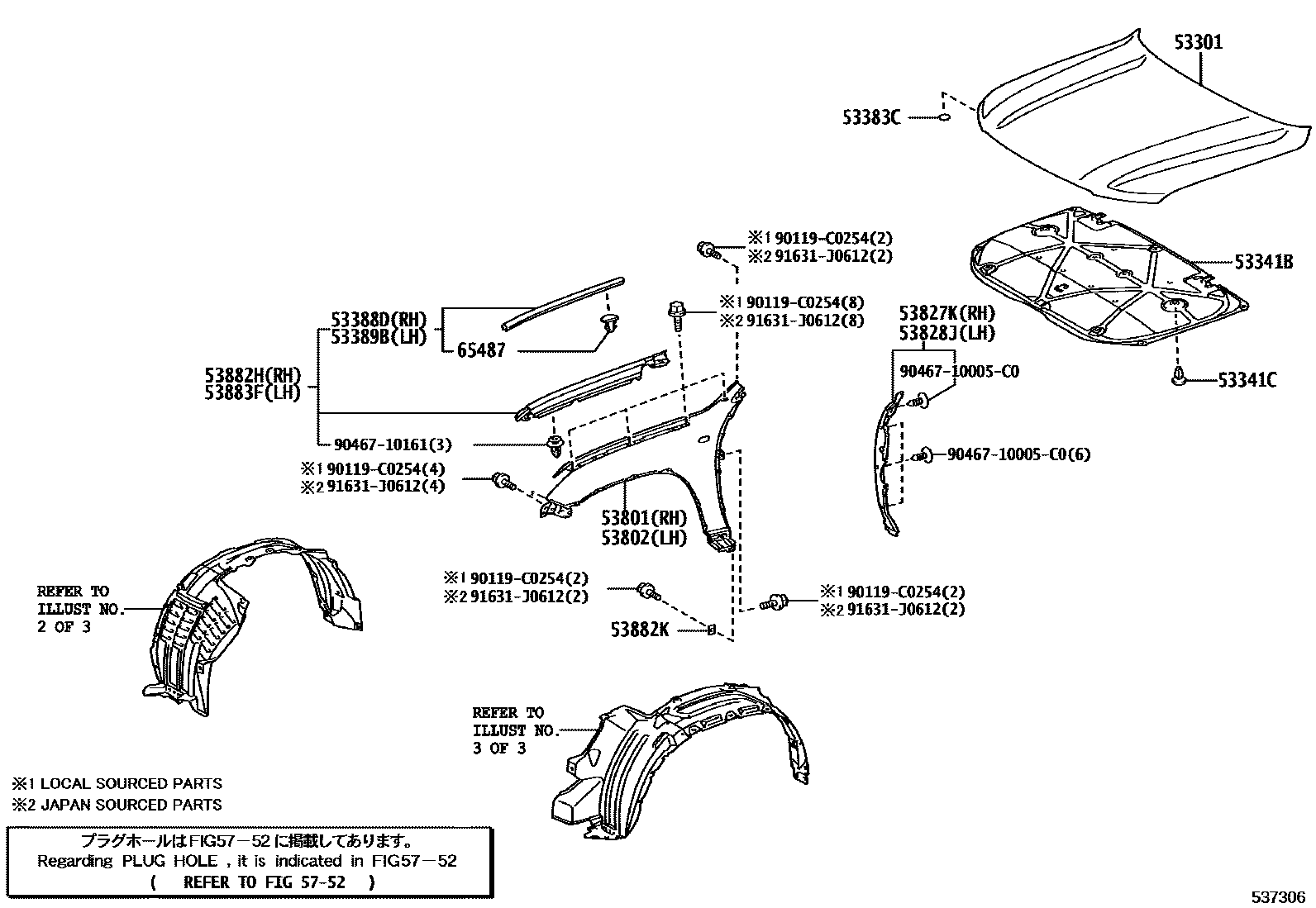

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER RH 0003 1FENDER LINER LH

53301HOOD SUB-ASSY

main53301-60590iGRJ200,UZJ200..5FC200712-201204

main53301-60591iGRJ200,URJ202201205-201601

main53301-60690iGRJ200,URJ202201601

53341BINSULATOR, HOOD

main53341-0G040iGRJ200201202-201601

main53341-0G050iURJ202201202-201601

main53341-0G060iGRJ200201604

(L)

main53341-0G060iGRJ200201601-201604

main53341-0G070iURJ202201604

(L)

main53341-0G070iURJ202201601-201604

main53341-60320iGRJ200..5FC200712-201202

main53341-60340iUZJ200200712-201202

main53341-60380iGRJ200201604

(J)

main53341-60390iURJ202201604

(J)

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGRJ200,URJ202200712-201601

53383CSEAL, HOOD TO COWL TOP

main53397-60010iGRJ200..5F200712-201601

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60020iGRJ200..5F200712-201601

main53388-60060iGRJ200,URJ202201601

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60020iGRJ200,UZJ200..5FC200712-201601

main53389-60080iGRJ200,URJ202201601

53801FENDER SUB-ASSY, FRONT RH

main53801-60B80iGRJ200..5F200712-201202

main53801-60B90iGRJ200,URJ202201202-201601

main53801-60D50iGRJ200,URJ202201601

53802FENDER SUB-ASSY, FRONT LH

main53802-60B50iGRJ200..5F200712-201202

main53802-60B60iGRJ200,URJ202201202-201601

main53802-60D60iGRJ200,URJ202201601

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0G030iGRJ200,URJ202201601

main53827-60020iGRJ200..5F200712-201601

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0G030iGRJ200,URJ202201601

main53828-60040iGRJ200..5F200712-201601

53882HSEAL, FRONT FENDER MAIN, RH

main53805-60020iGRJ200..5F200712-201109

main53805-60021iGRJ200,UZJ200201110-201601

main53805-60090iGRJ200,URJ202201601

53882KSEAL, FRONT FENDER

main53882-16030iGRJ200..5F200712-201601

53883FSEAL, FRONT FENDER MAIN, LH

main53806-60020iGRJ200..5F200712-201601

main53806-60080iGRJ200,URJ202201601

5752HOLE PLUG

→ Go to FIG 57-52

65487CLIP, CORNER PROTECTOR

main65487-60010iGRJ200..5F200712-201601

90119C0254

main90119-C0254

9046710005C0

main90467-10005C0

9046710161

main90467-10161

91631J0612

main91631-J0612

19 parts on this diagram · 3 diagrams in section
