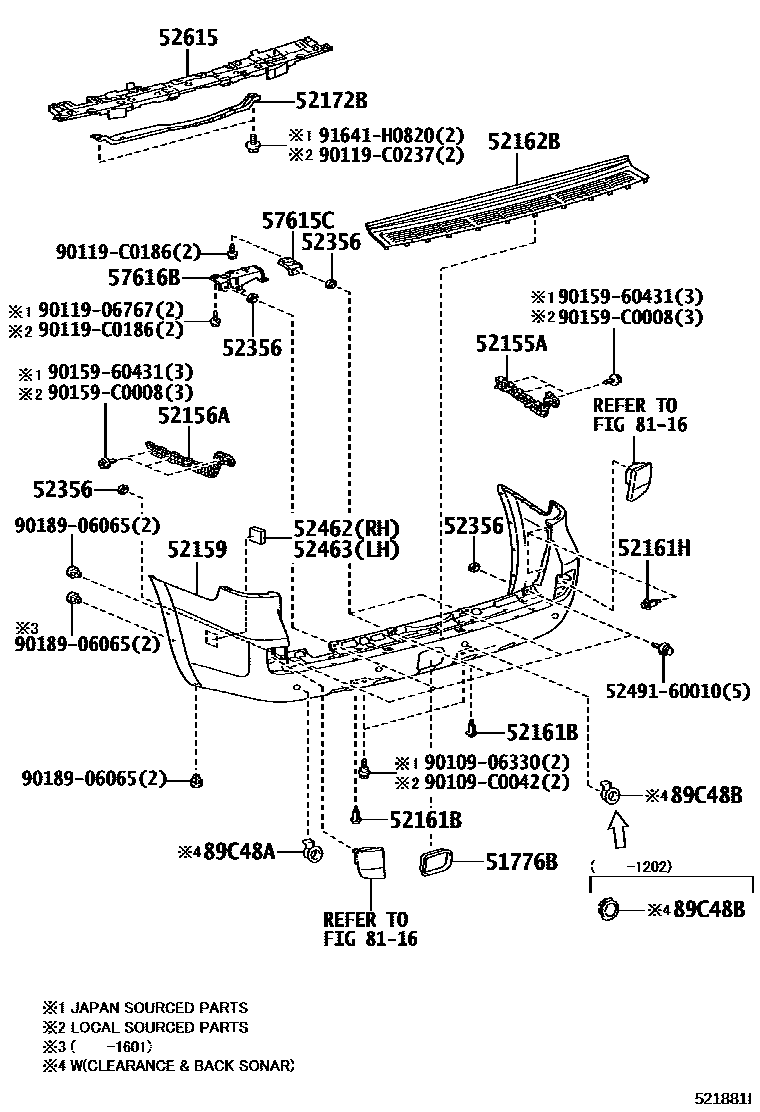

REAR BUMPER & BUMPER STAY

51776BCOVER, REAR STEP, NO.2

main51775-60100iGRJ200,UZJ200..5FC200712-201202

main51775-60130iGRJ200,URJ202201601

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60070iGRJ200..5F200712-200811

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60070iGRJ200,URJ202201601

52159COVER, REAR BUMPER

main52159-60957iGRJ200..5F200712-200811

PAINT REQ.

main52159-60959iUZJ200..VX200712-201202

PAINT REQ.

main52159-60982iURJ202201202-201601

PAINT REQ.

main52159-6A926iURJ202201601

PAINT REQ.

main52159-6A927iGRJ200201601

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040×2iGRJ200,URJ202201601

main52161-16010×2iGRJ200..5F200712-200811

52161HPIECE, REAR BUMPER

main52161-02040×4iGRJ200,URJ202201601

main52161-16010×4iGRJ200,UZJ200..5FC200712-201202

52162BPLATE, REAR BUMPER, NO.1

main52162-60040iGRJ200,URJ202201601

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-60050iGRJ200..5F200712-200811

52356CUSHION, REAR BUMPER STEP

main52356-0G010×5iGRJ200,URJ202201601

main52356-60050×5iGRJ200..5F200712-200811

52462PAD, REAR BUMPER, RH

main52462-60040iGRJ200..5F200712-200811

main52462-60100iGRJ200,URJ202201601

52463PAD, REAR BUMPER, LH

main52462-60040iGRJ200..5F200712-200811

main52462-60100iGRJ200,URJ202201601

52615ABSORBER, REAR BUMPER ENERGY

main52615-60030iGRJ200..5F200712-200811

main52615-60080iGRJ200,URJ202201202-201501

main52615-60081iGRJ200,URJ202201502-201601

57615CBRACKET, REAR BUMPER ARM

main58357-60020×2iGRJ200..5F200712-200811

57616BBRACKET, REAR BUMPER ARM

main58356-60010iGRJ200..5F200712-200811

main58356-60030iGRJ200,URJ202201601

8116REAR FOG LAMP

→ Go to FIG 81-16

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33060-A4×2iURJ202201202-201601

WHITE,056

main89348-33060-C0×2iURJ202201202-201601

BLACK,202

main89348-33060-G4×2iURJ202201202-201601

DARK GREEN MC.,6R4

main89348-33040-A4×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,WHITE,056

main89348-33040-C0×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,BLACK,202

main89348-33040-G4×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,DARK GREEN MC.,6R4

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-71010-A3×2iURJ202201202-201601

WHITE,056

main89348-71010-C0×2iURJ202201202-201601

BLACK,202

main89348-71010-G3×2iURJ202201202-201601

DARK GREEN MC.,6R4

main89348-28090-A3×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,WHITE,056

main89348-28090-C0×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,BLACK,202

main89348-28090-G1×2iUZJ200..VX200911-201202

VX(SPECIAL) PACKAGE,DARK GREEN MC.,6R4

5249160010BOLT, BUMPER PAD

main52491-60010

9010906330

main90109-06330

90109C0042

main90109-C0042

9011906767

main90119-06767

90119C0186

main90119-C0186

90119C0237

main90119-C0237

9015960431

main90159-60431

90159C0008

main90159-C0008

9018906065

main90189-06065

91641H0820

main91641-H0820

27 parts on this diagram · 1 diagram in section
