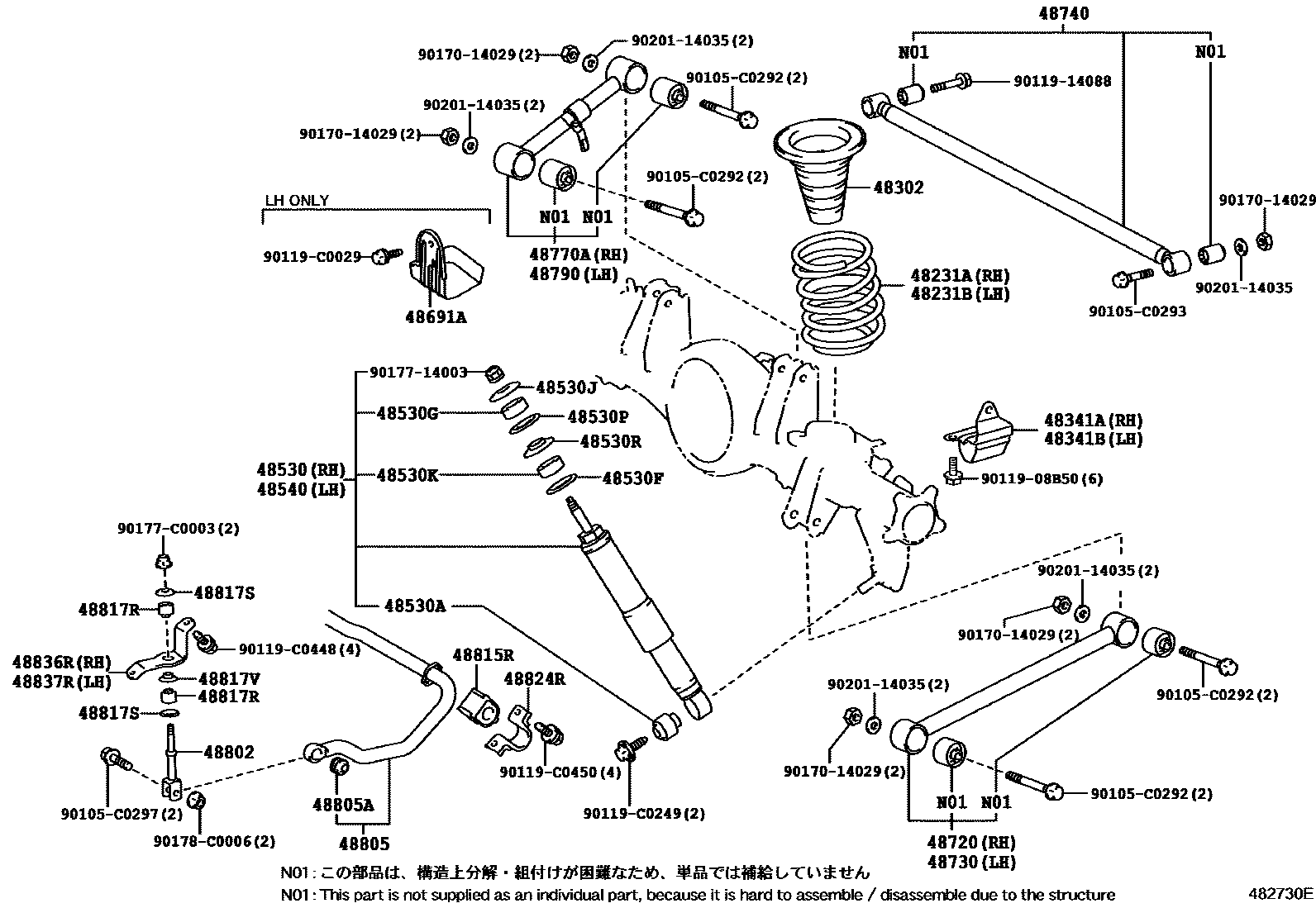

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48302SPRING SUB-ASSY, HOLLOW
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60150
MARK 48530-60160
MARK 48530-60160,VX PACKAGE
MARK 48530-60390
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530RRETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60150
MARK 48530-60160,VX PACKAGE
MARK 48530-60160
MARK 48530-60390
48691AINSULATOR, UPPER ARM BUSH, HEAT
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
VX PACKAGE
48805BAR SUB-ASSY, REAR STABILIZER
VX PACKAGE
48805ABUSH(FOR REAR STABILIZER BAR)
VX PACKAGE
48815RBUSH, STABILIZER(FOR REAR)
VX PACKAGE
VX PACKAGE
48817RCUSHION, STABILIZER(FOR REAR)
VX PACKAGE
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
VX PACKAGE
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
VX PACKAGE
48824RBRACKET, STABILIZER(FOR REAR)
VX PACKAGE
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
90105C0292
main90105-C0292
90105C0293
main90105-C0293
90105C0297
main90105-C0297
9011908B50
main90119-08B50
9011914088
main90119-14088
90119C0029
main90119-C0029
90119C0249
main90119-C0249
90119C0448
main90119-C0448
90119C0450
main90119-C0450
9017014029
main90170-14029
9017714003
main90177-14003
90177C0003
main90177-C0003
90178C0006
main90178-C0006
9020114035
main90201-14035
44 parts on this diagram · 3 diagrams in section
