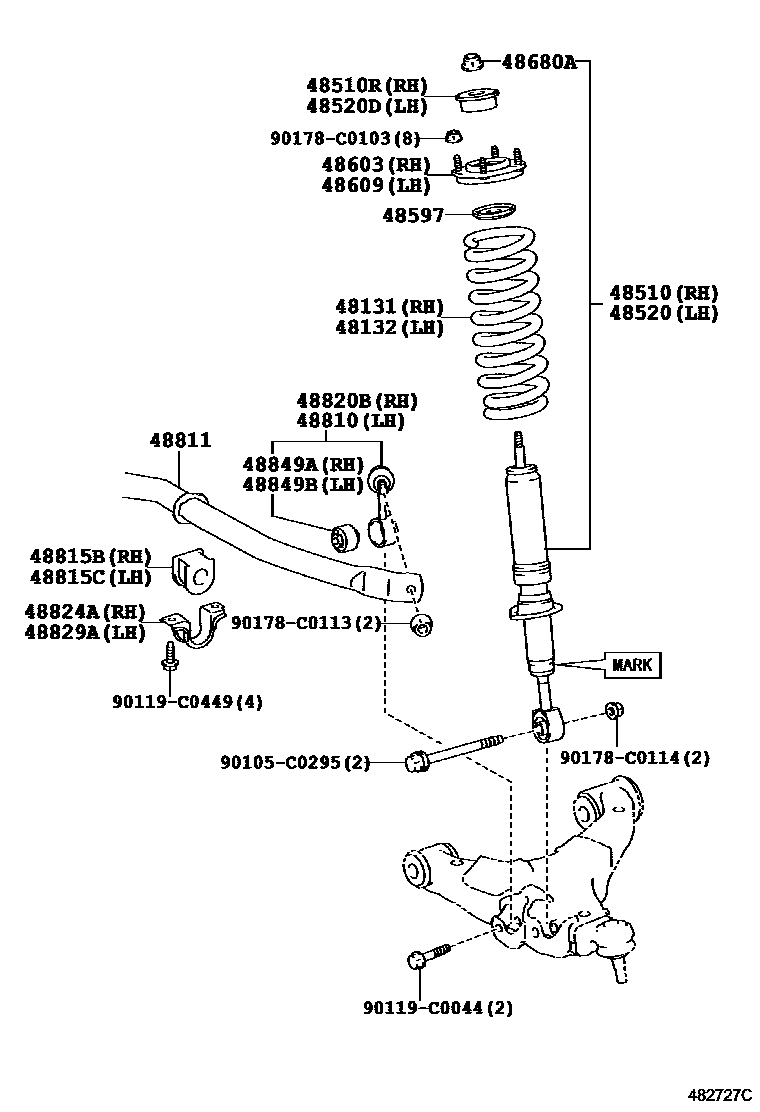

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1KDSS 0004 1KDSS

48131SPRING, FRONT COIL, RH

main48131-60C81iGRJ200..VX,VXR201601

main48131-60C90supersedes 48131-60D00iGRJ200..GXR201601

main48131-60D00iGRJ200..5F200712-200811

main48131-60D20iUZJ200..VX200712-201001

main48131-60D21iURJ202201202-201601

main48131-60D50iUZJ200..GX200712-201202

48132SPRING, FRONT COIL, LH

main48131-60C50iGRJ200..VX,VXR201601

main48131-60C80iUZJ200..VX200712-201001

main48131-60C81iUZJ200..VX201002-201202

main48131-60C90supersedes 48131-60D00iGRJ200..GXR201601

main48131-60D00iGRJ200..5F200712-200811

main48131-60D50iUZJ200..GX200712-201202

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69365iUZJ200..GX200712-201202

MARK 48510-60150

main48510-69405iGRJ200..5F200712-200811

MARK 48510-60180

main48510-80823iGRJ200,URJ202201601

MARK 48510-60240

48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH

main90948-01096iGRJ200,URJ202201202-201601

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69365iUZJ200..GX200712-201202

MARK 48510-60150

main48510-69405iGRJ200..5F200712-200811

MARK 48510-60180

main48510-80823iGRJ200,URJ202201601

MARK 48510-60240

48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH

main90948-01096iGRJ200,URJ202201601

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60120×2iGRJ200..5F200712-200811

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60070iGRJ200..5F200712-200811

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60070iGRJ200..5F200712-200811

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-C0023×2iGRJ200,URJ202201409-201601

main94188-01401×2iGRJ200,URJ202201202-201409

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60050iGRJ200..5F200712-200811

main48810-60051iGRJ200..GXR201601

main48810-60060supersedes 48810-60051iUZJ200..VX200712-201202

48811BAR, STABILIZER, FRONT

main48804-60120supersedes 48811-60290iUZJ200..VX200712-201202

main48811-60290iGRJ200..GXR201601

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60260×2iGRJ200; URJ202201202-201601

VX PACKAGE

48815BBUSH, FRONT STABILIZER LOWER BRACKET, RH

main48815-60250iGRJ200,UZJ200..5FC..GX200712-201202

48815CBUSH, FRONT STABILIZER LOWER BRACKET, LH

main48815-60250iGRJ200..5F200712-200811

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60070iGRJ200..5F200712-200811

main48820-60071iGRJ200,UZJ200..GX200908-201202

main48820-60080iUZJ200..VX200712-200908

main48820-60081iUZJ200..VX200909-201202

main48820-60082supersedes 48820-60071iGRJ200; URJ202201401-201601

VX PACKAGE

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60170iGRJ200..5F200712-200811

main48824-60180supersedes 48824-60170iGRJ200; URJ202201202-201601

VX PACKAGE

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-60170iGRJ200..5F200712-200811

main48824-60180supersedes 48824-60170iGRJ200,URJ202..VX,VXR201601

48849ABUSH, FRONT STABILIZER LINK, RH

main48849-60110iGRJ200..GXR201601

main48849-60120supersedes 48849-60110iGRJ200; URJ202201202-201601

VX PACKAGE

48849BBUSH, FRONT STABILIZER LINK, LH

main48849-60110iGRJ200201202-201601

90105C0295

main90105-C0295

90119C0044

main90119-C0044

90119C0449

main90119-C0449

90178C0103

main90178-C0103

90178C0113

main90178-C0113

90178C0114

main90178-C0114

26 parts on this diagram · 3 diagrams in section
