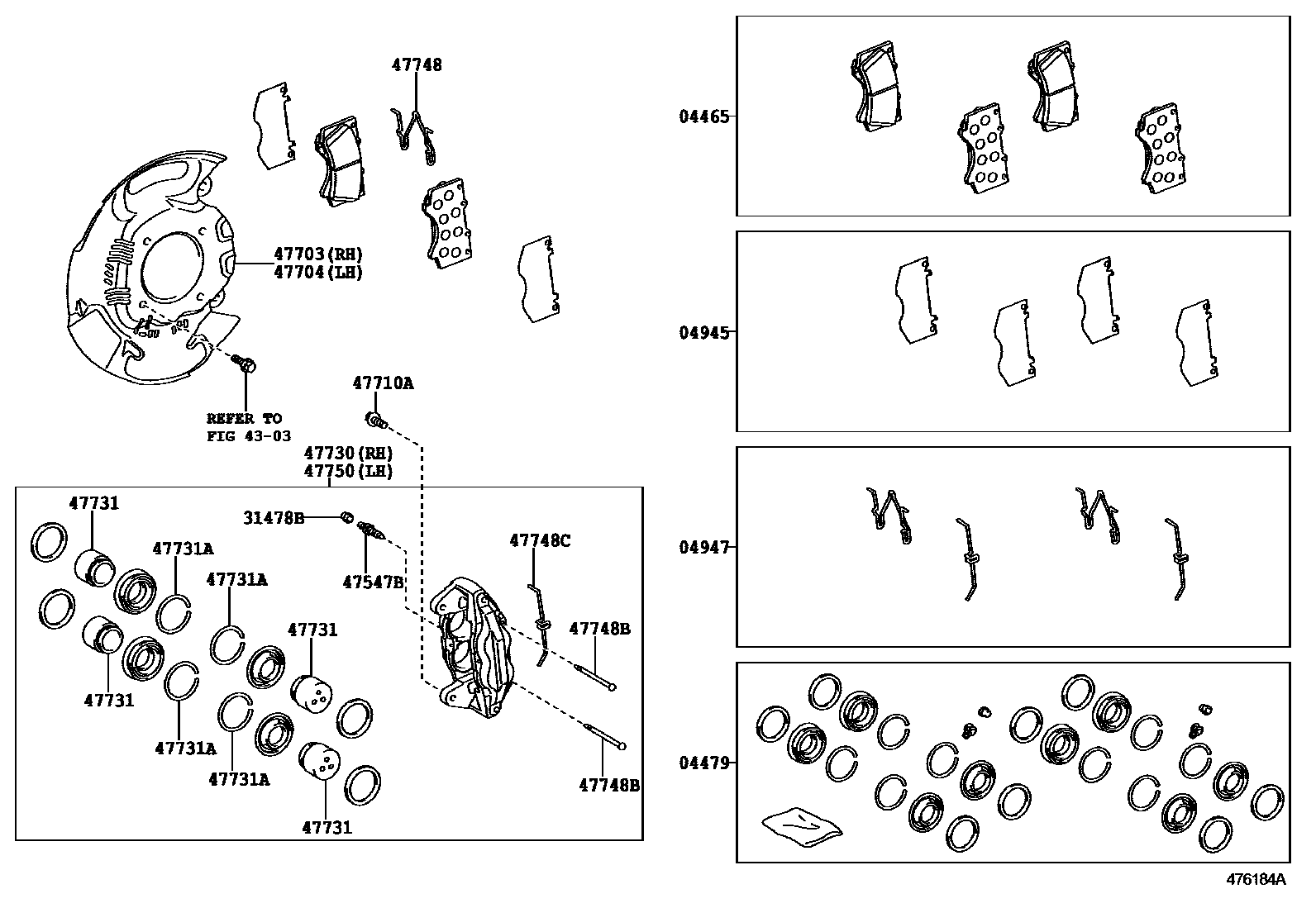

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60280iGRJ200,UZJ200..5FC200712-201202

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iGRJ200,UZJ200..5FC200712-201202

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60080iGRJ200..5F200712-200811

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60140iGRJ200..5F200712-200811

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGRJ200,URJ202201601

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iGRJ200,UZJ200..5FC200712-201202

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-60090iGRJ200..GXR,VX201601-201612

main47703-60100iURJ202;GRJ200..VXR201601-201612

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-60090iGRJ200..5F200712-200811

main47704-60100iURJ202;GRJ200..VXR201601-201612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14198×4iGRJ200,URJ202201601-201612

*14-1.5PX35-30.5

main91672-L1240×4iGRJ200..5F200712-200811

*12-1.25PX40-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60280iGRJ200..5F200712-200811

main47730-60320iURJ202;GRJ200..VXR201601

main47730-60340iGRJ200..GXR,VX201601

47731PISTON, FRONT DISC BRAKE

main47731-60280×8iGRJ200..5F200712-200811

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-56003×8iGRJ200..5F200712-200811

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60280×2iGRJ200..5F200712-200811

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iGRJ200..5F200712-200811

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-60280×2iGRJ200..5F200712-200811

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60280iGRJ200..5F200712-200811

main47750-60320iURJ202;GRJ200..VXR201601

main47750-60340iGRJ200..GXR,VX201601

17 parts on this diagram · 1 diagram in section
