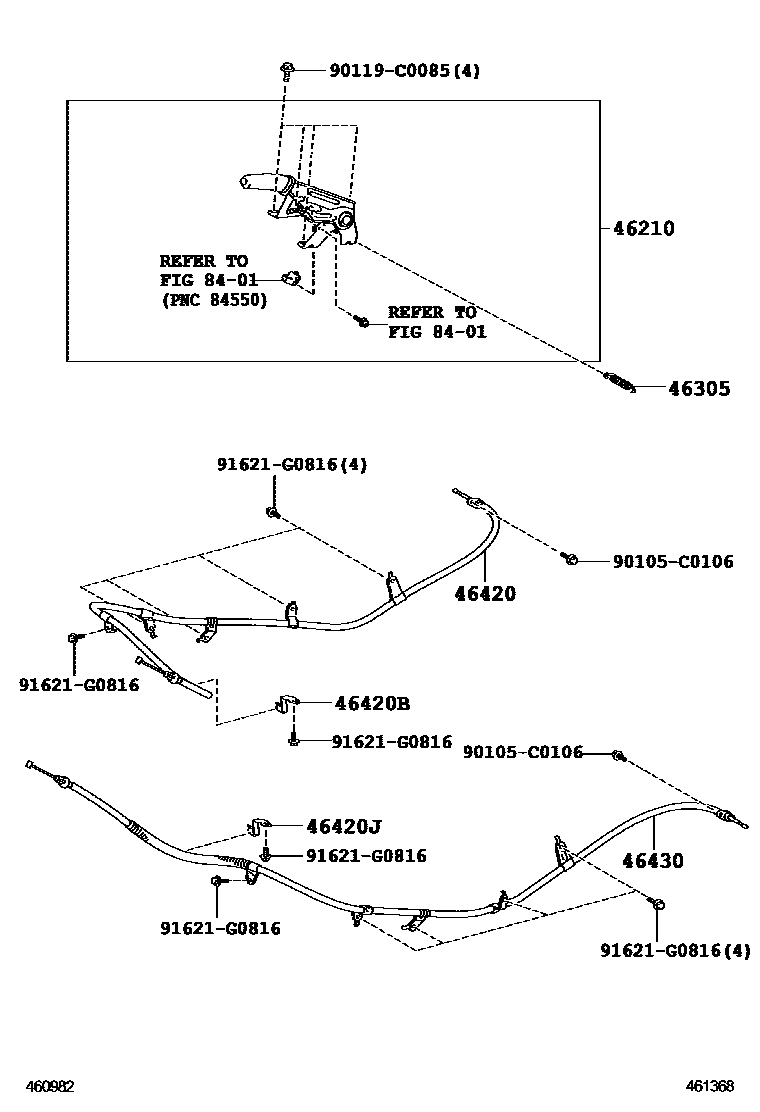

PARKING BRAKE & CABLE

0001 1 0002 1

46210LEVER ASSY, PARKING BRAKE

main46210-60300-E0iGRJ200..5F200712-200811

DK. BROWN,TRIM4#

main46210-60300-E1iGRJ200,URJ202201202-201601

ORCHID BROWN,TRIM0#

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-60010iGRJ200,URJ202201601

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0G020iGRJ200,URJ202201202-201601

main46420-60090iGRJ200..5F200712-200811

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-60050iGRJ200..5F200712-200811

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46431-60050iGRJ200..5F200712-200811

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0G010iGRJ200,URJ202201601

main46430-60030iGRJ200..5F200712-200811

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0106

main90105-C0106

90119C0085

main90119-C0085

91621G0816

main91621-G0816

10 parts on this diagram · 2 diagrams in section
