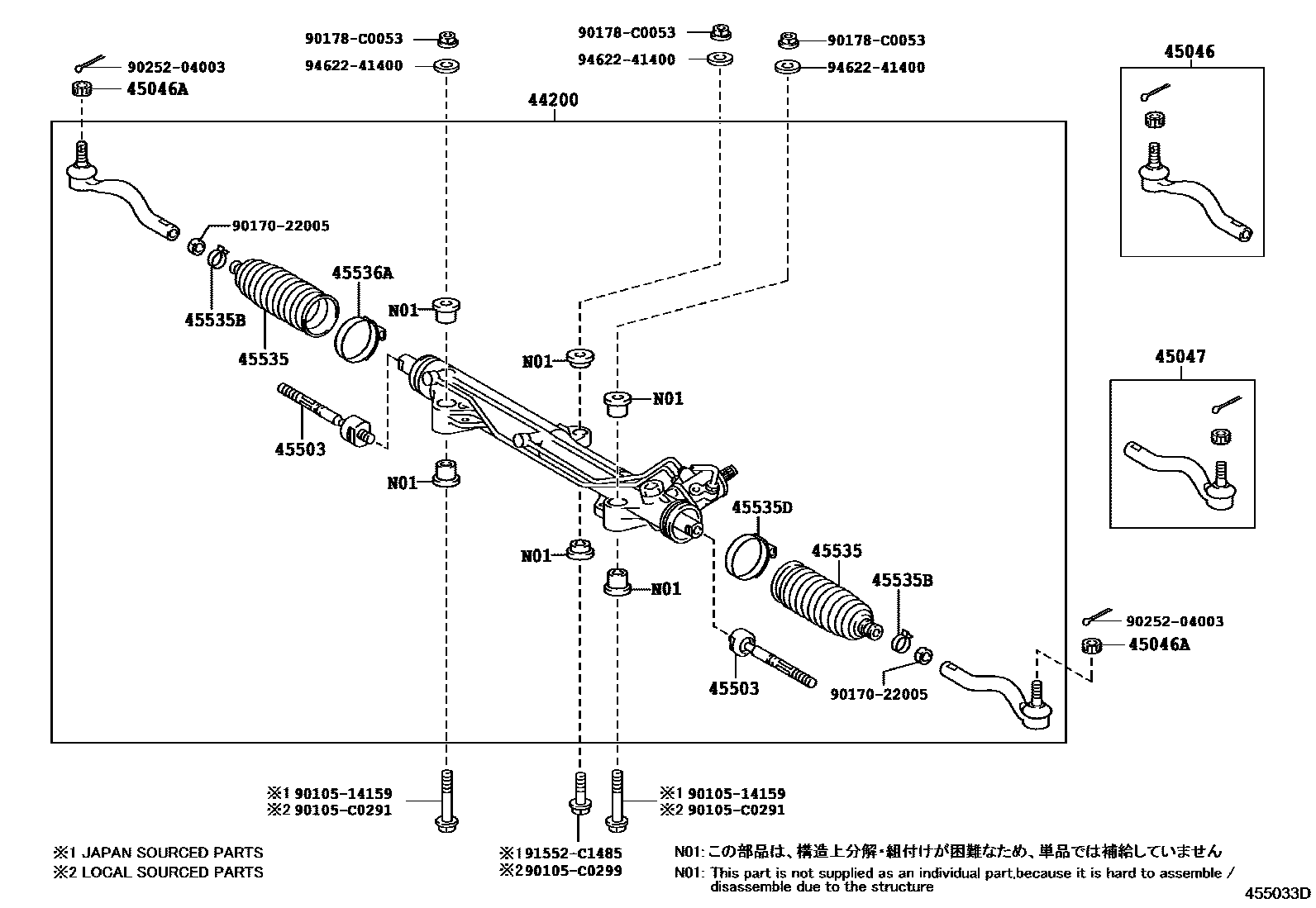

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-60170iGRJ200..5F200712-200811

45046END SUB-ASSY, TIE ROD, RH

main45046-69235iGRJ200..5F200712-200811

main45046-69236iGRJ200,URJ202201207-201601

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16009×2iGRJ200..5F200712-200811

main90171-C0008×2iGRJ200,URJ202201409-201601

45047END SUB-ASSY, TIE ROD, LH

main45047-69145iGRJ200..5F200712-200811

main45047-69146iGRJ200,URJ202201207-201601

45503END SUB-ASSY, STEERING RACK

main45503-60030×2iGRJ200..5F200712-200811

45535BOOT, STEERING RACK, NO.1

main45535-60020×2iGRJ200..5F200712-200811

main45535-60021×2iGRJ200,URJ202201501-201601

45535BCLIP(FOR STEERING RACK BOOT)

main96134-52600×2iGRJ200..5F200712-200811

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-76001iGRJ200..5F200712-200811

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-76001iGRJ200..5F200712-200811

9010514159

main90105-14159

90105C0291

main90105-C0291

90105C0299

main90105-C0299

9017022005

main90170-22005

90178C0053

main90178-C0053

9025204003

main90252-04003

91552C1485

main91552-C1485

9462241400

main94622-41400

17 parts on this diagram · 1 diagram in section
