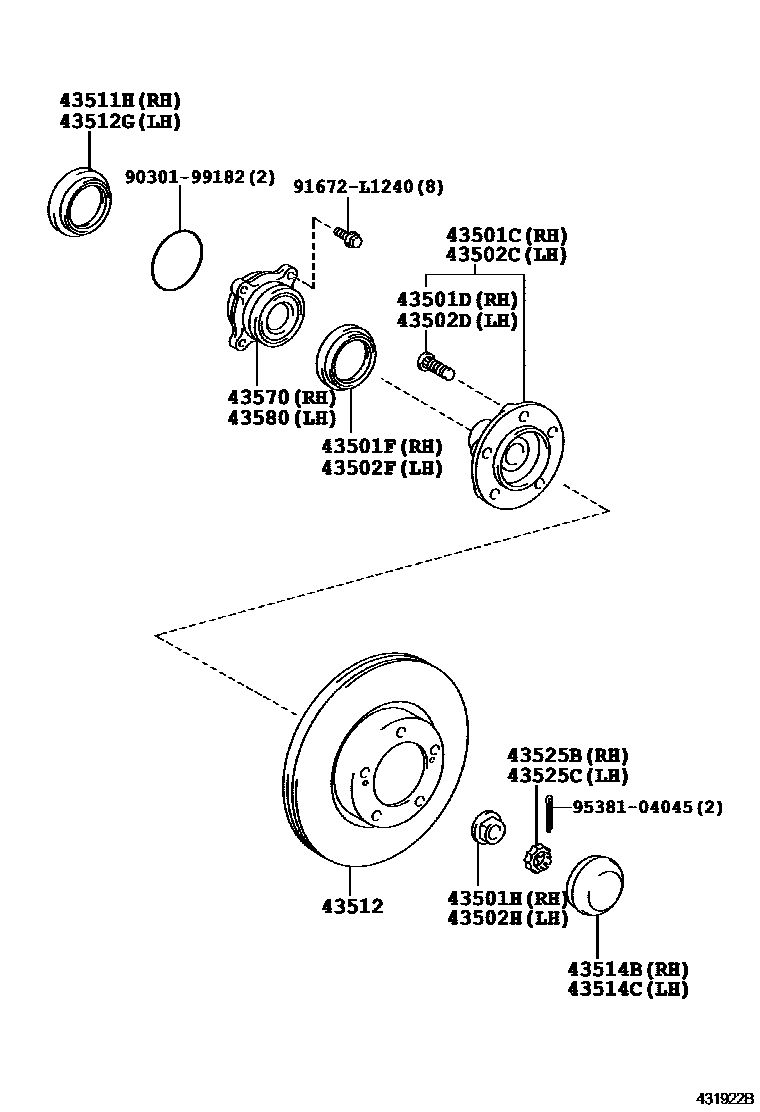

FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)
43512DISC, FRONT
43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH
43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH
9030199182
main90301-99182
91672L1240
main91672-L1240
9538104045
main95381-04045
20 parts on this diagram · 1 diagram in section
