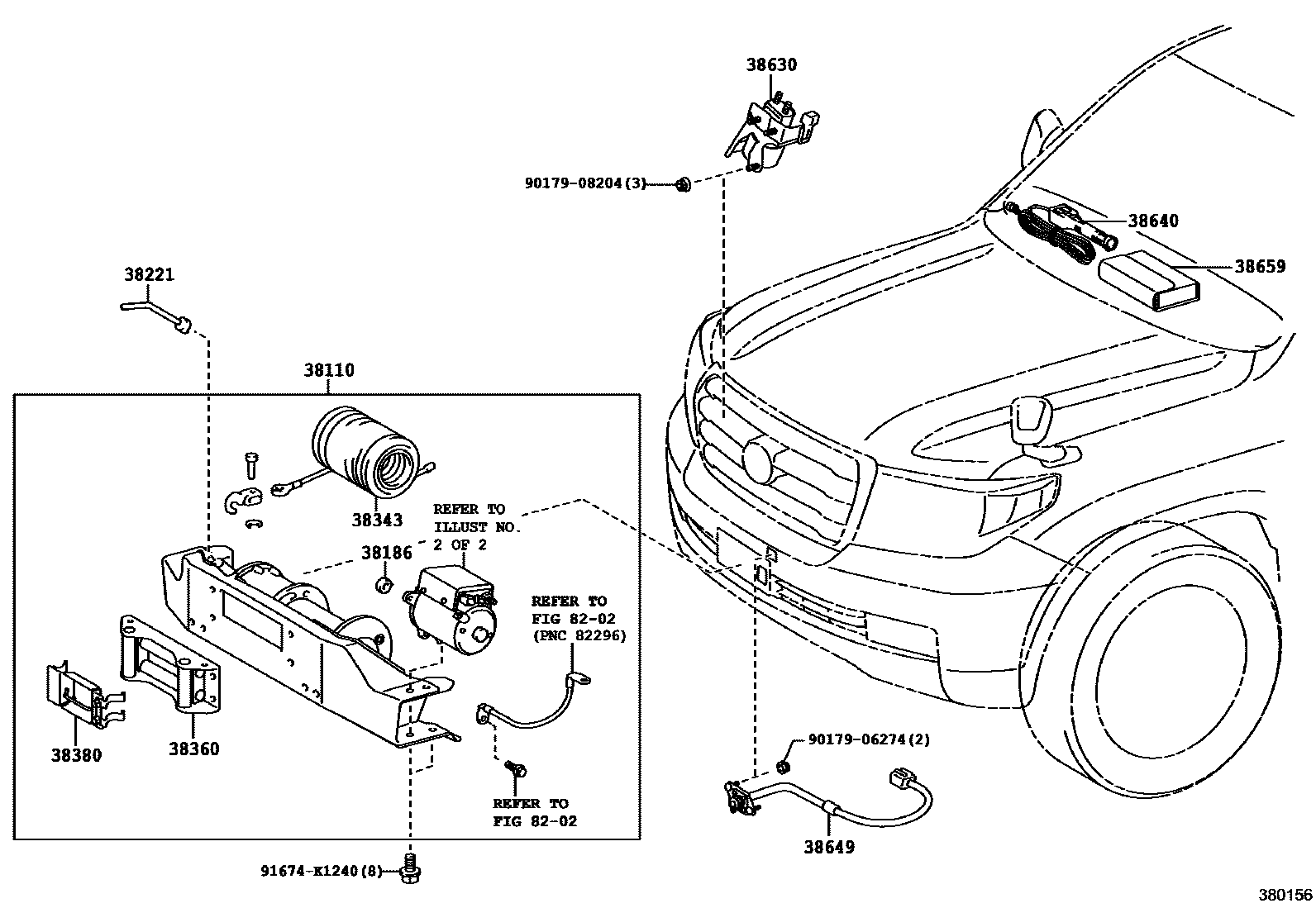

WINCH

0001 1 0002 1

38110WINCH ASSY

main38110-60290iGRJ200..5F200712-200811

main38110-60290iGRJ200,UZJ200..5FC..GX200712-201111

VX(SPECIAL) PACKAGE

main38110-60291iGRJ200,UZJ200..GX201112-201202

VX(SPECIAL) PACKAGE

38186SEAL, GEAR CASE COVER OIL

main38186-60170iGRJ200..5F200712-200811

main38186-60170iGRJ200,UZJ200..5FC..GX200712-201202

VX(SPECIAL) PACKAGE

38221LEVER, CLUTCH HUB SHIFT

main38221-60240iGRJ200..5F200712-200811

38343WINCH WIRE

main38343-60171iGRJ200..5F200712-200811

main38343-60171iGRJ200,UZJ200..5FC..GX200712-201202

VX(SPECIAL) PACKAGE

38360BRACKET ASSY, WINCH ROLLER

main38360-60083iGRJ200..5F200712-200811

main38360-60083iGRJ200,UZJ200..5FC..GX200712-201202

VX(SPECIAL) PACKAGE

38380HOLDER ASSY, WINCH HOOK

main38380-60022iGRJ200..5F200712-200811

main38380-60022iGRJ200,UZJ200..5FC..GX200712-201202

VX(SPECIAL) PACKAGE

38630SWITCH ASSY, MAGNET, NO.1

main38630-60190iGRJ200..5F200712-200811

main38630-60190iGRJ200,UZJ200..5FC..GX200712-201111

VX(SPECIAL) PACKAGE

main38630-60191iGRJ200,UZJ200..GX201112-201202

VX(SPECIAL) PACKAGE

38640SWITCH ASSY, WINCH CONTROL

main38640-60030iGRJ200..5F200712-200811

38649WIRE, WINCH CONTROL

main38649-60070iGRJ200..5F200712-200811

main38649-60070iGRJ200,UZJ200..5FC..GX200712-201112

VX(SPECIAL) PACKAGE

main38649-60071iGRJ200,UZJ200..GX201201-201202

VX(SPECIAL) PACKAGE

38659COVER, WINCH CONTROL SWITCH

main38659-60010iGRJ200..5F200712-200811

8202WIRING & CLAMP

→ Go to FIG 82-02

9017906274

main90179-06274

9017908204

main90179-08204

91674K1240

main91674-K1240

14 parts on this diagram · 2 diagrams in section
