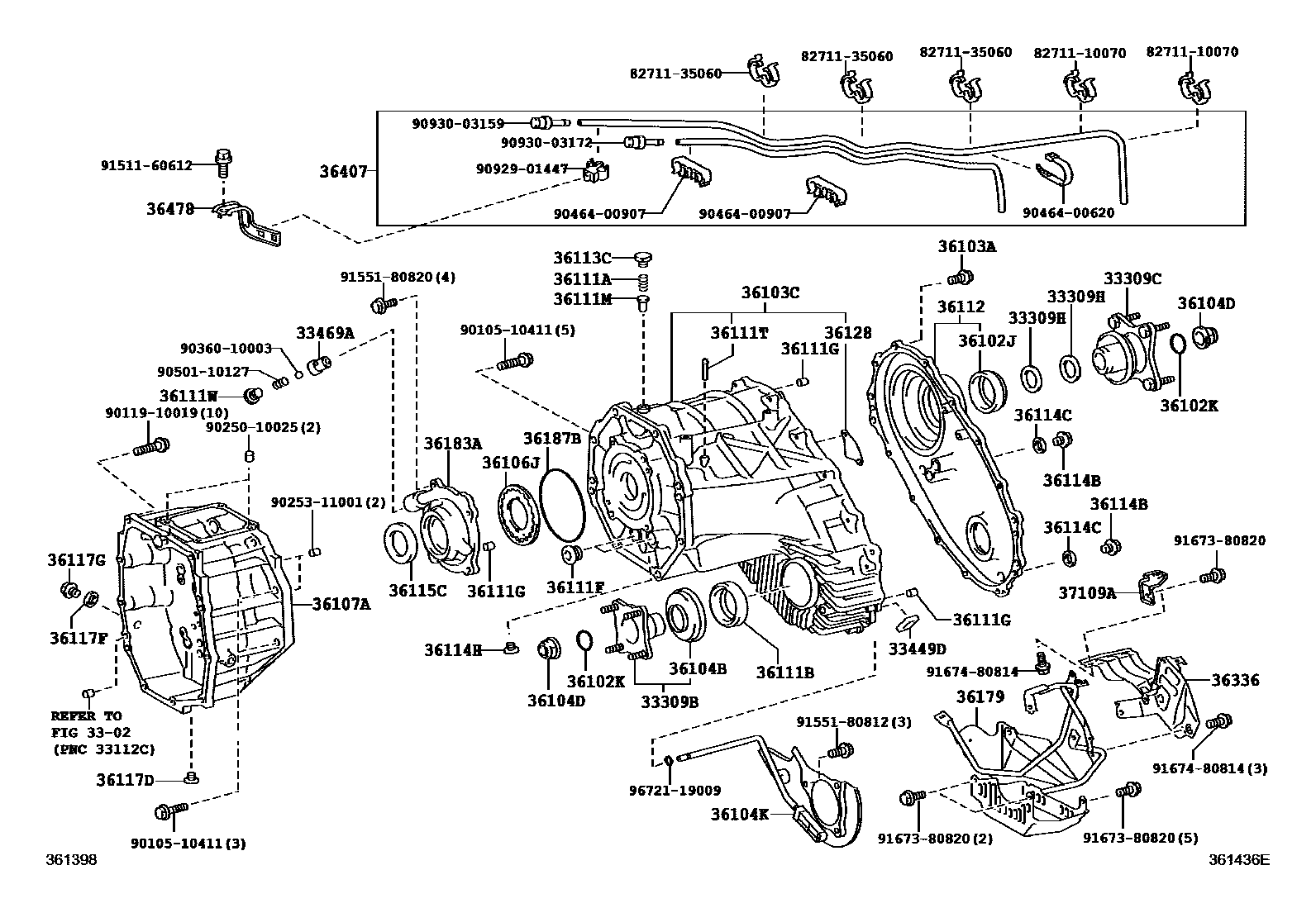

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1

3302

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34020iGRJ200..5F200712-201202

main33309-34020iGRJ200,URJ202201202-201502

PNC 36111B=TYPE A

main33309-34030iGRJ200,URJ202201502-201601

PNC 36111B=TYPE B

sub33309-34031

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60110iGRJ200..5F200712-201601

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iGRJ200..5F200712-201601

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iGRJ200..5F200712-201601

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iGRJ200,UZJ200..5FC200712-201601

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iGRJ200..5F200712-201601

sub90311-50065

36102KRING, O

main90301-31003iGRJ200..5F200712-201601

36103ABOLT (FOR TRANSFER CASE)

main91551-00845iGRJ200..5F200712-201601

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60360iGRJ200..5F200712-201601

sub36103-60H10

sub36103-60H20

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iGRJ200..5F200712-201202

main33325-34020iGRJ200,URJ202201202-201502

PNC 36111B=TYPE A

main33325-34030iGRJ200,URJ202201502-201601

PNC 36111B=TYPE B

sub33325-34031

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011iGRJ200..5F200712-201601

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iGRJ200..5F200712-201601

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iGRJ200..5F200712-201601

36107AADAPTER SUB-ASSY, TRANSFER

main36107-60090iGRJ200..5F200712-200811

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGRJ200..5F200712-201601

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iGRJ200..5F200712-201202

main90311-50039iGRJ200,URJ202201202-201502

TYPE A:REFER ILLUST.

main90311-50055iGRJ200,URJ202201502-201601

TYPE B:REFER ILLUST.

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iGRJ200,UZJ200..5FC200712-201601

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRJ200..5F200712-201601

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iGRJ200..5F200712-201601

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRJ200..5F200712-201601

sub90406-T0007

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iGRJ200..5F200712-201601

36112CASE, TRANSFER, REAR

main36104-60051iGRJ200..5F200712-201011

sub36103-60H20

main36104-60052iGRJ200,UZJ200201011-201601

sub36103-60H10

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iGRJ200..5F200712-201601

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGRJ200..5F200712-201601

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGRJ200..5F200712-201601

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iGRJ200..5F200712-201601

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iGRJ200,URJ202200712-201601

36117DPLUG(FOR TRANSFER ADAPTER)

main90341-12008iGRJ200..5F200712-200811

36117FGASKET(FOR TRANSFER ADAPTER PLUG)

main90430-18008iGRJ200..5F200712-200811

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-18006iGRJ200..5F200712-200811

36128DEFLECTOR, BREATHER OIL

main36128-34010iGRJ200,URJ202200712-201601

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60010iGRJ200..5F200712-201601

36183APLATE, TRANSFER OIL PUMP

main36183-34011iGRJ200..5F200712-201601

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iGRJ200,URJ202200712-201601

36336INSULATOR, TRANSFER HEAT

main36336-60030iGRJ200..5F200712-201601

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60160iGRJ200..5FC200712-201601

main36407-60170iGRJ200..5F200712-200811

main36407-60180iUZJ200200712-201202

main36407-60290iURJ202201202-201601

main36407-60360iGRJ200201601

36478BRACKET, TRANSFER BREATHER

main36478-60030iGRJ200..5F200712-200811

main36478-60040iUZJ200200712-201202

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60080iGRJ200..5F200712-201601

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9010510411

main90105-10411

9011910019

main90119-10019

9025010025

main90250-10025

9025311001

main90253-11001

9036010003

main90360-10003

9046400620

main90464-00620

9046400907

main90464-00907

9050110127

main90501-10127

9092901447

main90929-01447

9093003159

main90930-03159

9093003172

main90930-03172

9151160612

main91511-60612

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9167480814

main91674-80814

9672119009

main96721-19009

58 parts on this diagram · 4 diagrams in section
