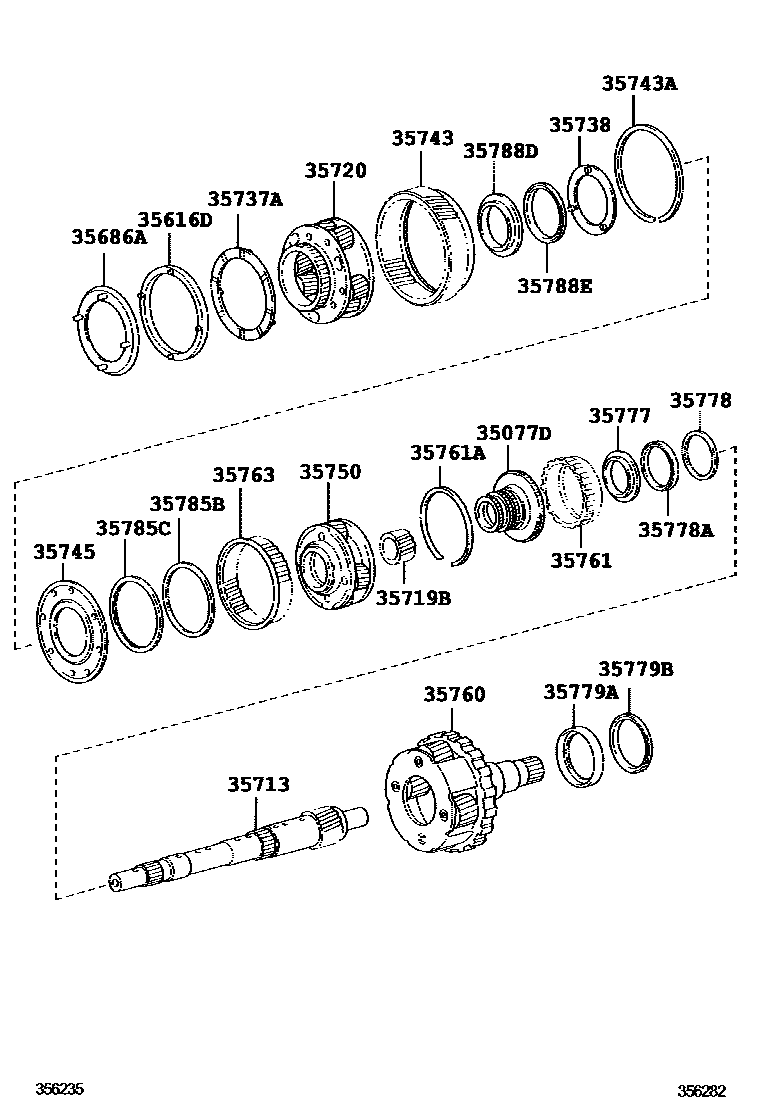

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35616DWASHER, CLUTCH DRUM THRUST
35713SHAFT, INTERMEDIATE
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35763GEAR, CENTER PLANETARY RING
35778ABEARING, THRUST NEEDLE ROLLER
35779BBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
25 parts on this diagram · 2 diagrams in section
