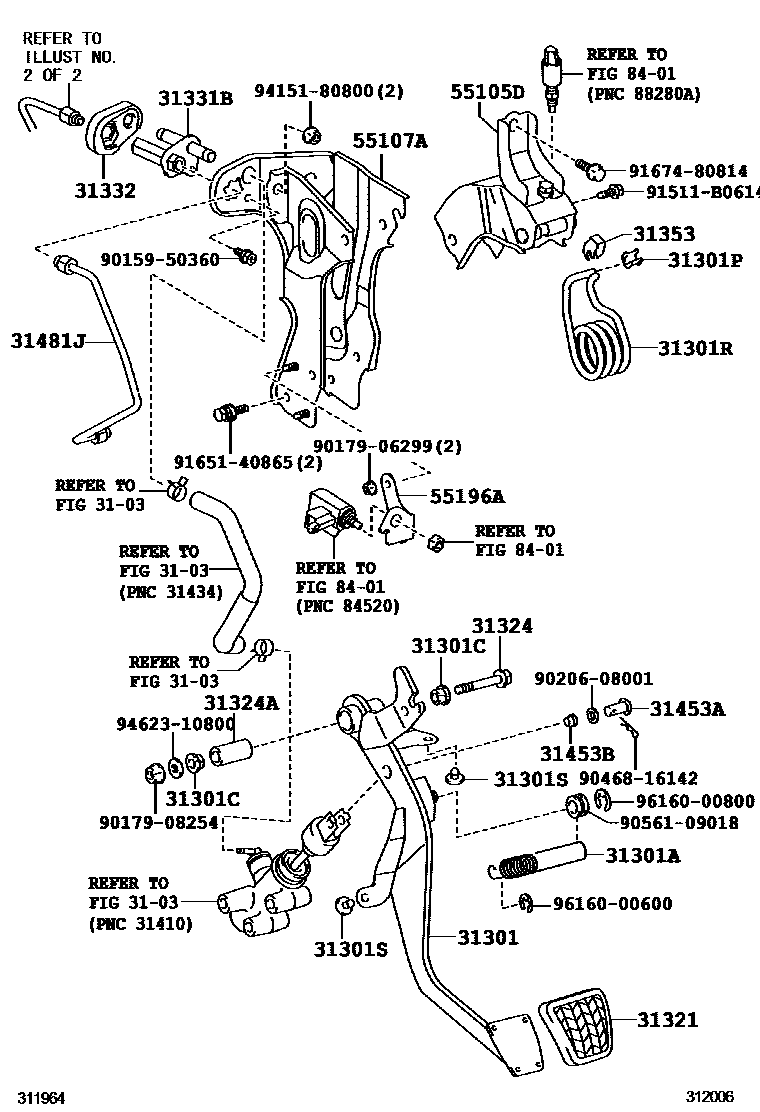

CLUTCH PEDAL & FLEXIBLE HOSE
3103CLUTCH MASTER CYLINDER
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)
31301SCUSHION, NO.2(FOR CLUTCH PEDAL)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31331BWAY, CLUTCH PEDAL SUPPORT
31332GROMMET, CLUTCH PEDAL SUPPORT
31353HOLDER, CLUTCH PEDAL SPRING
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=23.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY
55105DBRACKET SUB-ASSY, CLUTCH PEDAL
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
55196ABRACKET, CLUTCH START SWITCH MOUNTING
8401SWITCH & RELAY & COMPUTER
9015950360
main90159-50360
9017906299
main90179-06299
9017908254
main90179-08254
9020608001
main90206-08001
9046816142
main90468-16142
9056109018
main90561-09018
91511B0614
main91511-B0614
9165140865
main91651-40865
9167480814
main91674-80814
9415180800
main94151-80800
9462310800
main94623-10800
9616000600
main96160-00600
9616000800
main96160-00800
34 parts on this diagram · 2 diagrams in section
