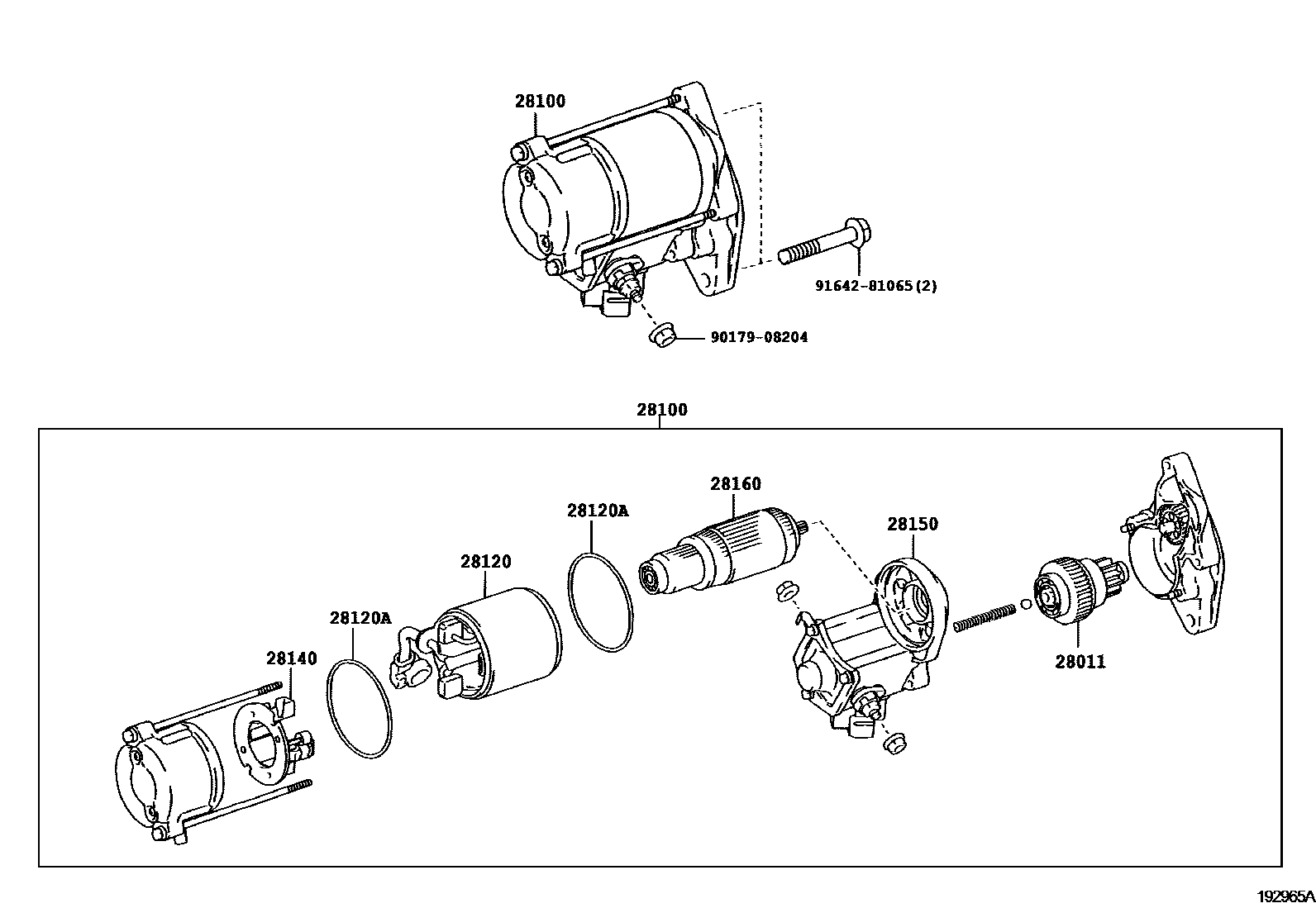

STARTER

0001 112V 2.0KW 0002 112V 2.0KW 0003 112V 1.4KW 0004 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-50100200712-201202

main28011-66020201202-201601

main28011-66060200712-201202

28100STARTER ASSY

main28100-0P061201202-201601

main28100-31050200712-201202

main28100-38070201202-201601

main28100-50101200712-201202

28120YOKE ASSY, STARTER

main28120-38070201202-201601

main28120-50070200712-201202

main28120-54380200712-201202

main28120-66040201202-201601

28120ARING, O(FOR STARTER YOKE)

main90099-14064200712-201601

28140HOLDER ASSY, STARTER BRUSH

main28140-35060201202-201601

main28140-38070201202-201601

main28140-54380200712-201202

main28140-62030200712-201202

28150SWITCH ASSY, MAGNET STARTER

main28150-31051200712-201202

main28150-31130201202-201601

main28150-38030201202-201601

main28150-50110200712-201202

28160ARMATURE ASSY, STARTER

main28160-38070201202-201612

main28160-74070201202-201601

main28160-75120200712-201202

9017908204

main90179-08204

9164281065

main91642-81065

9 parts on this diagram · 4 diagrams in section
