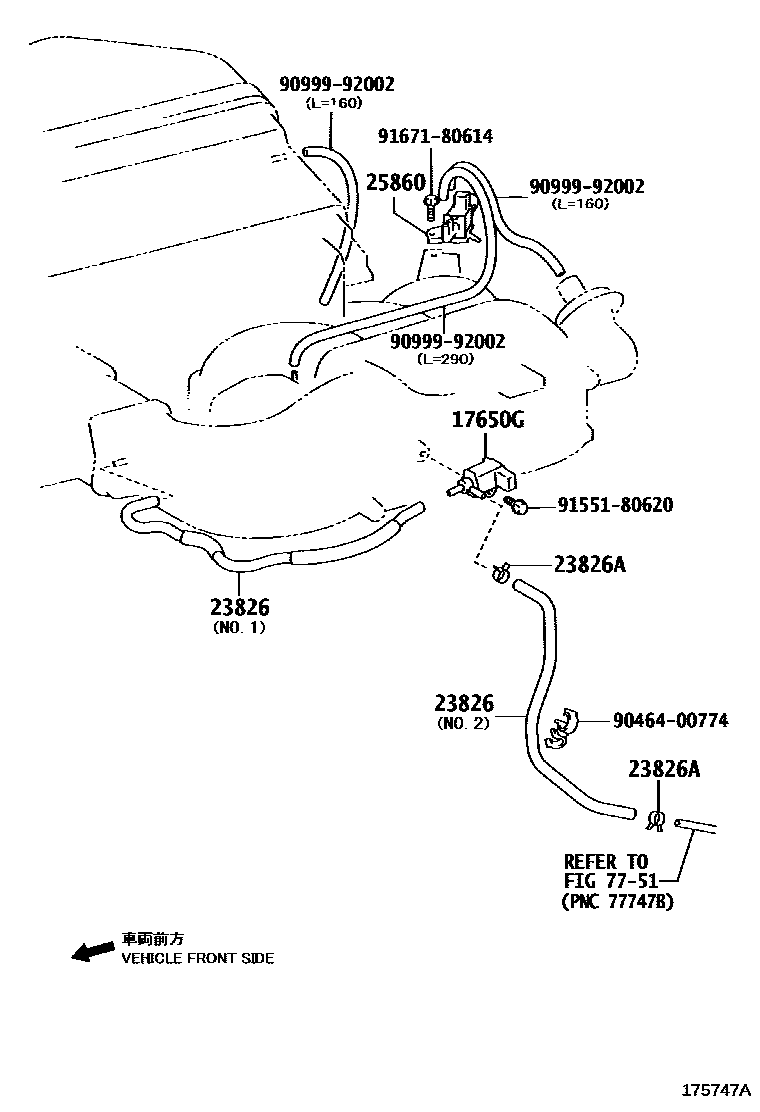

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i1URFE..URJ202201601

main25860-50170i2UZFE..UZJ200200712-201202

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12262i1GRFE..GRJ200..5F200712-200811

main90910-12276i1GRFE..GRJ200201202-201601

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31010i1GRFE..GRJ200..5F200712-200811

NO.1

main23826-31130i1GRFE..GRJ200..5FC200712-201202

NO.2

main23826-31160i1GRFE..GRJ200201601

NO.1

main23826-31240i1GRFE..GRJ200201202-201601

NO.2

main23826-38020i1URFE..URJ202201202-201601

main23826-50070i2UZFE..UZJ200200712-201202

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1GRFE..GRJ200; 1URFE..URJ202201601

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31010i1GRFE..GRJ200..5F200712-200811

main25860-31060i2UZFE..UZJ200200712-201202

NO.1

main25860-36020i1GRFE..GRJ200201202-201601

main25860-46010×2i2UZFE..UZJ200200712-201202

NO.2

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046400774

main90464-00774

9099992002

main90999-92002

9155180620

main91551-80620

9167180614

main91671-80614

10 parts on this diagram · 4 diagrams in section
