WATER PUMP

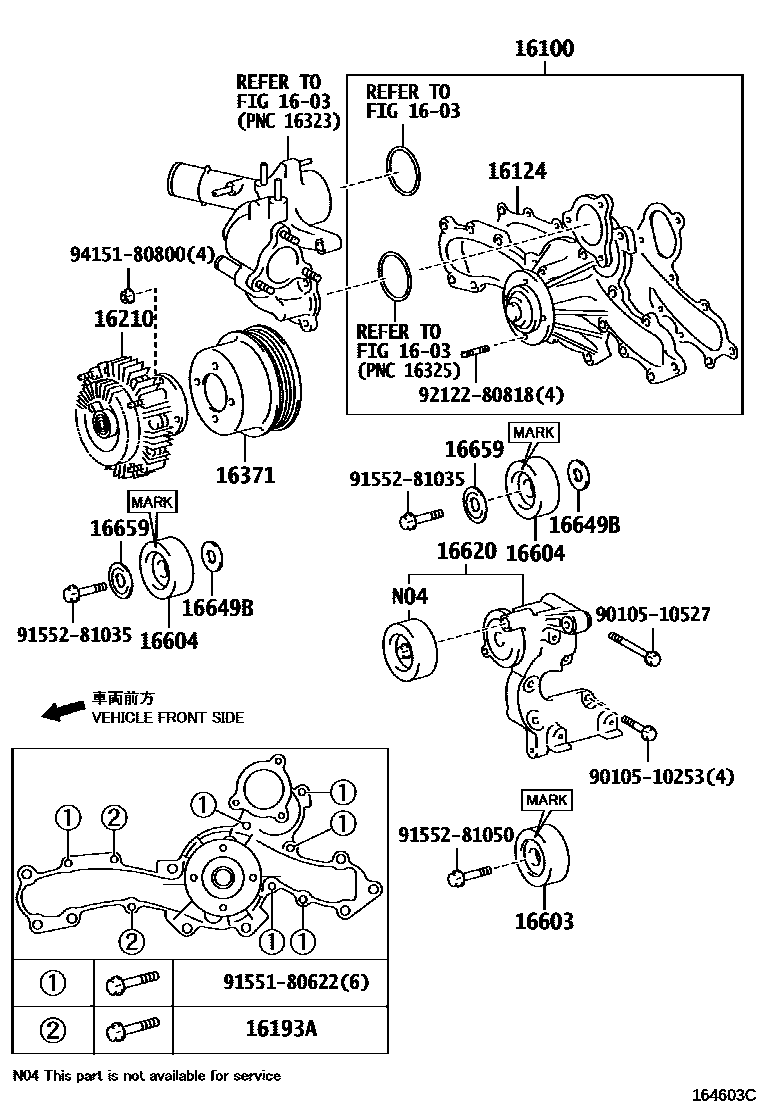

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39405i200712-200903

main16100-39406i200903-201202

main16100-39545i201202-201601

main16100-39555i201202-201601

main16100-59275i200712-200811

main16100-59276i200811-201202

16124GASKET, WATER PUMP COVER

main16124-31070i200712-201202

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i200712-201601

16210COUPLING ASSY, FLUID

main16210-31020i200712-201202

main16210-31040i201202-201601

main16210-38070i201202-201410

main16210-38071i201411-201601

main16210-50101i200712-201111

main16210-50102i201111-201202

16371PULLEY, FAN

main16371-31040i200712-201601

main16371-38010i201202-201601

main16371-50040i200712-201202

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W030i200712-201202

main16603-31040i200712-200810

main16603-31050i200810-201601

main16603-38010i201202-201212

main16603-38011i201212-201601

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i200712-201105

MARK=PU107013ARMXY1

main16604-31020i200712-201601

MARK=PU107013ARMXY3

main16604-31030i201105-201601

MARK=PU107016RMXY

main16604-50030i200712-201202

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i201202-201209

main16620-0S011i201209-201601

main16620-0W101i200712-201202

main16620-31012i200712-201202

main16620-31051i201202-201601

16649BPLATE, IDLER PULLEY COVER

main16649-31020i200712-201601

MARK=PU107013ARMXY3

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i200712-201105

main16659-31011i201105-201601

MARK=PU107013ARMXY3

main16659-50022i200712-201202

9010510253

main90105-10253

9010510527

main90105-10527

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

9415180800

main94151-80800

18 parts on this diagram · 4 diagrams in section
