SHORT BLOCK ASSEMBLY

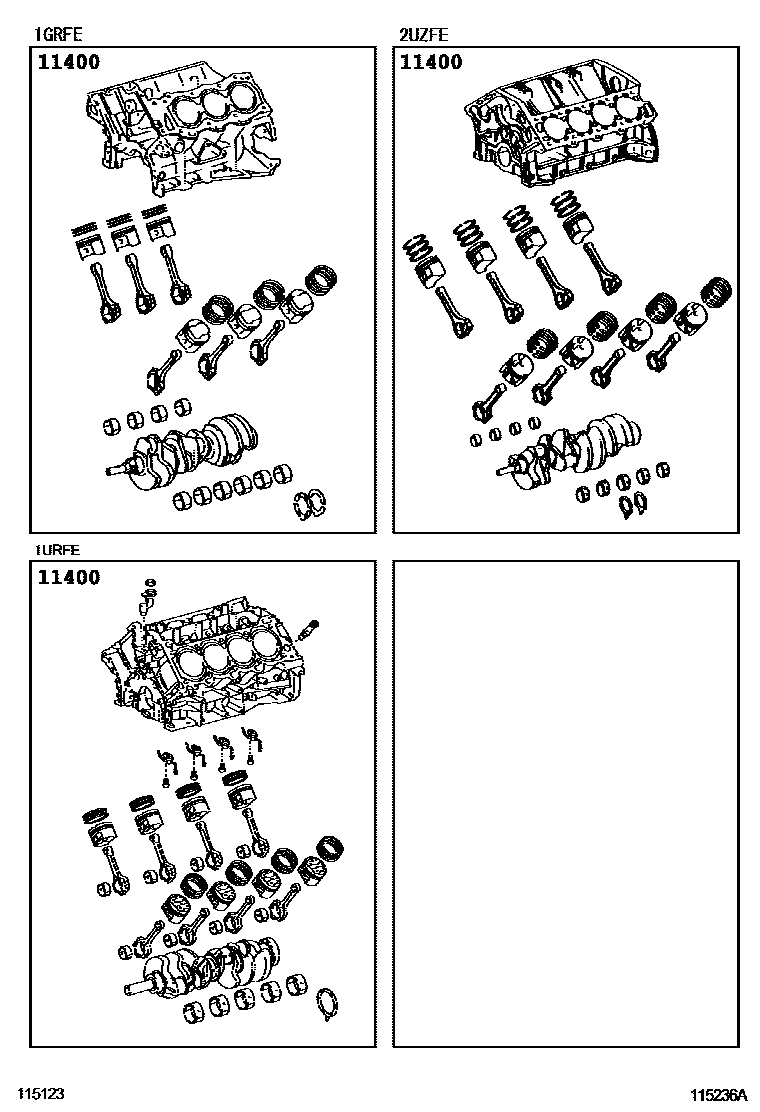

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31040i200712-200906

main11400-31280i201202-201601

main11400-31300i200906-201202

main11400-38111i201202-201504

main11400-38120i201504-201601

main11400-50220i200712-201202

1 parts on this diagram · 1 diagram in section
