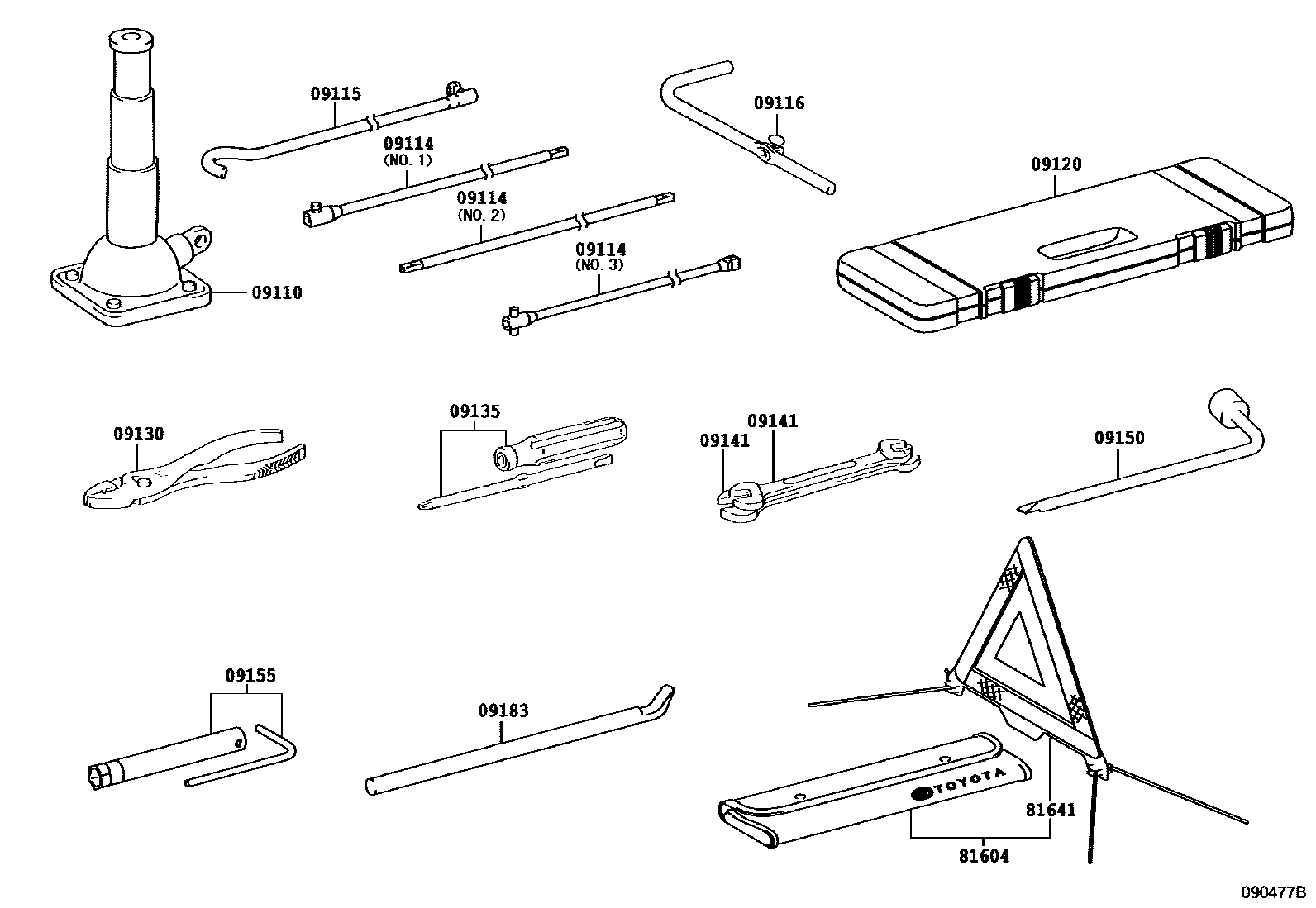

STANDARD TOOL

09110JACK ASSY

main09111-60120iGRJ200,URJ202200712-201507

sub09111-60121

main09111-60121iGRJ200,URJ202201508-201607

sub09111-60122

main09111-60122iGRJ200,URJ202201608-201612

sub09111-60150

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iGRJ200,URJ202200712-201601

NO.1

main09114-60080iGRJ200,UZJ200..5FC200712-201601

NO.2

main09114-60090iGRJ200,URJ202200712-201601

NO.3

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGRJ200,URJ202200712-201601

09116LEVER, JACK HANDLE

main09116-35080iGRJ200..5F200712-201601

sub09116-60020

09120BAG, TOOL

main09120-60210iGRJ200..5F200712-201601

09130PLIERS

main99913-11500iGRJ200,URJ202200712-201601

09135DRIVER, SCREW

main99915-10700iGRJ200,UZJ200..5FC200712-201601

09141SPANNER

main99914-10810iGRJ200,URJ202200712-201601

8 X 10

main99914-11214iGRJ200..5F200712-201601

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60030iGRJ200..5F200712-201612

09155WRENCH, SPARK PLUG

main09155-74010iGRJ200..5F200712-201612

09183WRENCH, WHEEL CAP

main09183-00030iGRJ200..5F200712-201612

81604REFLECTOR SET, TRIANGLE

main81604-02011iGRJ200..5F200712-201601

81641REFLECTOR, TRIANGLE

main81641-02010iGRJ200..5F200712-201601

13 parts on this diagram · 1 diagram in section
