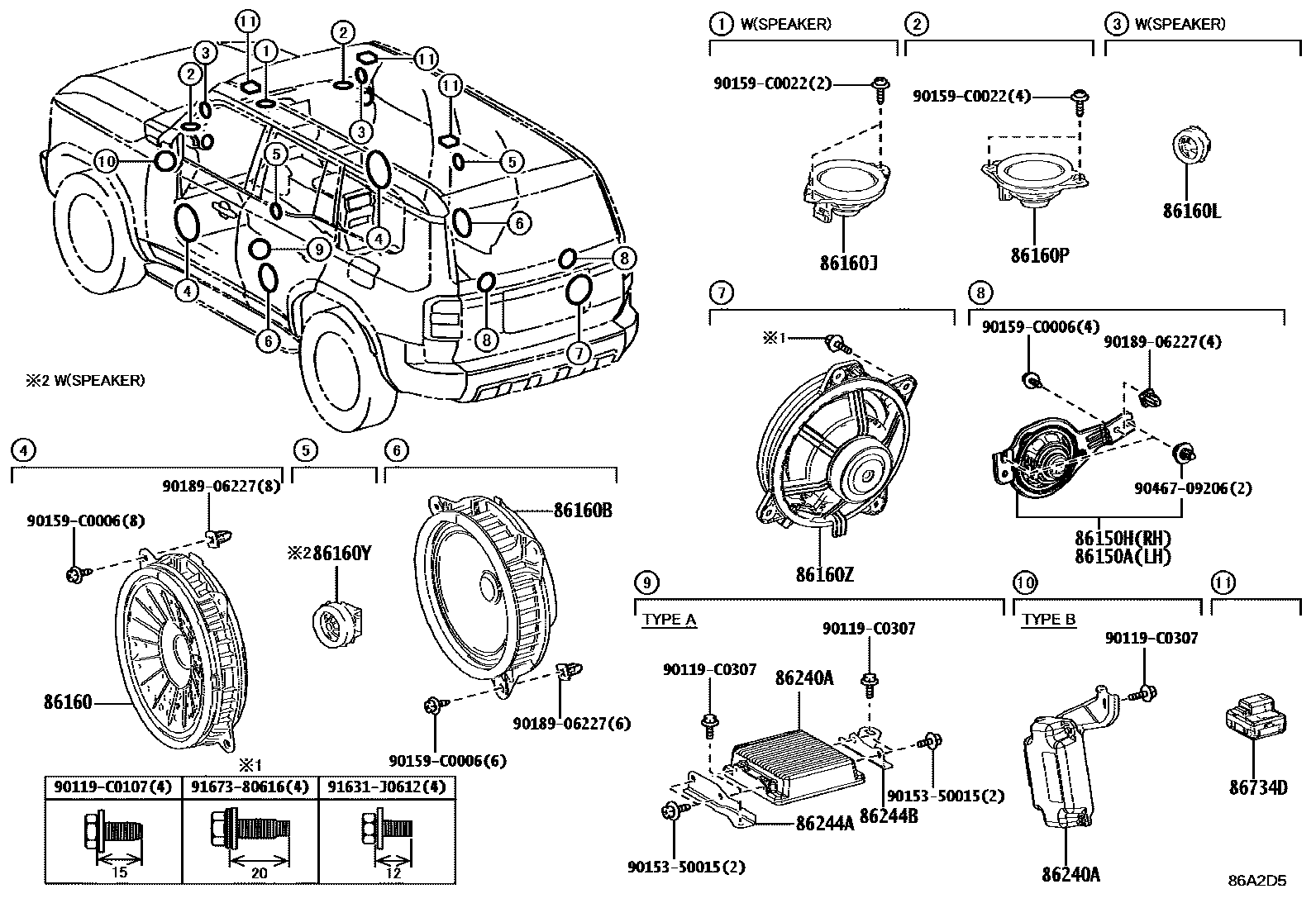

SPEAKER

86150ASPEAKER ASSY, W/BRACKET, NO.2

main86150-0G150iTJH251..L202407

86150HSPEAKER ASSY, W/BRACKET

main86150-0G140iTJH251..L202407

86160SPEAKER ASSY, FRONT NO.1

main86160-06880×2iTJH251..L202407

main86160-06B10×2iTJH251..U202407

main86160-78080×2iTJH251..A,R202407

86160BSPEAKER ASSY, REAR

main86160-02C60×2iTJH251..U202407

main86160-06A90×2iTJH251..L202407

main86160-60700×2iTJH251..A,R202407

86160JSPEAKER ASSY, FRONT NO.3

main86160-0R180iTJH251..L202407

main86160-33A50iTJH251..A,R202407

86160LSPEAKER ASSY, FRONT NO.4

main86150-06050×2iTJH251..L202407

86160PSPEAKER ASSY, FRONT NO.2

main86160-0R170×2iTJH251..U202407

main86160-0R180×2iTJH251..L202407

main86160-78070×2iTJH251..A,R202407

86160YSPEAKER ASSY, REAR NO.2

main86150-07120×2iTJH251..L202407

86160ZSPEAKER ASSY, REAR NO.3

main86150-0G130iTJH251..L202407

main86150-60420iTJH251..A,R,U202407

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-30140iTJH251..U202407

TYPE A:REFER ILLUST.

main86240-60050iTJH251..A,L,R202407

TYPE B:REFER ILLUST.

86244ABRACKET, EQUALIZER STEREO COMPONENT, NO.1

main86244-60010iTJH251..U202407

TYPE A:REFER ILLUST.

86244BBRACKET, EQUALIZER STEREO COMPONENT, NO.2

main86244-60020iTJH251..U202407

TYPE A:REFER ILLUST.

86734DMICROPHONE, ACTIVE NOISE CONTROL

main86734-11030×3iTJH251202407

90119C0107

main90119-C0107

90119C0307

main90119-C0307

9015350015

main90153-50015

90159C0006

main90159-C0006

90159C0022

main90159-C0022

9018906227

main90189-06227

9046709206

main90467-09206

91631J0612

main91631-J0612

9167380616

main91673-80616

22 parts on this diagram · 1 diagram in section
