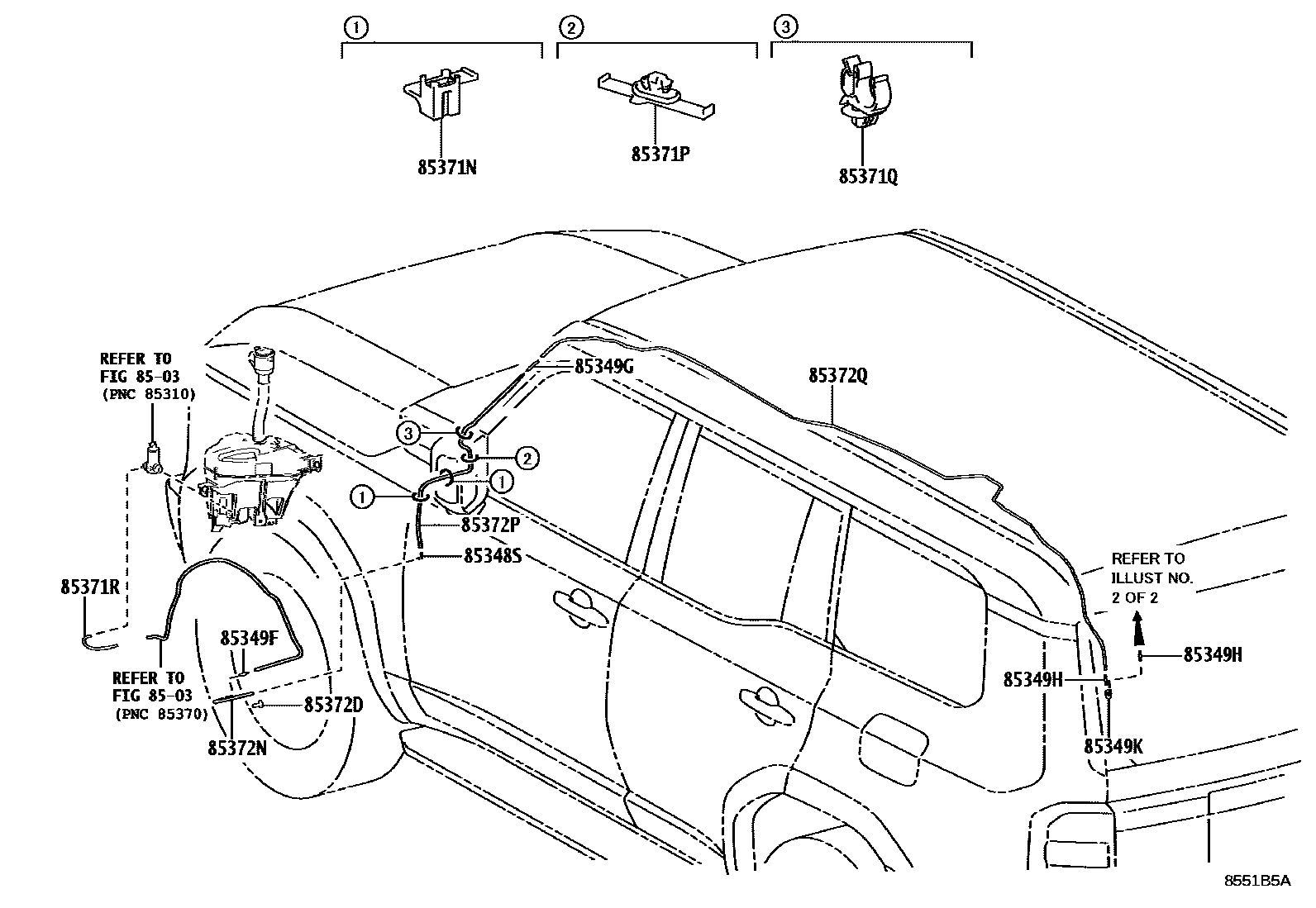

REAR WASHER
8503WINDSHIELD WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=200
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=750
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
14 parts on this diagram · 3 diagrams in section
