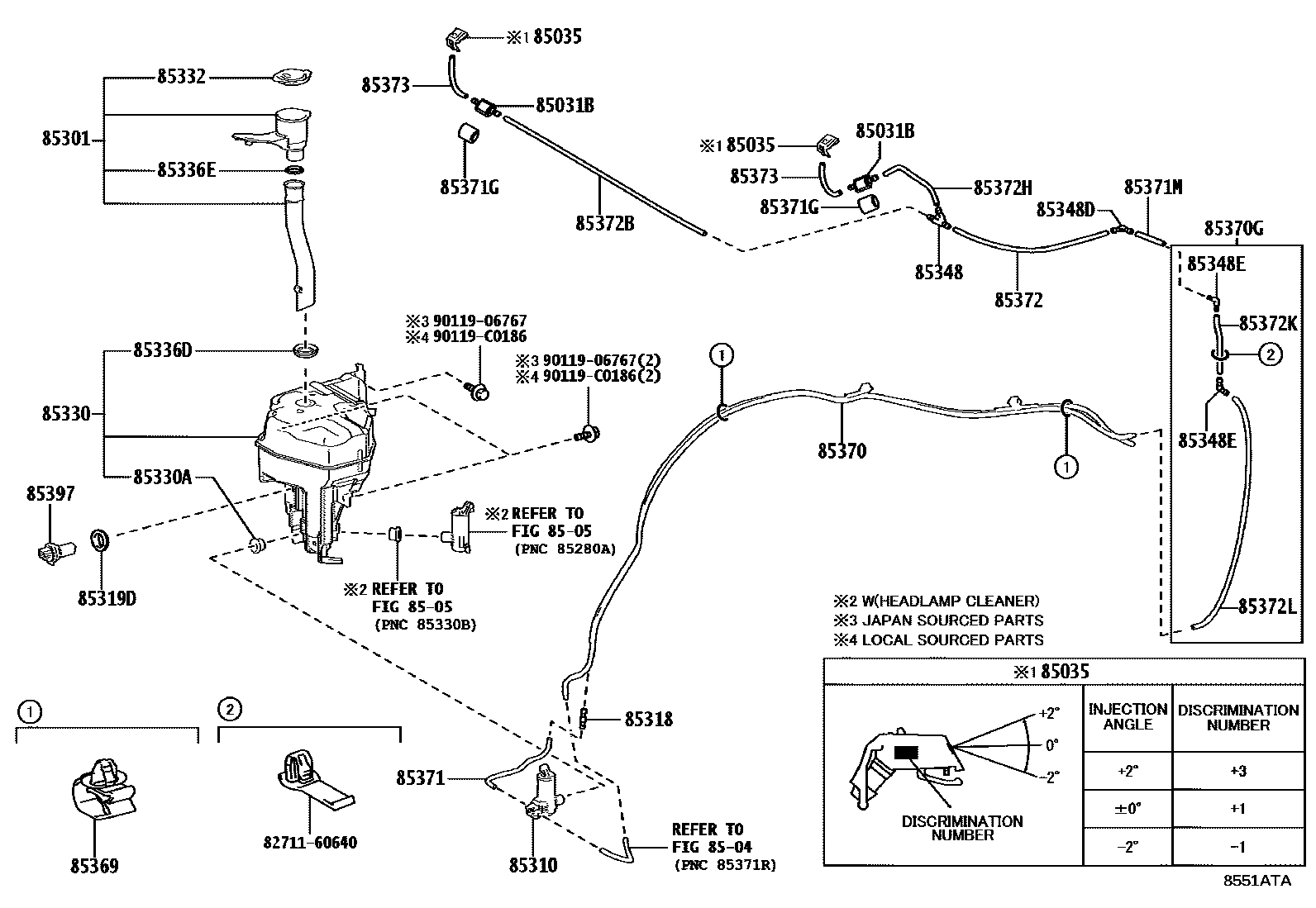

WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85318JOINT, WINDSHIELD WASHER MOTOR
85319DPACKING, FRONT WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85369CLAMP
85370HOSE ASSY, WINDSHIELD WASHER
85370GHOSE ASSY, WINDSHIELD WASHER, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=200)
85371GPROTECTOR, FRONT WASHER
85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)
L=1450(*H,L=60)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=310)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=610)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=170)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=107
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=406
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=80)
85397SWITCH ASSY,LEVEL WARNING
8271160640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60640
9011906767
main90119-06767
90119C0186
main90119-C0186
32 parts on this diagram · 1 diagram in section
