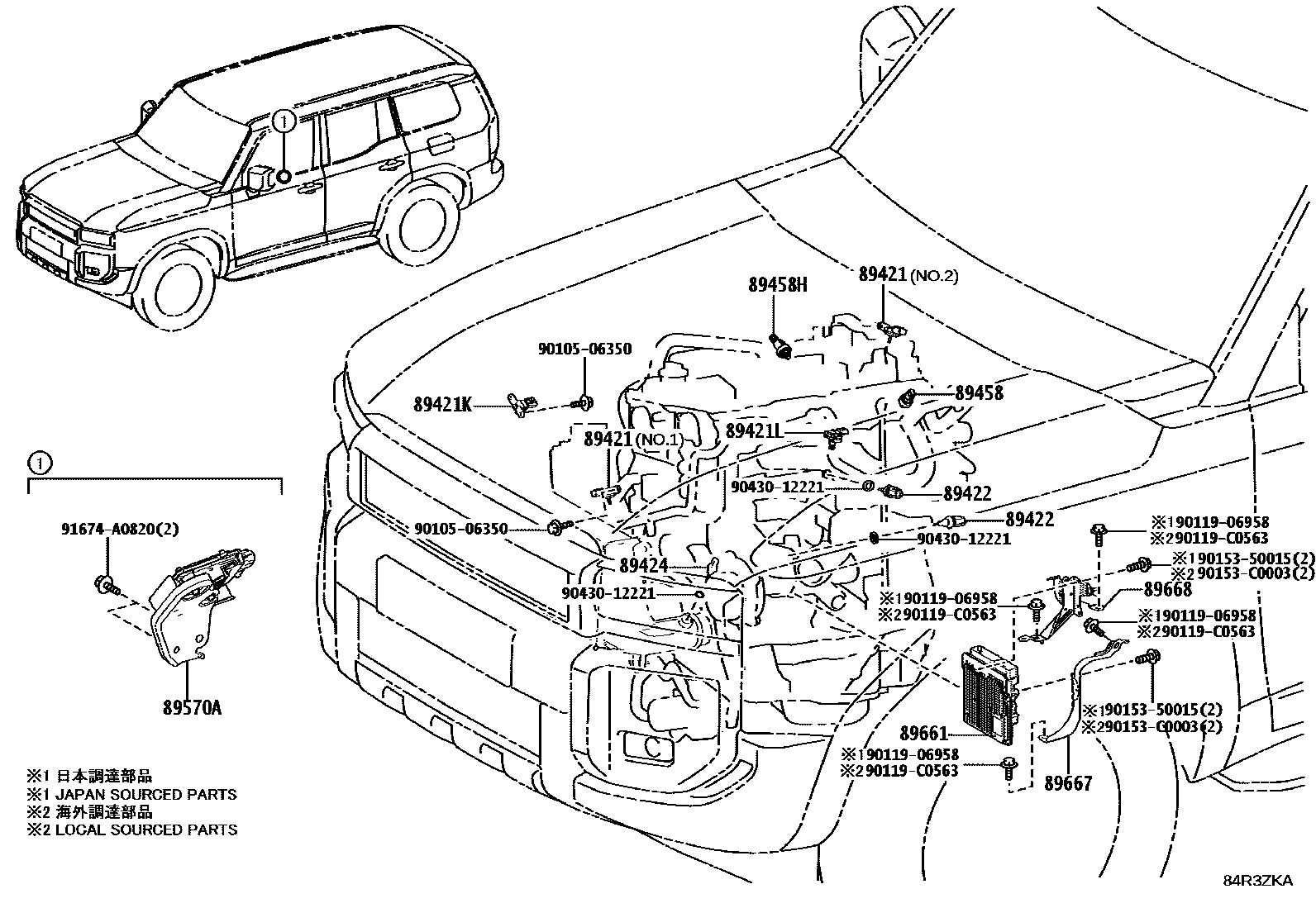

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iTJH251202407

NO.1

main89421-60050iTJH251202407

NO.2

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78030iTJH251202407

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78040iTJH251202407

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030×2iTJH251202407

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-60020iTJH251202407

89458SENSOR, FUEL PRESSURE

main89458-33042iTJH251202407

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-78030iTJH251202407

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60210iTJH251202407

89661COMPUTER, ENGINE CONTROL

main89666-60X20iTJH251202407

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60310iTJH251202407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60330iTJH251202407

9010506350

main90105-06350

9011906958

main90119-06958

90119C0563

main90119-C0563

9015350015

main90153-50015

90153C0003

main90153-C0003

9043012221

main90430-12221

91674A0820

main91674-A0820

18 parts on this diagram · 1 diagram in section
