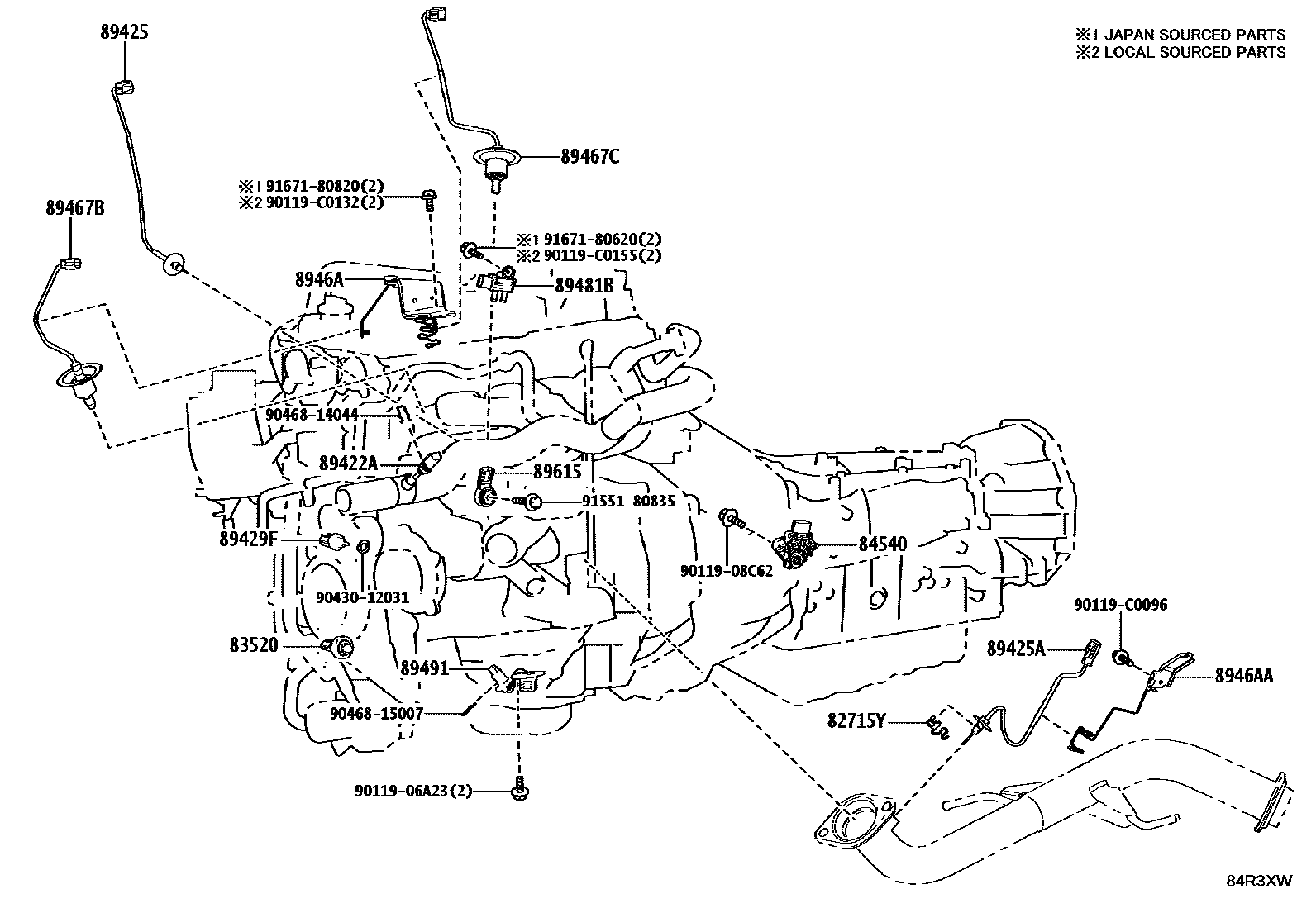

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1FRONT SEAT 0009 1REAR NO.1 SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main8946A-0G020iTJH251202407

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iTJH251202407

84540SWITCH ASSY, NEUTRAL START

main84540-60080iTJH251202407

89422ASENSOR, WATER TEMPERATURE

main89422-33040iTJH251202407

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-60330iTJH251202407

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-0G010iTJH251202407

89429FSENSOR, TEMPERATURE

main89429-12010iTJH251202407

89467BSENSOR, AIR FUEL RATIO

main89467-60270iTJH251202407

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-60280iTJH251202407

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-60360iTJH251202407

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-0G010iTJH251202407

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iTJH251202407

(L)

main89481-48010iTJH251202407

(J)

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTJH251202407

89615SENSOR, KNOCK CONTROL

main89615-78010iTJH251202407

9011906A23

main90119-06A23

9011908C62

main90119-08C62

90119C0096

main90119-C0096

90119C0132

main90119-C0132

90119C0155

main90119-C0155

9043012031

main90430-12031

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180620

main91671-80620

9167180820

main91671-80820

25 parts on this diagram · 11 diagrams in section
