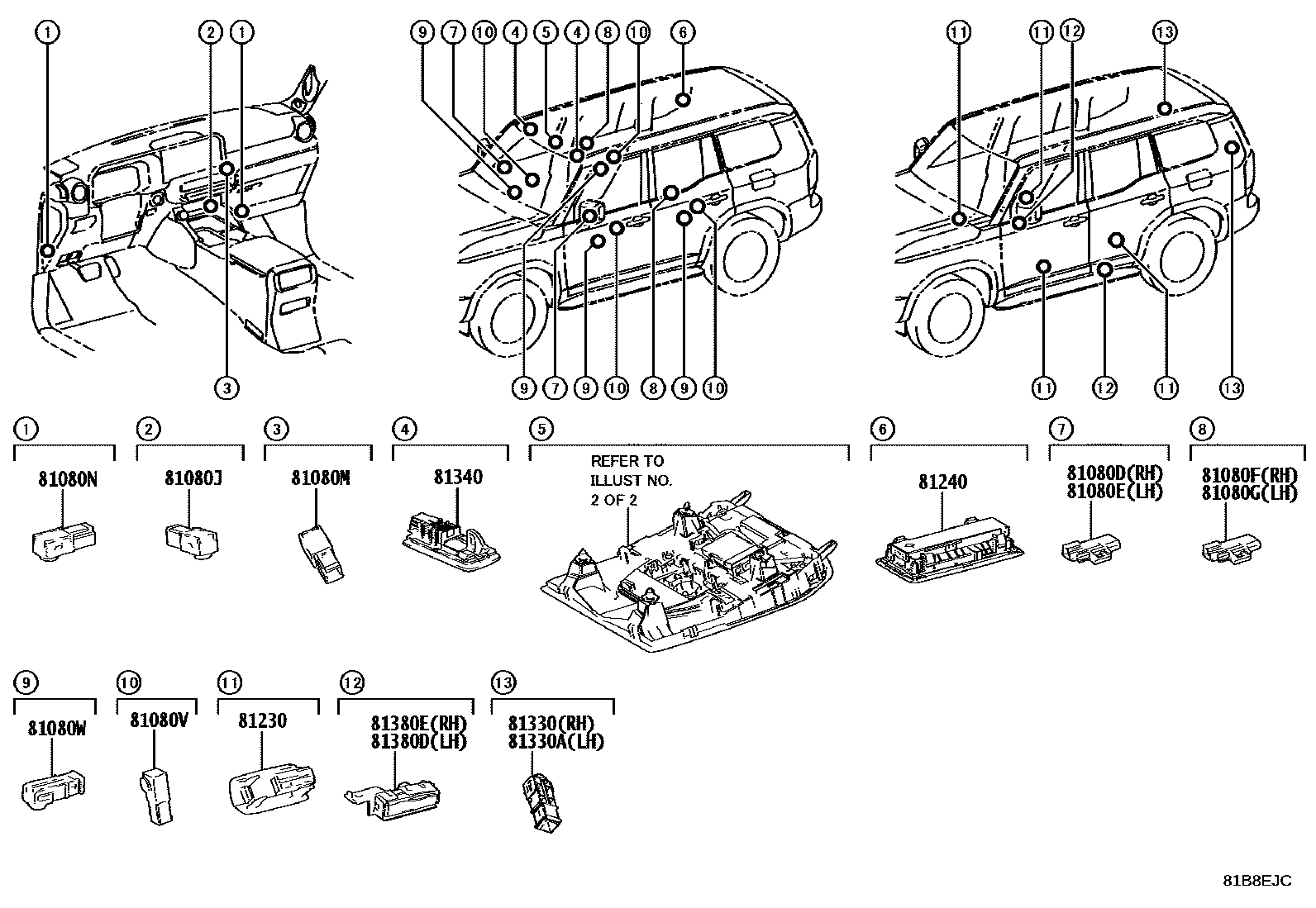

INTERIOR LAMP

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0A080×2i202407

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-0G100×4i202407

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-0G090×4i202407

81230LAMP ASSY, COURTESY

main81230-0E040×4i202407

81240LAMP ASSY, ROOM, NO.1

FROMAGE,TRIM1#

BLACK,TRIM2#; BLACK,TRIM2#,4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2

81340LAMP ASSY, VANITY

main81340-33170×2i202407

81380DLAMP ASSY, STEP

STEP & STEP COVER-WITH(STEP LAMP)

81380EBULB (FOR STEP LAMP)

STEP & STEP COVER-WITH(STEP LAMP)

16 parts on this diagram · 2 diagrams in section
