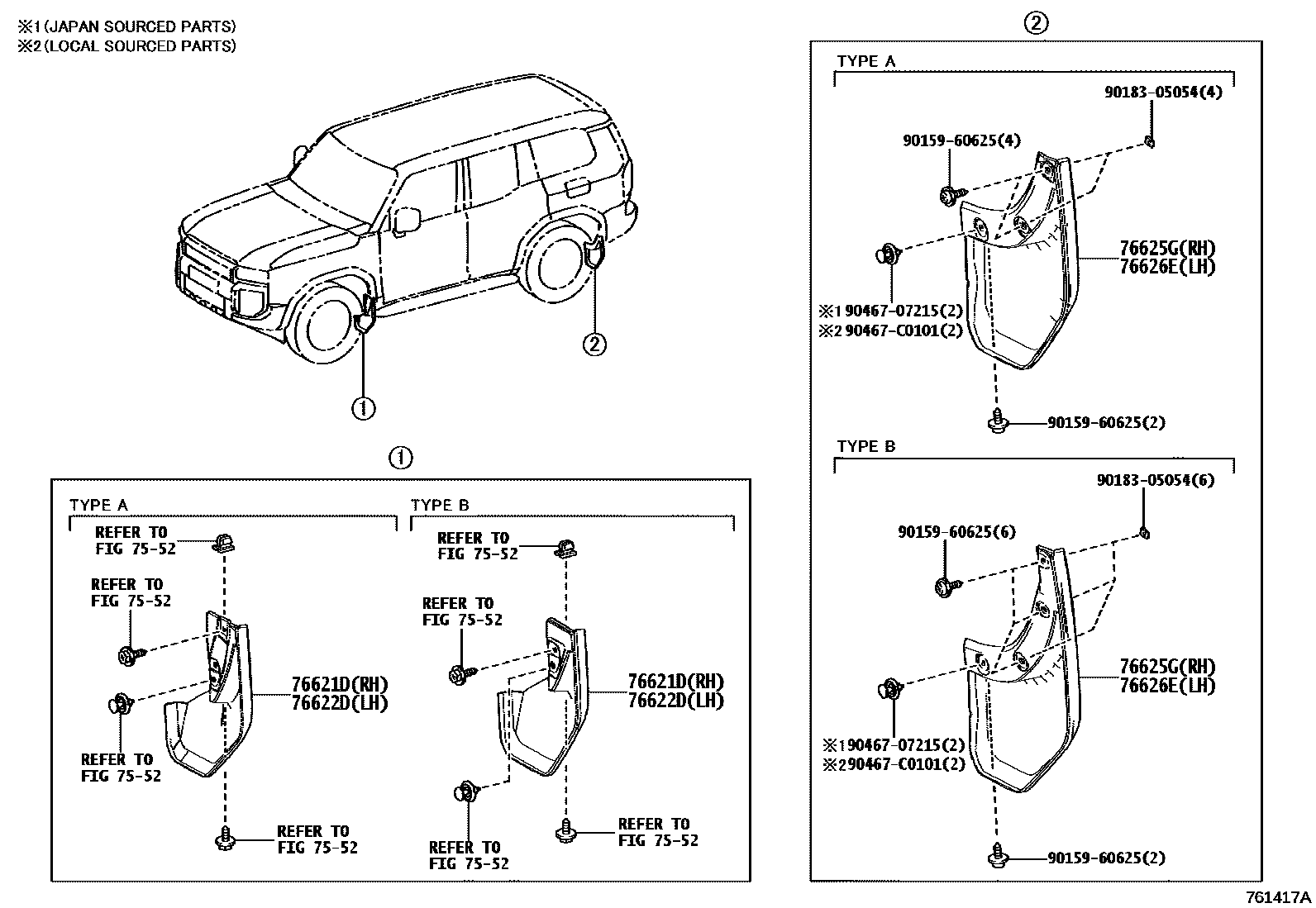

SPOILER & SIDE MUDGUARD

0001 1 0002 1

7552MOULDING

→ Go to FIG 75-52

76621DMUDGUARD, FRONT FENDER, RH

main76621-0G040iTJH251..A,L,R202407

TYPE A:REFER ILLUST.

main76621-0G050iTJH251..U202407

TYPE B:REFER ILLUST.

main76621-0G060iTJH251..A202407

MUD GUARD-WITH(FTRD),TYPE A:REFER ILLUST.

76622DMUDGUARD, FRONT FENDER, LH

main76622-0G040iTJH251..A,L,R202407

TYPE A:REFER ILLUST.

main76622-0G050iTJH251..U202407

TYPE B:REFER ILLUST.

main76622-0G060iTJH251..A202407

MUD GUARD-WITH(FTRD),TYPE A:REFER ILLUST.

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0G050iTJH251..U202407

TYPE A:REFER ILLUST.

main76625-0G060iTJH251..A,L,R202407

TYPE B:REFER ILLUST.

main76625-0G070iTJH251..A202407

MUD GUARD-WITH(FTRD),TYPE B:REFER ILLUST.

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0G050iTJH251..U202407

TYPE A:REFER ILLUST.

main76626-0G060iTJH251..A,L,R202407

TYPE B:REFER ILLUST.

main76626-0G070iTJH251..A202407

MUD GUARD-WITH(FTRD),TYPE B:REFER ILLUST.

9015960625

main90159-60625

9018305054

main90183-05054

9046707215

main90467-07215

90467C0101

main90467-C0101

9 parts on this diagram · 2 diagrams in section
