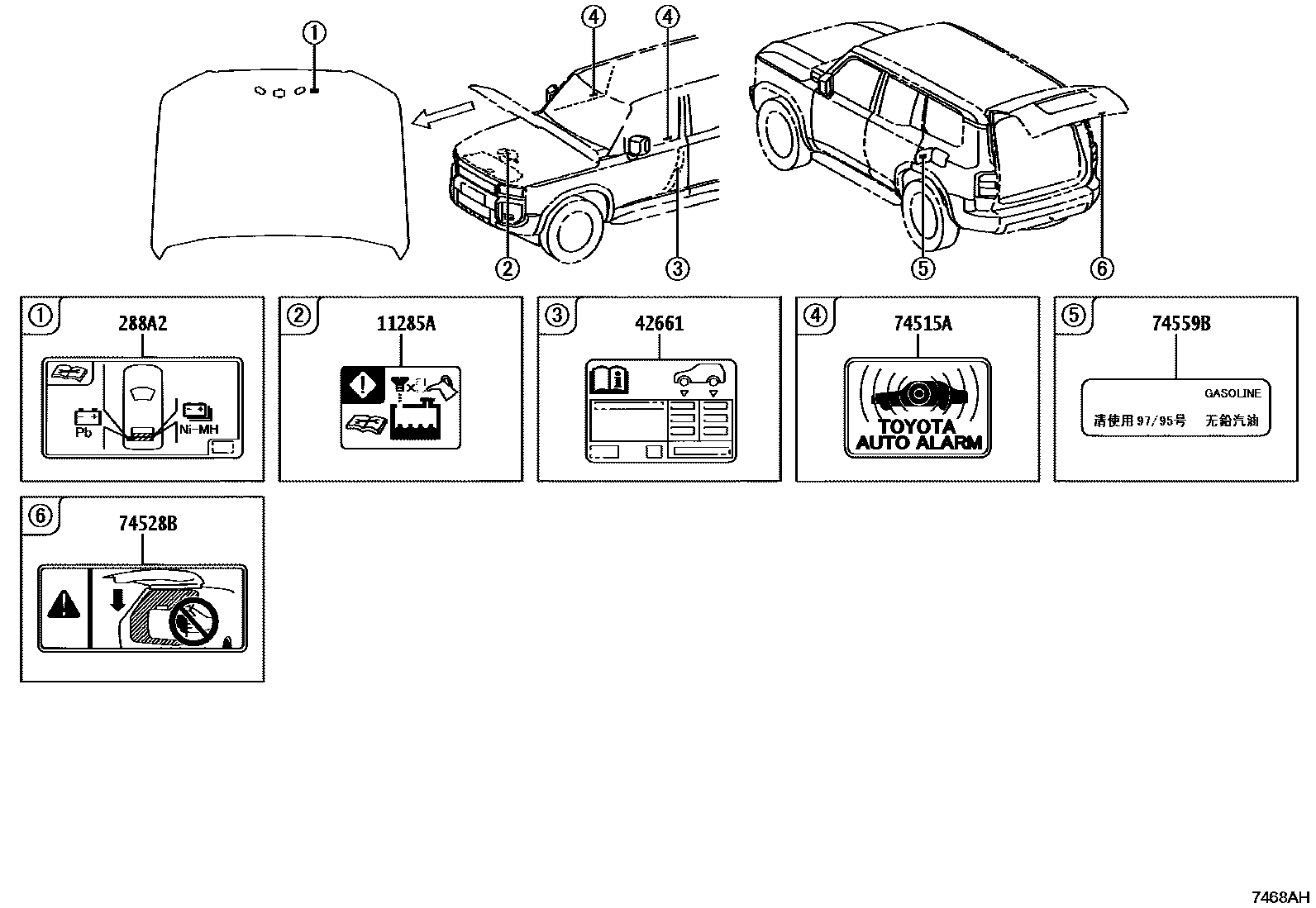

CAUTION PLATE

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020iT24..TJH251202407

288A2LABEL, BATTERY LOCATION

main288A2-25070iT24..TJH251202407

42661LABEL, TIRE PRESSURE INFORMATION

main42661-60K90iTJH251..U202407

main42661-60L10iTJH251..A,R202407

main42661-60L50iTJH251..L202407

main42661-60L70iTJH251..A202407

TIRE & DISC WHEEL-265/70R18,7.5J,ALUMINUM

74515APLATE, THEFT WARNING

main74515-33020×2iTJH251202407

74528BLABEL, BACK DOOR CAUTION

main74528-0R031iTJH251..A,L,R202407

74559BLABEL, FUEL INFORMATION

main74579-0E010iTJH251202407

6 parts on this diagram · 1 diagram in section
