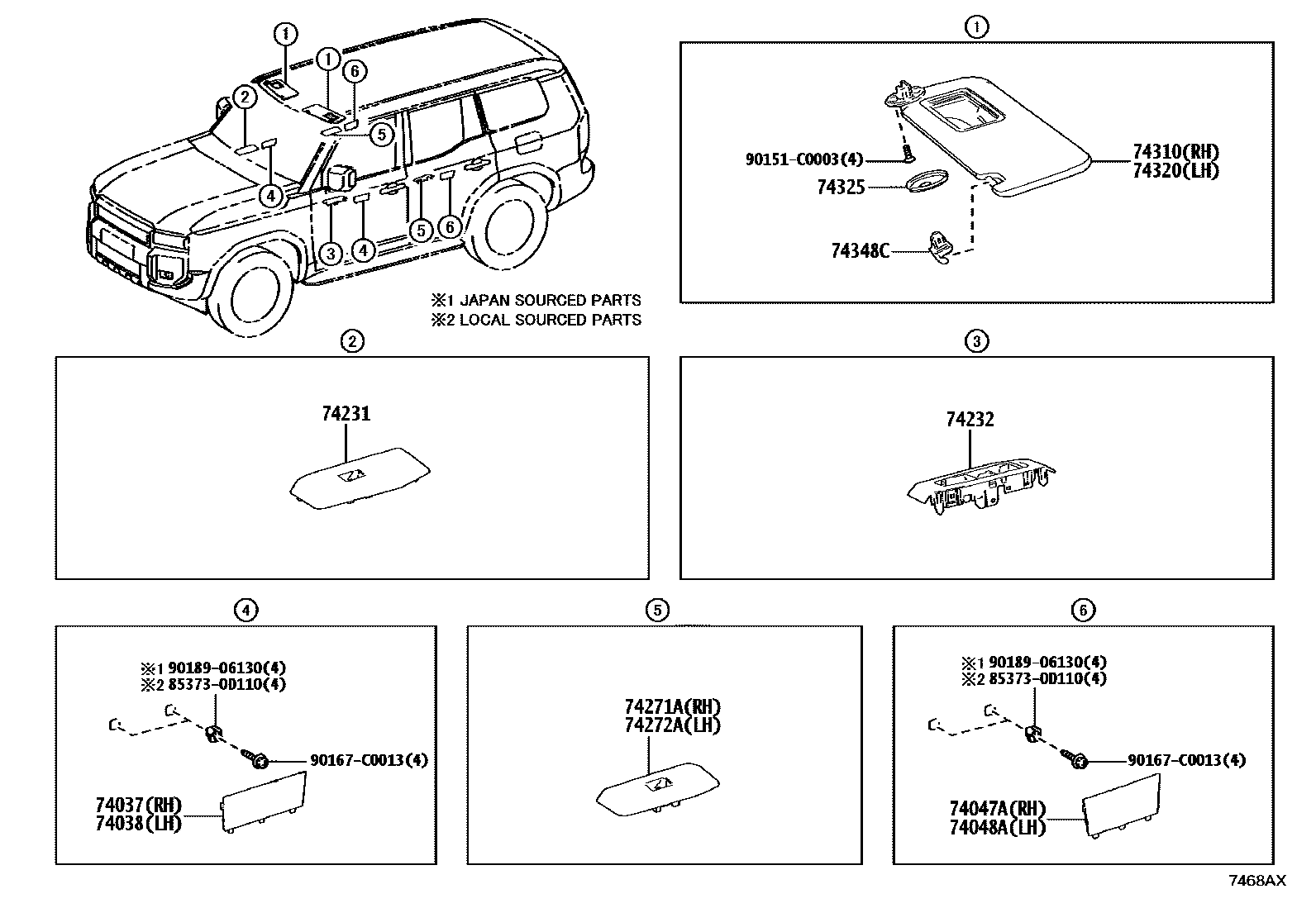

ARMREST & VISOR

0001 1ARMREST & VISOR 0002 1ASSIST GRIP(DOOR & SIDE TRIM)0003 1ASSIST GRIP(ROOF)

74037COVER SUB-ASSY, FRONT DOOR ARMREST, RH

main74037-0G010iTJH251202407

74038COVER SUB-ASSY, FRONT DOOR ARMREST, LH

main74038-0G010iTJH251202407

74047ACOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74047-0G010iTJH251202407

74048ACOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74048-0G010iTJH251202407

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0G050iTJH251..A,L,R202407

main74231-0G060iTJH251..U202407

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0G050iTJH251..A,L,R202407

main74232-0G060iTJH251..U202407

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0G100iTJH251..A,L,R202407

main74271-0G110iTJH251..U202407

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0G100iTJH251..A,L,R202407

main74272-0G110iTJH251..U202407

74310VISOR ASSY, RH

main74310-0G040-A0iTJH251..L,R202407

FROMAGE,TRIM1#

main74310-0G040-C0iTJH251..A; TJH251..L,R,U202407

BLACK,TRIM2#; BLACK,TRIM2#,4#

74320VISOR ASSY, LH

main74320-0G040-A0iTJH251..L,R202407

FROMAGE,TRIM1#

main74320-0G040-C0iTJH251..A; TJH251..L,R,U202407

BLACK,TRIM2#; BLACK,TRIM2#,4#

74325COVER, VISOR BRACKET

main74317-07010-A0×2iTJH251..L,R202407

FROMAGE,TRIM1#

main74317-07010-C0×2iTJH251..A; TJH251..L,R,U202407

BLACK,TRIM2#; BLACK,TRIM2#,4#

74348CHOLDER, VISOR, LH

main74348-07010-A0×2iTJH251..L,R202407

FROMAGE,TRIM1#

main74348-07010-C0×2iTJH251..A; TJH251..L,R,U202407

BLACK,TRIM2#; BLACK,TRIM2#,4#

853730D110HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0D110

90151C0003

main90151-C0003

90167C0013

main90167-C0013

9018906130

main90189-06130

16 parts on this diagram · 3 diagrams in section
