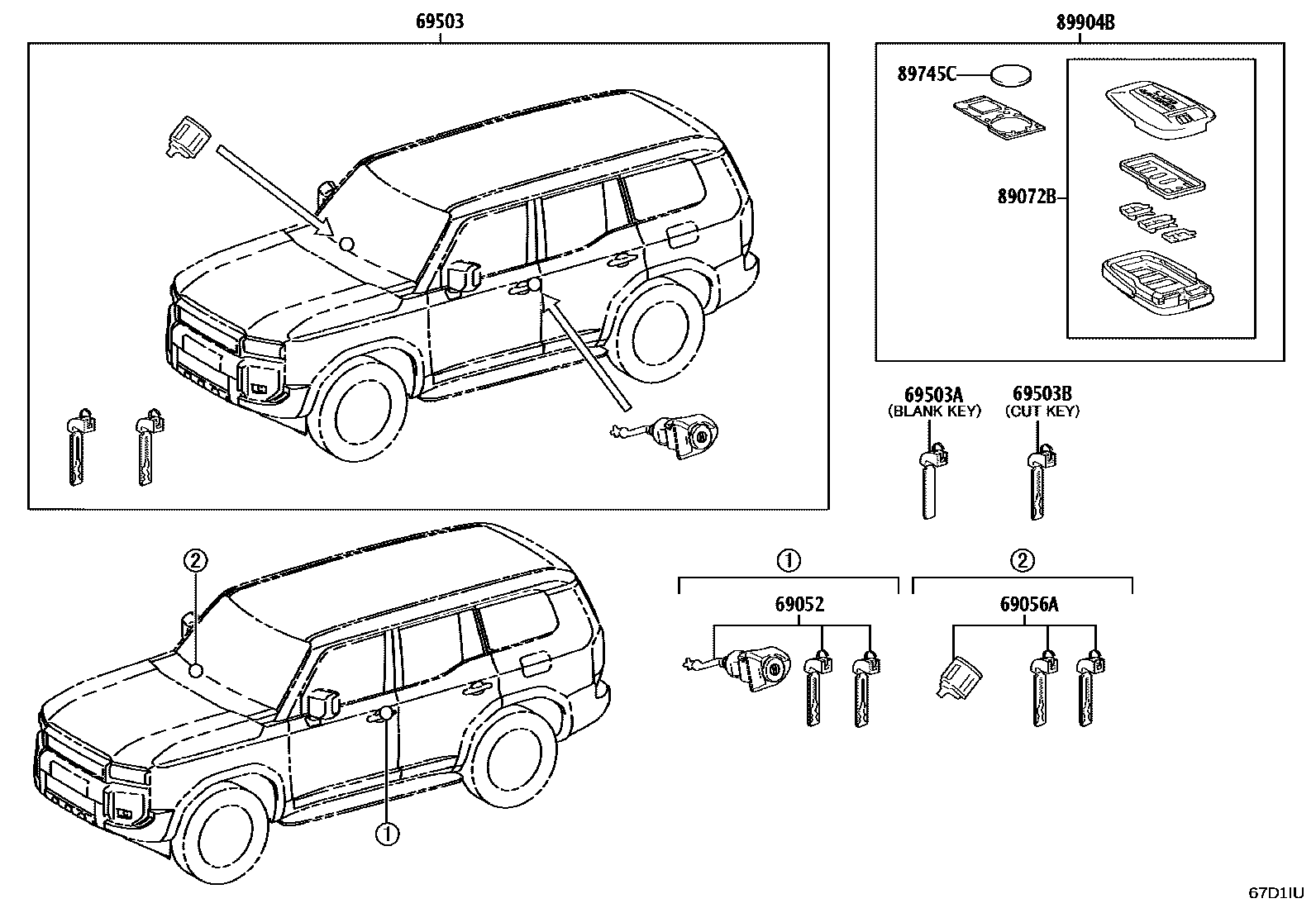

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0G040iTJH251202407

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0G040iTJH251202407

69503CYLINDER SET, LOCK

main69005-0G050iTJH251202407

69503AKEY, BLANK

main69515-0R170iTJH251202407

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-0R160×2iTJH251202407

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-60V90×2iTJH251..A,L,R202407

main89072-K0010×2iTJH251..U202407

89745CBATTERY, TRANSMITTER

main89745-K0010iTJH251202407

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-60760iTJH251..U202407

main8990H-60800iTJH251..A,L,R202407

8 parts on this diagram · 1 diagram in section
