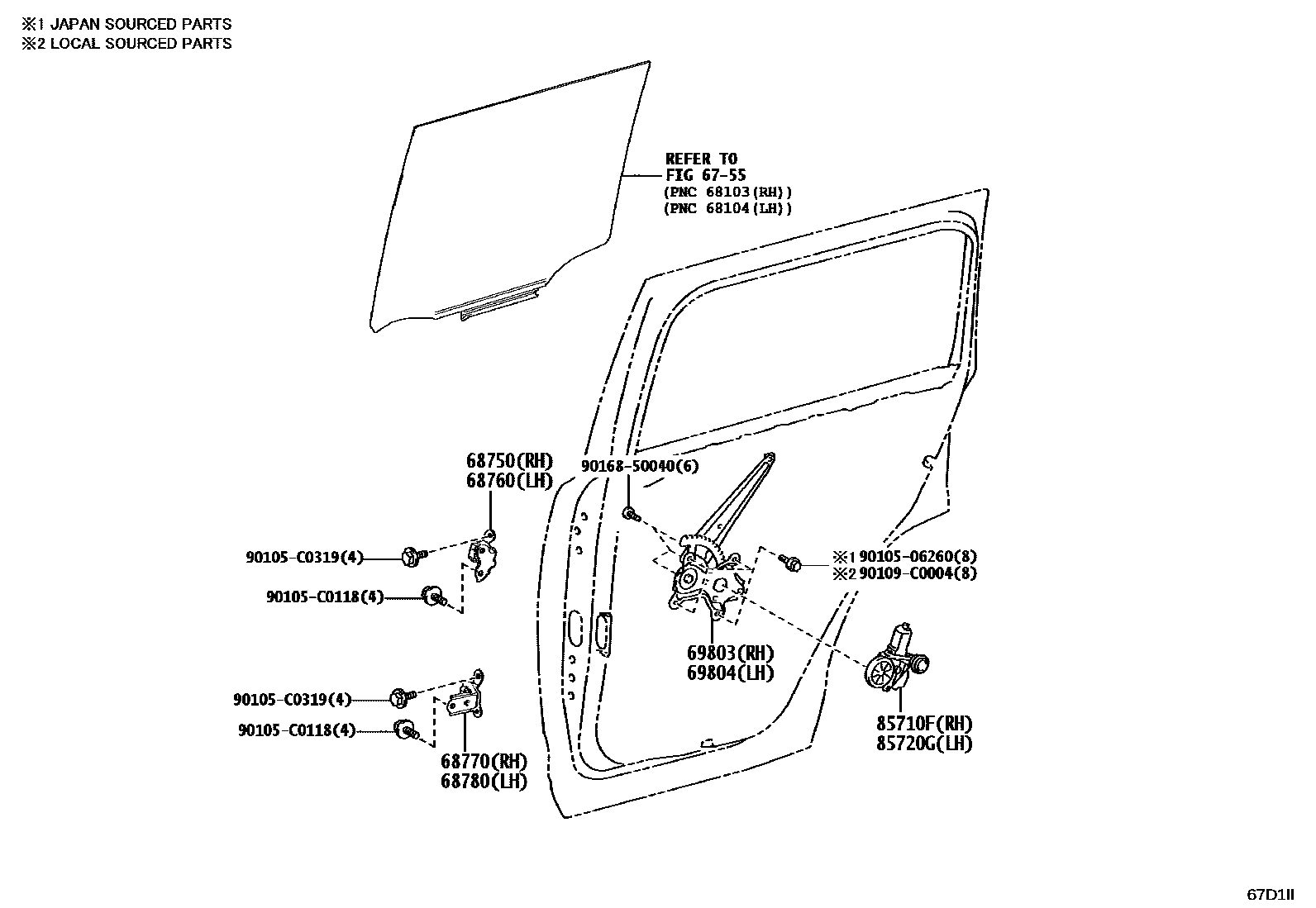

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iTJH251202407

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iTJH251202407

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-07020iTJH251202407

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-07020iTJH251202407

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0G020iTJH251202407

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0G020iTJH251202407

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0G100iTJH251202407

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0G100iTJH251202407

9010506260

main90105-06260

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
