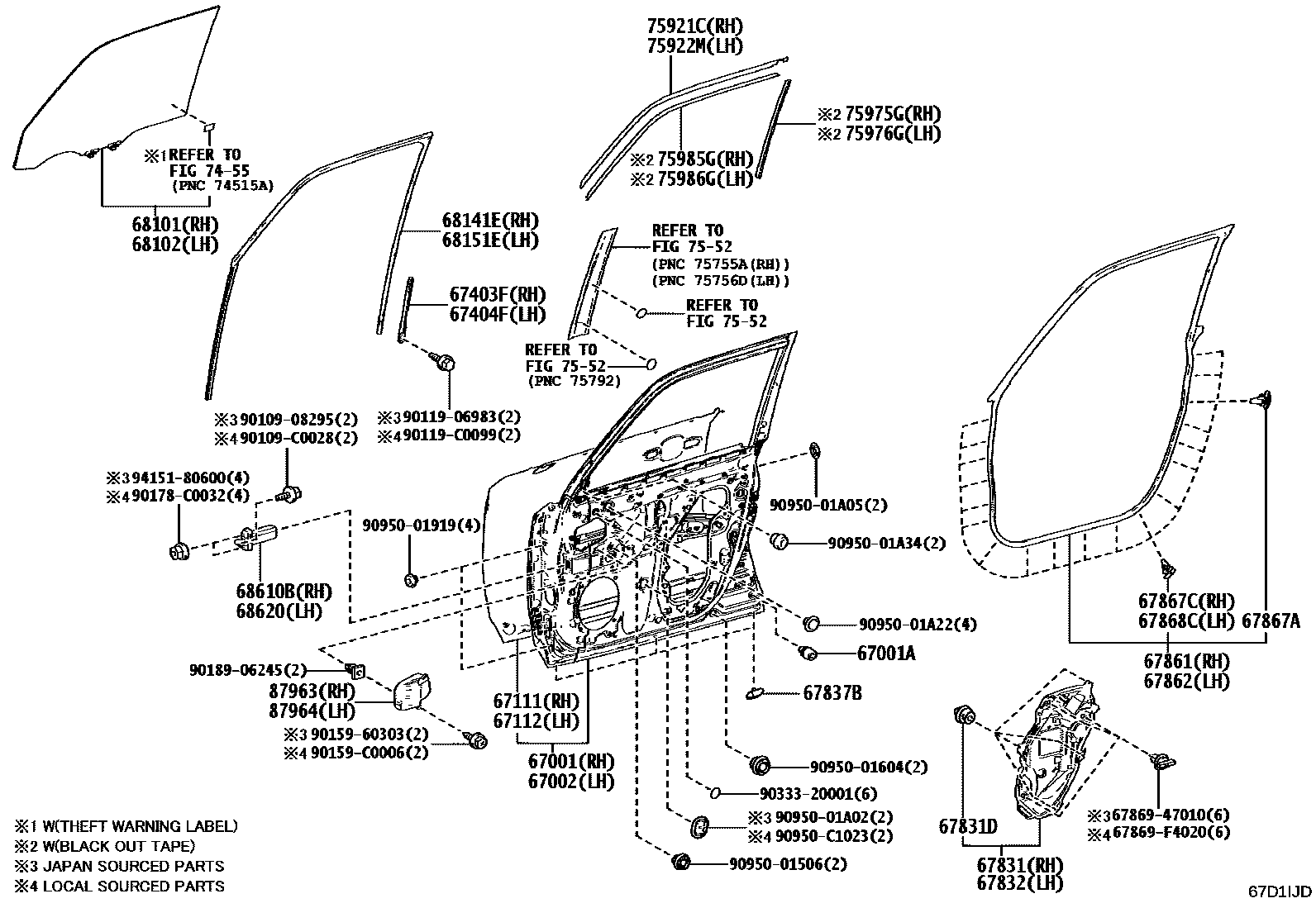

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60880iTJH251202407

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iTJH251202407

(J)

main90541-C0003×2iTJH251202407

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60880iTJH251202407

67111PANEL, FRONT DOOR, OUTER RH

main67111-60470iTJH251202407

67112PANEL, FRONT DOOR, OUTER LH

main67112-60470iTJH251202407

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0G020iTJH251202407

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0G020iTJH251202407

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0G030iTJH251202407

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×4iTJH251202407

(J)

main90467-C0033×4iTJH251202407

(L)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0G030iTJH251202407

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02150×6iTJH251202407

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0G030iTJH251202407

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0G030iTJH251202407

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-52030×2iTJH251202407

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-0D040×18iTJH251202407

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×18iTJH251202407

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0G050iTJH251202407

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0G050iTJH251202407

68141ERUN, FRONT DOOR GLASS, RH

main68141-0G030iTJH251202407

68151ERUN, FRONT DOOR GLASS, LH

main68151-0G030iTJH251202407

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0G030iTJH251202407

68620CHECK ASSY, FRONT DOOR, LH

main68610-0G030iTJH251202407

7455CAUTION PLATE

→ Go to FIG 74-55

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0G040iTJH251202407

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0G040iTJH251202407

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-0G030iTJH251..L202407

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-0G030iTJH251..L202407

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-0G090iTJH251..L202407

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-0G090iTJH251..L202407

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0G010iTJH251202407

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0G010iTJH251202407

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010

67869F4020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-F4020

9010908295

main90109-08295

90109C0028

main90109-C0028

9011906983

main90119-06983

90119C0099

main90119-C0099

9015960303

main90159-60303

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906245

main90189-06245

9033320001

main90333-20001

9095001506

main90950-01506

9095001604

main90950-01604

9095001919

main90950-01919

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095001A22

main90950-01A22

9095001A34

main90950-01A34

90950C1023

main90950-C1023

9415180600

main94151-80600

52 parts on this diagram · 2 diagrams in section
