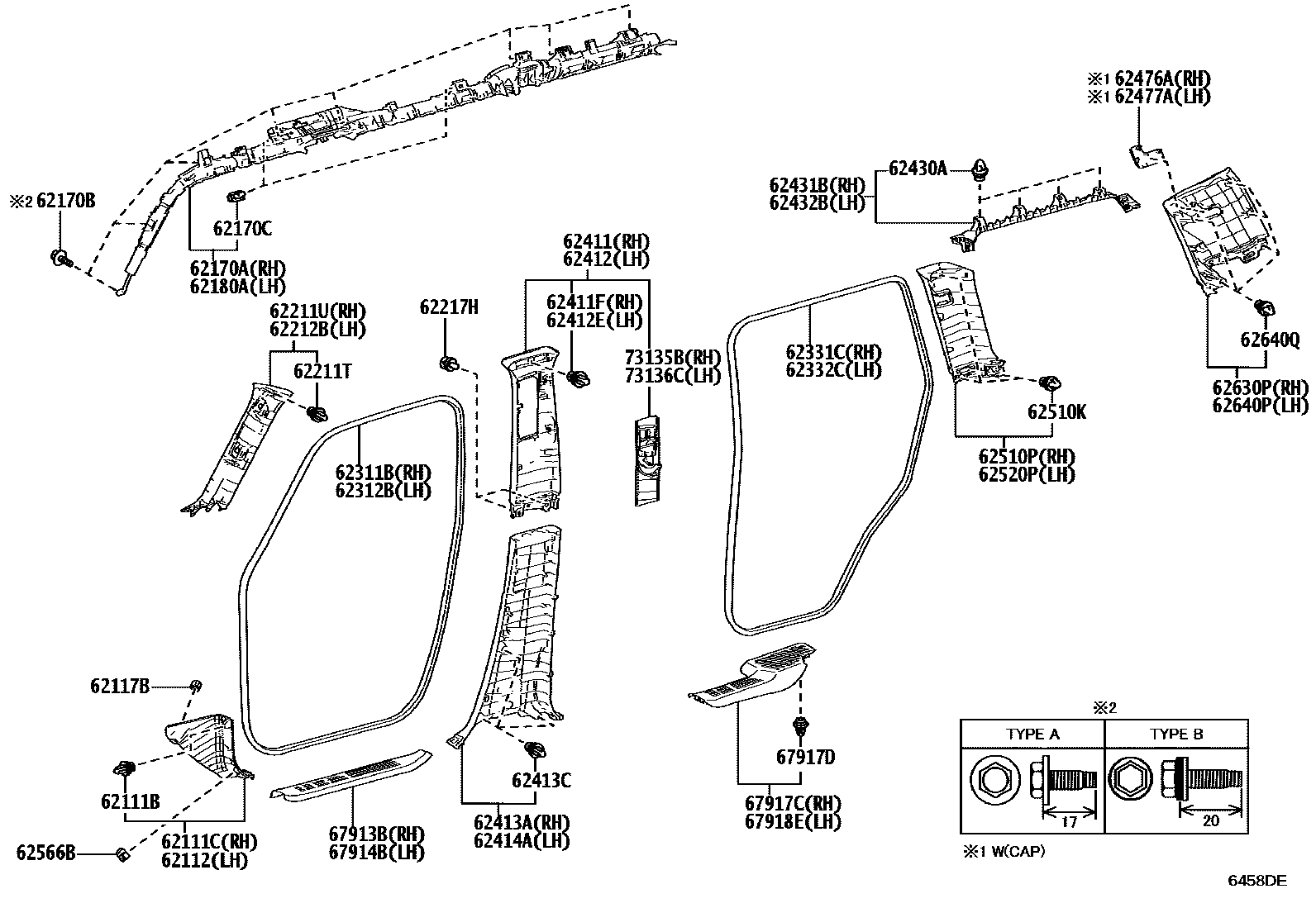

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62170CCLIP, CURTAIN SHIELD AIRBAG
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
FROMAGE,TRIM1#
BLACK,TRIM2#
62212BGARNISH ASSY, FRONT PILLAR, LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
FROMAGE,TRIM1#
BLACK,TRIM2#
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62411FCLIP, CENTER PILLAR GARNISH, RH
62412GARNISH, CENTER PILLAR, LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
62430ACLIP, ROOF SIDE RAIL GARNISH
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62476ACAP, ROOF SIDE INNER GARNISH, RH
FROMAGE,TRIM1#
BLACK,TRIM2#
62477ACAP, ROOF SIDE INNER GARNISH, LH
FROMAGE,TRIM1#
BLACK,TRIM2#
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62630PPANEL ASSY, QUARTER TRIM, REAR RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62640QCLIP (FOR QUARTER TRIM REAR PANEL)
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
67917DCLIP, REAR DOOR SCUFF PLATE
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
73135BCOVER, SHOULDER BELT ANCHOR, RH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
73136CCOVER, SHOULDER BELT ANCHOR, LH
FROMAGE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
42 parts on this diagram · 3 diagrams in section
