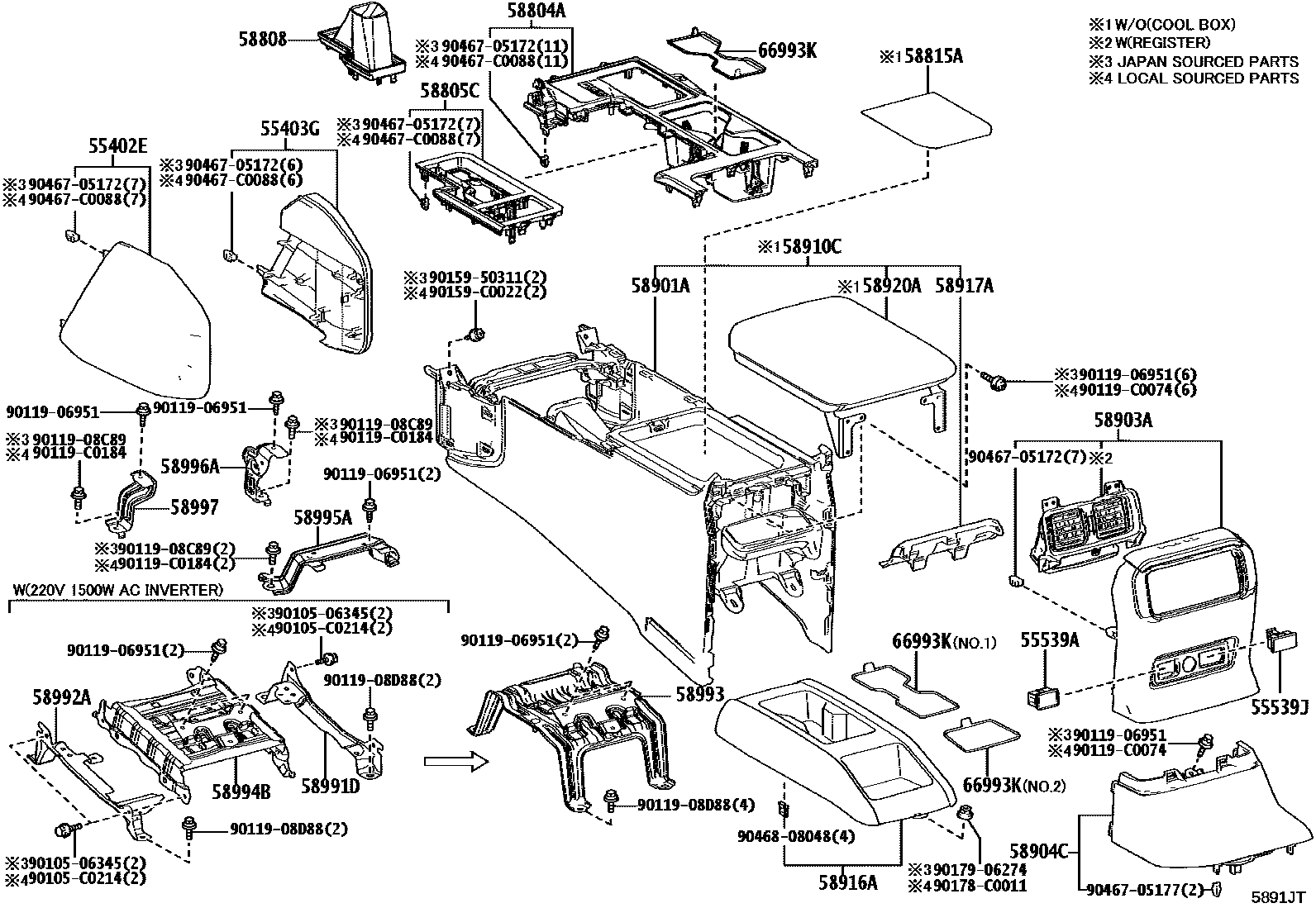

CONSOLE BOX & BRACKET
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM2#
CHATEAU,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM2#
CHATEAU,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM2#
REAR AIR CONDITIONER-WITH,BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58815ACARPET, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
REAR AIR CONDITIONER-WITH,BLACK,TRIM1#,2#
REAR AIR CONDITIONER-WITH,BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
REAR AIR CONDITIONER-WITH,BLACK,TRIM1#,2#
58904CPANEL SUB-ASSY, CONSOLE REAR END, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/CHATEAU/IVORY,TRIM1#
BLACK/BLACK/LT.GRAY,TRIM2#
REAR AIR CONDITIONER-WITH,BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/CHATEAU/IVORY,TRIM1#
REAR AIR CONDITIONER-WITH,BLACK/CHATEAU/IVORY,TRIM1#
BLACK/DK.CHESTNUT/LT.GRAY,TRIM4#
58916AINSERT, CONSOLE BOX, REAR
REAR SEAT-4:4 TUMBLE & 5:5
REAR SEAT-6:4 TUMBLE SEAT
58917ACOVER, CONSOLE BOX, REAR
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM2#
CHATEAU;IVORY,TRIM1#
BLACK;LT.GRAY,TRIM2#
REAR AIR CONDITIONER-WITH,BLACK;LT.GRAY,TRIM2#
DK. CHESTNUT;LT.GRAY,TRIM4#
58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH
AC INVERTER OUTPUT-220V 1500W
58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH
AC INVERTER OUTPUT-220V 1500W
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58994BBRACKET, CONSOLE BOX MOUNTING, NO.4
AC INVERTER OUTPUT-220V 1500W
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
66993KTRAY, CUP HOLDER
NO.1:REFER ILLUST.
REAR SEAT-4:4 TUMBLE & 5:5,NO.1:REFER ILLUST.
REAR SEAT-6:4 TUMBLE SEAT,NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
REAR SEAT-4:4 TUMBLE & 5:5,NO.2:REFER ILLUST.
9010506345
main90105-06345
90105C0214
main90105-C0214
9011906951
main90119-06951
9011908C89
main90119-08C89
9011908D88
main90119-08D88
90119C0074
main90119-C0074
90119C0184
main90119-C0184
9015950311
main90159-50311
90159C0022
main90159-C0022
90178C0011
main90178-C0011
9017906274
main90179-06274
9046705172
main90467-05172
9046705177
main90467-05177
90467C0088
main90467-C0088
9046808048
main90468-08048
38 parts on this diagram · 1 diagram in section
