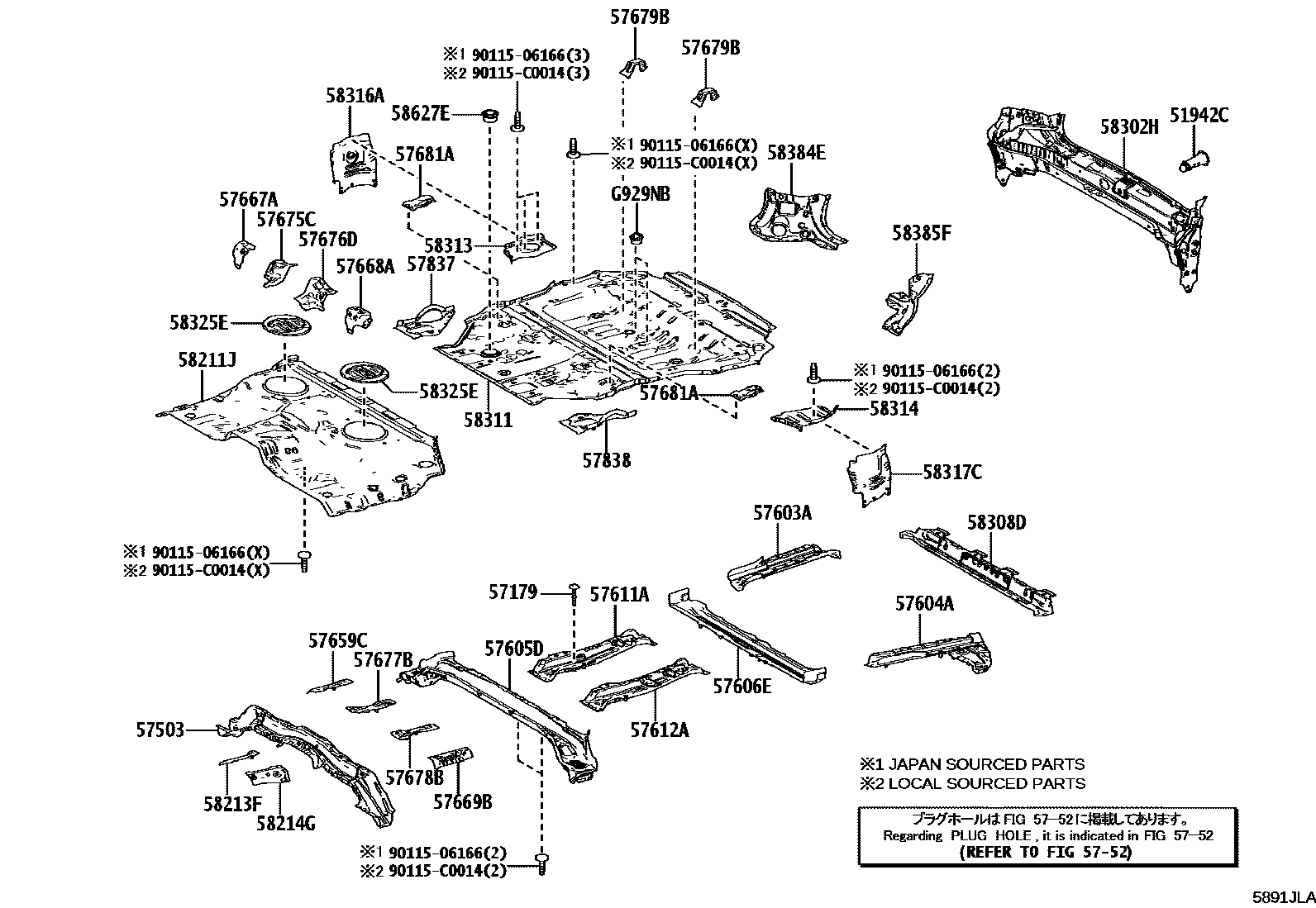

REAR FLOOR PANEL & REAR FLOOR MEMBER

51942CGUIDE, SPARE WHEEL CRANK HANDLE

main51942-0G010iTJH251202407

57179BOLT, FLOOR CROSSMEMBER

main57179-60030iTJH251202407

57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER

main57503-60020iTJH251202407

5752HOLE PLUG

→ Go to FIG 57-52

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-60320iTJH251202407

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-60170iTJH251202407

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-60320iTJH251202407

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60310iTJH251202407

57611AMEMBER, REAR FLOOR SIDE, RH

main57601-60260iTJH251..R,U202407

main57601-60270iTJH251..A,L; TJH251..R202407

REAR SEAT-4:4 TUMBLE & 5:5

57612AMEMBER, REAR FLOOR SIDE, LH

main57602-60190iTJH251202407

57659CMEMBER, REAR FLOOR CROSS, NO.8

main57659-0G010iTJH251202407

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-0G010iTJH251202407

57668AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5

main57668-0G010iTJH251202407

57669BMEMBER, REAR FLOOR CROSS, NO.9

main57669-0G010iTJH251202407

57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH

main57675-0G010iTJH251202407

57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH

main57676-0G010iTJH251202407

57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH

main57677-0G010iTJH251202407

57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH

main57678-0G010iTJH251202407

57679BRETAINER, REAR FLOOR CROSSMEMBER

main57679-0G010×2iTJH251202407

57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER

main57681-0G010×2iTJH251202407

57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-60050iTJH251202407

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-60060iTJH251202407

58211JPAN, CENTER FLOOR

main58211-0G040iTJH251202407

main58211-0G030iTJH251..A,L202407

REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER)

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-60060iTJH251202407

58214GREINFORCEMENT, CENTER FLOOR PANEL, LH

main58214-60010iTJH251202407

58302HPANEL SUB-ASSY, LOWER BACK

main58302-60640iTJH251202407-202408

main58302-60641iTJH251202409

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-60250iTJH251202407

58311PAN, REAR FLOOR

main58311-0G040iTJH251..A,L; TJH251..R202407

REAR SEAT-4:4 TUMBLE & 5:5

main58311-0G050iTJH251..R,U202407

58313PANEL, REAR FLOOR SIDE, RH

main58313-60280iTJH251202407

58314PANEL, REAR FLOOR SIDE, LH

main58314-60170iTJH251202407

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0G010iTJH251202407

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0G010iTJH251202407

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0G020×2iTJH251202407

58384EGUSSET, LOWER BACK PANEL, NO.1 RH

main58384-60150iTJH251202407

58385FGUSSET, LOWER BACK PANEL, NO.1 LH

main58385-60160iTJH251202407

58627ECOVER, REAR FLOOR SIDE MEMBER, RH

main57627-60010iTJH251202407

G929NBPLUG, BATTERY DRAIN

mainG929N52010×2iTJH251202407

9011506166

main90115-06166

90115C0014

main90115-C0014

39 parts on this diagram · 1 diagram in section
