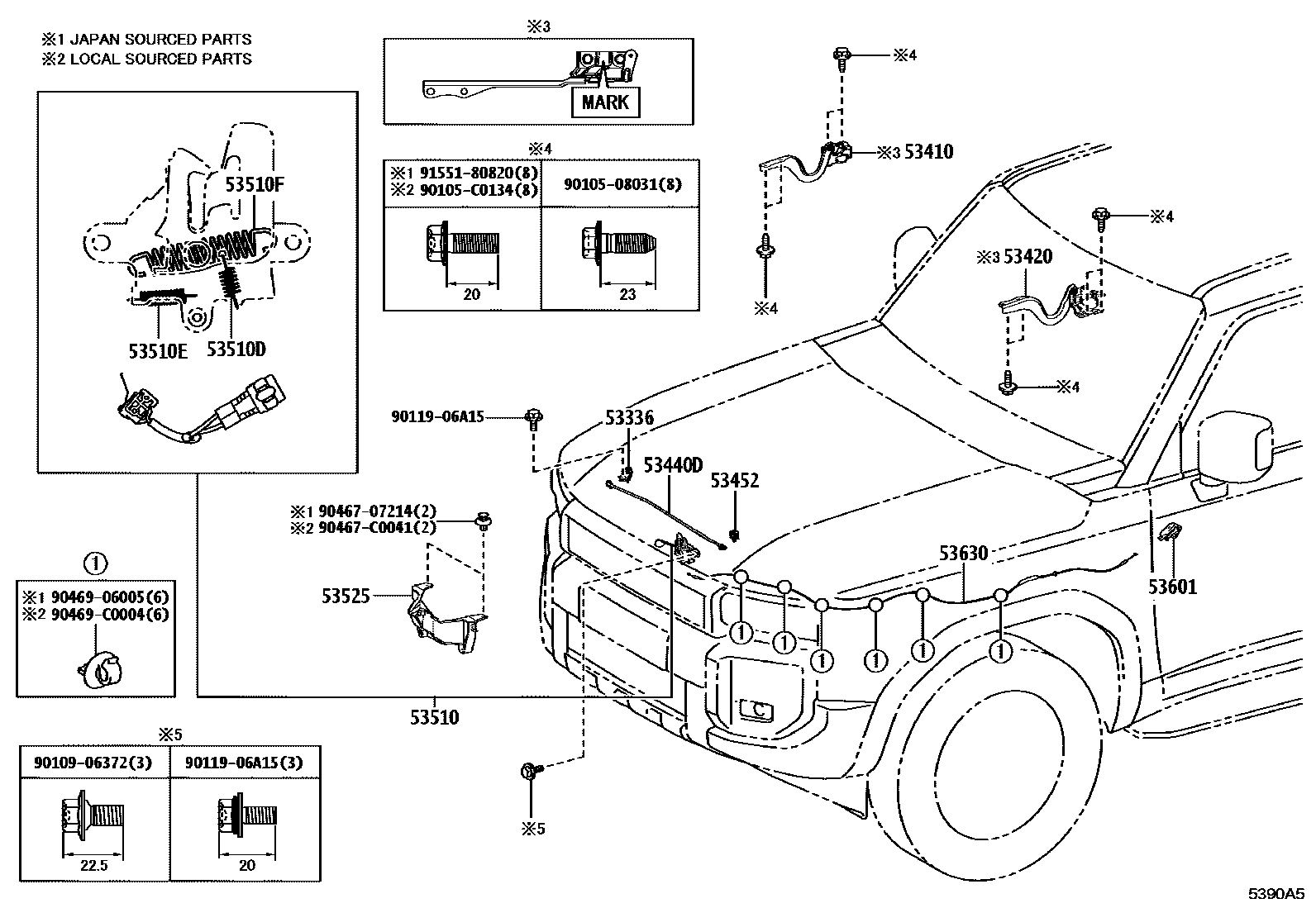

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-0G010iTJH251202407

53410HINGE ASSY, HOOD, RH

main53410-0G040iTJH251202407

PR0

main53410-0G050iTJH251202407

PR+

main53410-0G060iTJH251202407

PR-

53420HINGE ASSY, HOOD, LH

main53420-0G040iTJH251202407

PL0

main53420-0G050iTJH251202407

PL+

main53420-0G060iTJH251202407

PL-

53440DSUPPORT ASSY, HOOD

main53440-0G040iTJH251202407

53452HOLDER, HOOD STAY

main53452-0R030iTJH251202407

53510LOCK ASSY, HOOD

main53510-0G040iTJH251202407

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iTJH251202407

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iTJH251202407

WD=0.9,CW=21

53510FSPRING, TENSION(FOR HOOD LOCK)

main90506-16077iTJH251202407

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-0G030iTJH251202407

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C1iTJH251..A; TJH251..L,R; TJH251..U202407

BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0G050iTJH251202407

9010508031

main90105-08031

90105C0134

main90105-C0134

9010906372

main90109-06372

9011906A15

main90119-06A15

9046707214

main90467-07214

90467C0041

main90467-C0041

9046906005

main90469-06005

90469C0004

main90469-C0004

9155180820

main91551-80820

21 parts on this diagram · 1 diagram in section
