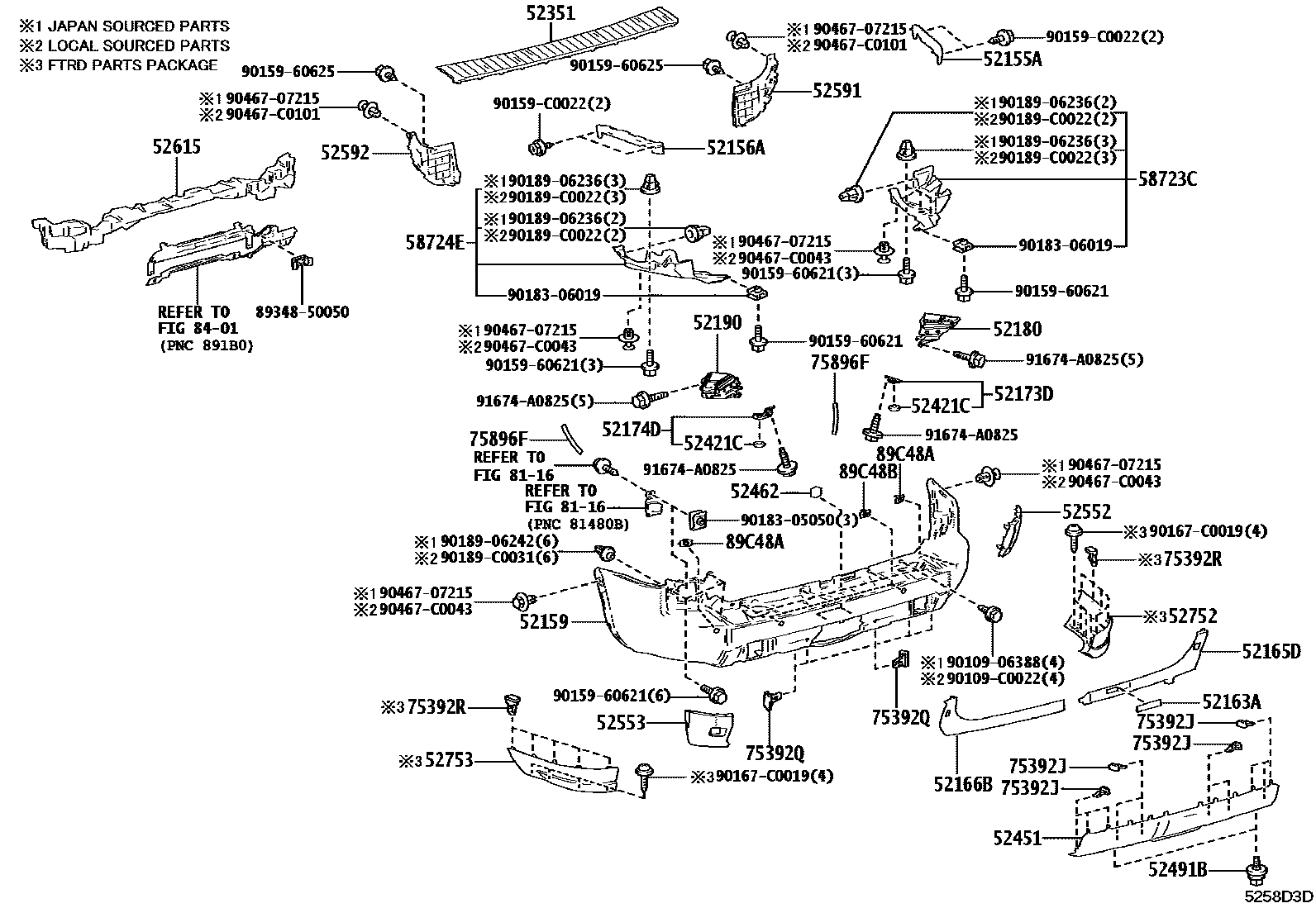

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0G020i202407

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0G020i202407

52159COVER, REAR BUMPER

main52159-0G070i202407

NO PAINT REQ.

main52159-0G080i202407

NO PAINT REQ.

main52159-0G080i202407

NO PAINT REQ.,DIGITAL KEY-WITH&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)

main52159-0G080i202407

NO PAINT REQ.,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)

main52159-0G907i202407

PAINT REQ.

52163APLATE, REAR BUMPER, RH

main52163-0G010i202407

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-0G010i202407

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-0G010i202407

52173DREINFORCEMENT, REAR BUMPER BAR, RH

main52173-60120i202407

52174DREINFORCEMENT, REAR BUMPER BAR, LH

main52174-60120i202407

52180BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH

main52180-0G010i202407

52190BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH

main52190-0G010i202407

52351STEP, REAR BUMPER

main52351-0G010i202407

52421CPAD, REAR BUMPER

main52421-60191i202407

52451GUARD, REAR BUMPER

main52451-0G010i202407

main52451-0G020i202407

main52451-0G030i202407

52462PAD, REAR BUMPER, RH

main52462-0G020i202407-202409

NO PAINT REQ.

main52462-F4040i202407-202409

NO PAINT REQ.

52491BBOLT, BUMPER PAD

main52491-60010i202407

52552FILLER, REAR BUMPER, RH

main52552-0G900i202407

52553FILLER, REAR BUMPER, LH

main52553-0G900i202407

52591SEAL, REAR BUMPER SIDE, RH

main52591-0G010i202407

52592SEAL, REAR BUMPER SIDE, LH

main52592-0G010i202407

52615ABSORBER, REAR BUMPER ENERGY

main52615-0G020i202407

52752MOULDING, REAR BUMPER SIDE, RH

main52752-YK900

52753MOULDING, REAR BUMPER SIDE, LH

main52753-YK900

58723CPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1

main58723-0G020i202407

58724EPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2

main58724-0G020i202407

75392JRETAINER, OUTSIDE MOULDING

main75392-0R030i202407

(L)

main75392-35220i202407

(J)

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-0R030i202407

(L)

main75392-35220i202407

(J)

75392RRETAINER, OUTSIDE MOULDING, NO.3

75896FTAPE, MOULDING

main75895-53010i202407

8116REAR FOG LAMP

→ Go to FIG 81-16

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-60440-A0i202407

PLATINUM WHITE PEARL MC.,089,RH

main89348-60440-C2i202407

BLACK MC.,209,RH

main89348-60440-E0i202407

AVANT-GARDE BRONZE ME.,4V8,RH

main89348-60450-A0i202407

PLATINUM WHITE PEARL MC.,089,LH

main89348-60450-C2i202407

BLACK MC.,209,LH

main89348-60450-E0i202407

AVANT-GARDE BRONZE ME.,4V8,LH

main89348-V2330-C1i202407

DUMMY-MAT BLACK,RH

main89348-V2330-C1i202407

PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK,RH

main89348-V2340-C1i202407

DUMMY-MAT BLACK,LH

main89348-V2340-C1i202407

PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-78120-A3i202407

PLATINUM WHITE PEARL MC.,089

main89348-78120-C2i202407

DUMMY-MAT BLACK

main89348-78120-C2i202407

PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4),DUMMY-MAT BLACK

main89348-78120-C6i202407

BLACK MC.,209

main89348-78120-E2i202407

AVANT-GARDE BRONZE ME.,4V8

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9010906388

main90109-06388

90109C0022

main90109-C0022

9015960621

main90159-60621

9015960625

main90159-60625

90159C0022

main90159-C0022

90167C0019

main90167-C0019

9018305050

main90183-05050

9018306019

main90183-06019

9018906236

main90189-06236

9018906242

main90189-06242

90189C0022

main90189-C0022

90189C0031

main90189-C0031

9046707215

main90467-07215

90467C0043

main90467-C0043

90467C0101

main90467-C0101

91674A0825

main91674-A0825

49 parts on this diagram · 1 diagram in section
