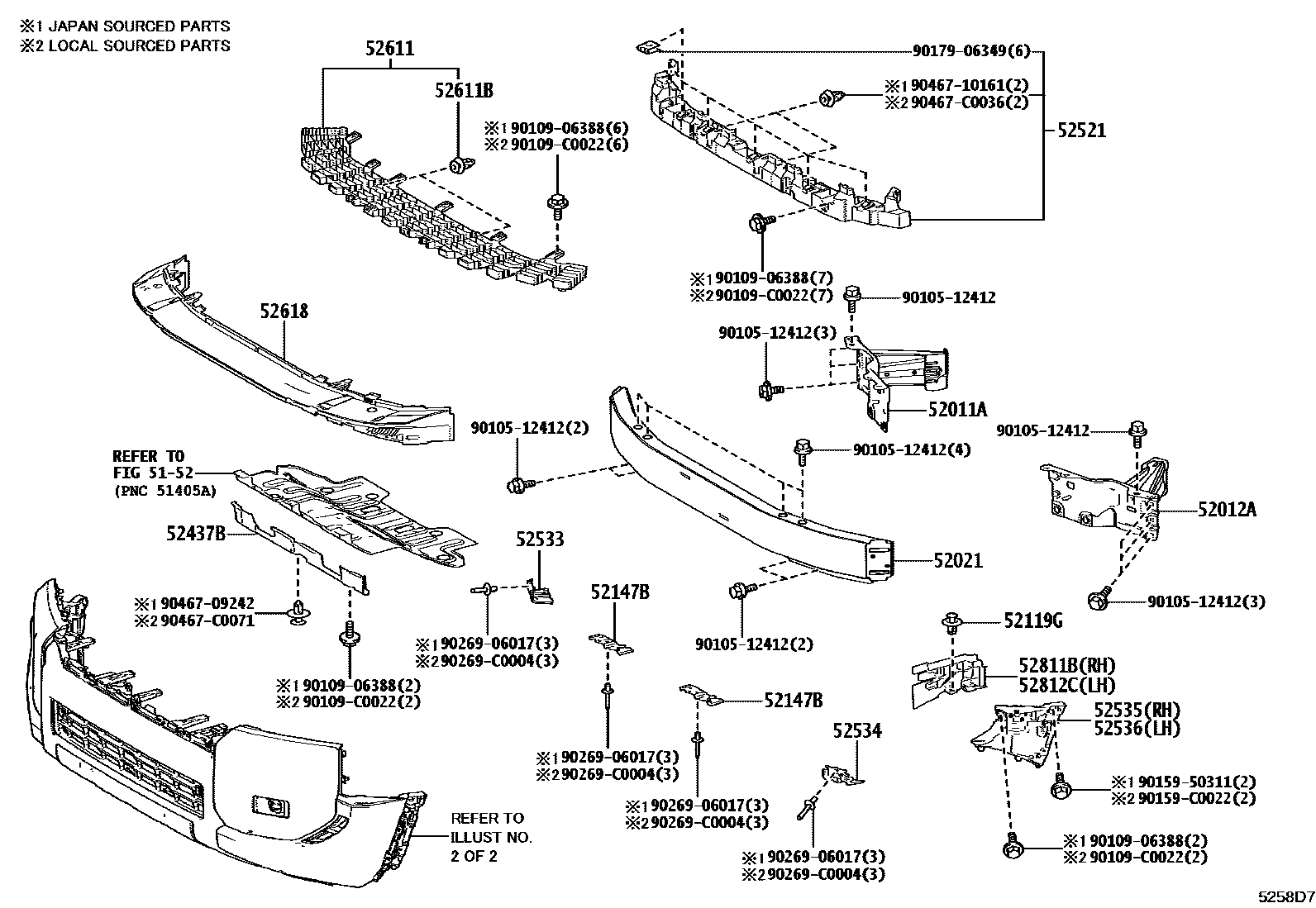

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5152

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-60040iTJH251202407

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-60040iTJH251202407

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60250iTJH251202407

52119GCLIP, NO.1

main90467-07215iTJH251202407

(J)

main90467-C0043iTJH251202407

(L)

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-60140iTJH251202407

52437BCOVER, FRONT BUMPER GUARD BASE

main52437-0G020iTJH251202407

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-0G040iTJH251202407

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-60070iTJH251202407

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52534-60070iTJH251202407

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0G020iTJH251202407

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0G020iTJH251202407

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0G030iTJH251202407

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232iTJH251202407

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0G020iTJH251202407

52811BDUCT, COOL AIR INTAKE, NO.1

main52811-0G010iTJH251202407

52812CDUCT, COOL AIR INTAKE, NO.2

main52812-0G010iTJH251202407

9010512412

main90105-12412

9010906388

main90109-06388

90109C0022

main90109-C0022

9015950311

main90159-50311

90159C0022

main90159-C0022

9017906349

main90179-06349

9026906017

main90269-06017

90269C0004

main90269-C0004

9046709242

main90467-09242

9046710161

main90467-10161

90467C0036

main90467-C0036

90467C0071

main90467-C0071

29 parts on this diagram · 3 diagrams in section
