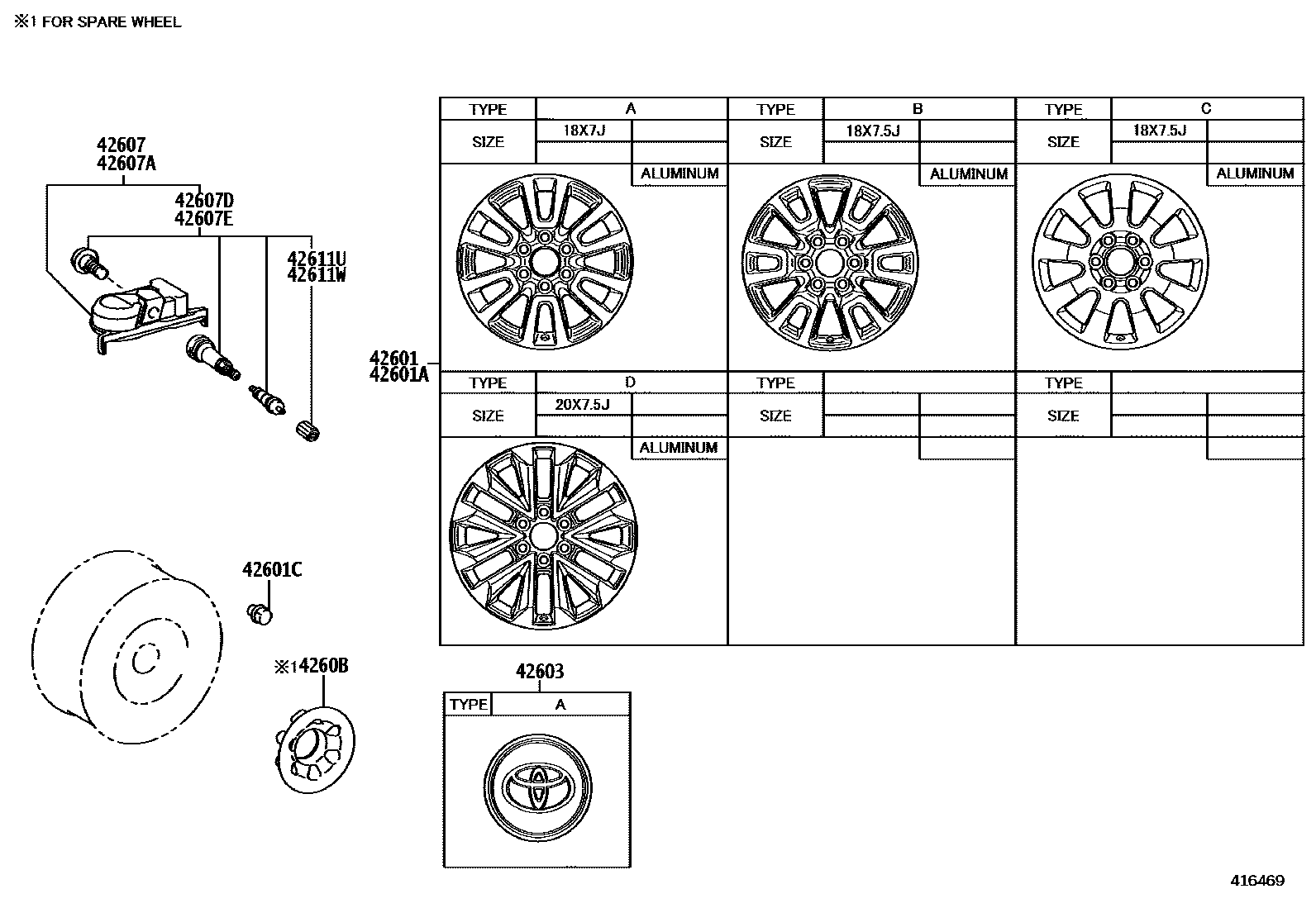

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
42601AWHEEL, DISC (FOR SPARE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
4260BCOVER SUB-ASSY, WHEEL HUB
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 2 diagrams in section
