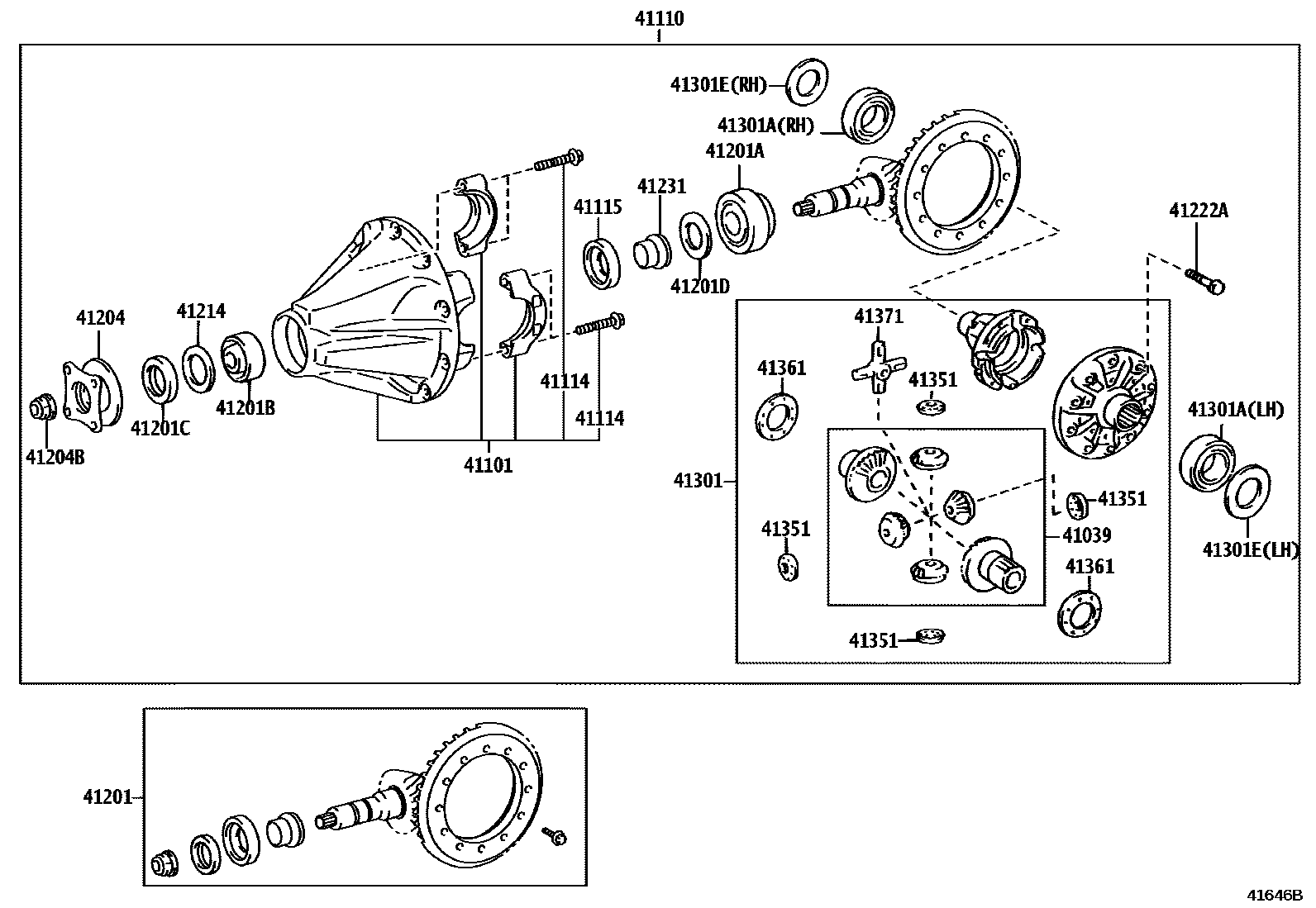

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
DIFFERENTIAL LOCK-WITH
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:12=3.583
*FGR=43:12=3.583
*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH
*FGR=43:12=3.583
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:12=3.583
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.85
T=1.87
T=1.89
T=1.91
T=1.93
T=1.95
T=1.97
T=1.99
T=2.01
T=2.03
T=2.05
T=2.07
T=2.09
T=2.11
T=2.13
T=2.15
T=2.17
T=2.19
T=2.21
T=2.23
T=2.25
T=2.27
T=2.29
T=2.31
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
LH
RH
41301ESHIM(FOR DIFFERENTIAL CASE)
T=2.08,LH
T=2.10,LH
T=2.12,LH
T=2.14,LH
T=2.16,LH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
T=2.32,LH
T=2.34,LH
T=2.36,LH
T=2.38,LH
T=2.40,LH
T=2.42,LH
T=2.44,LH
T=2.46,LH
T=2.48,LH
T=2.50,LH
T=2.52,LH
T=2.54,LH
T=2.56,LH
T=2.58,LH
T=2.60,LH
T=2.62,LH
T=2.64,LH
T=2.66,LH
T=2.68,LH
T=2.06,RH
T=2.08,RH
T=2.10,RH
T=2.12,RH
T=2.14,RH
T=2.16,RH
T=2.18,RH
T=2.20,RH
T=2.22,RH
T=2.24,RH
T=2.26,RH
T=2.28,RH
T=2.30,RH
T=2.32,RH
T=2.34,RH
T=2.36,RH
T=2.38,RH
T=2.40,RH
T=2.42,RH
T=2.44,RH
T=2.46,RH
T=2.48,RH
T=2.50,RH
T=2.52,RH
T=2.54,RH
T=2.56,RH
T=2.58,RH
T=2.60,RH
T=2.62,RH
T=2.64,RH
T=2.66,RH
T=2.68,RH
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9
T=1.0
T=1.1
T=1.2
T=1.3
41371SPIDER, REAR DIFFERENTIAL
21 parts on this diagram · 4 diagrams in section
