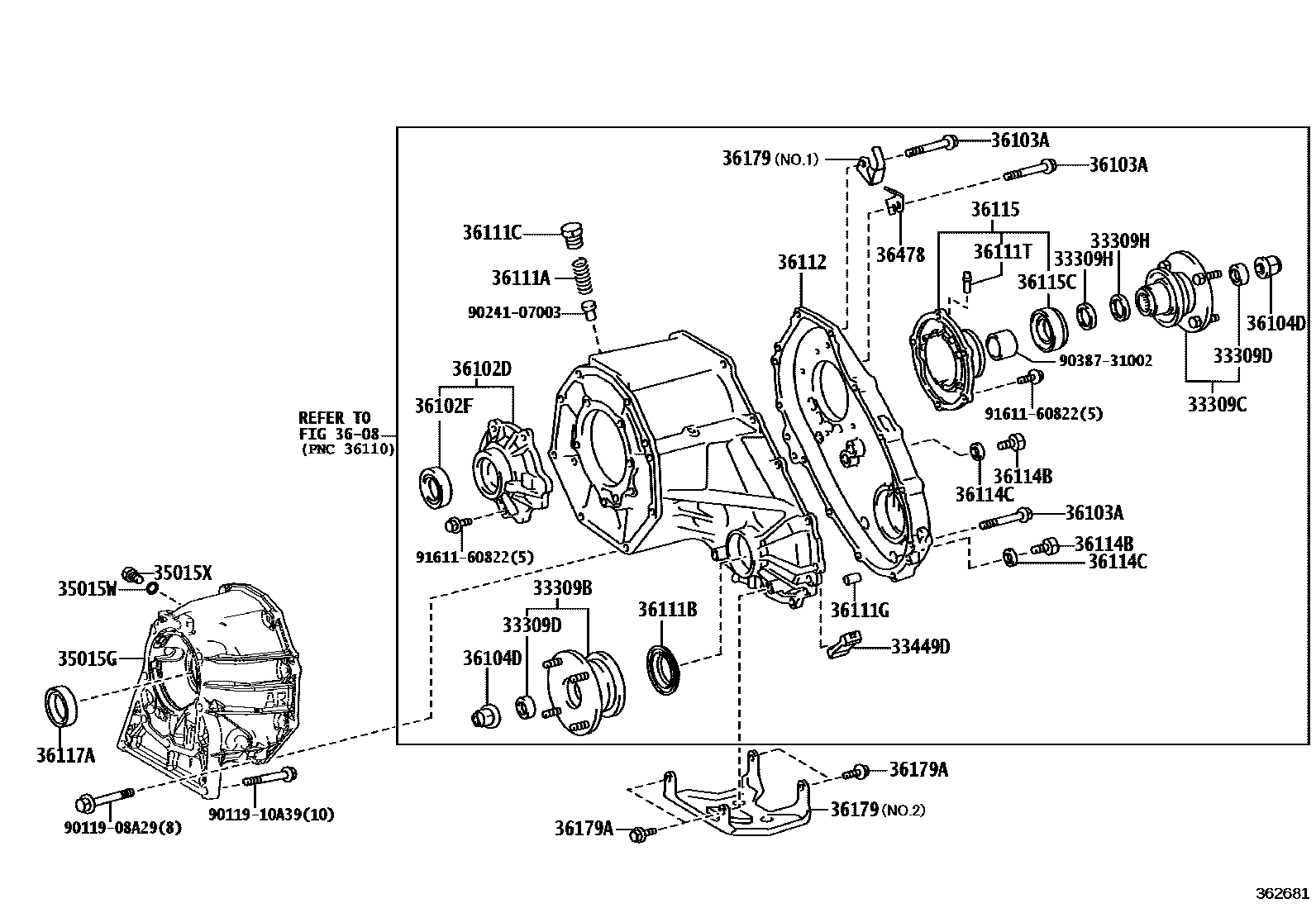

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=31,OD=38
33449DMAGNET (FOR TRANSFER CASE)
35015GADAPTER, TRANSFER, REAR
35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)
35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)
3608
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111CPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117ASEAL, OIL(FOR TRANSFER ADAPTER)
36179PROTECTOR, TRANSFER CASE LOWER
NO.2:REFER ILLUST.
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
36478BRACKET, TRANSFER BREATHER
9011908A29
main90119-08A29
9011910A39
main90119-10A39
9024107003
main90241-07003
9038731002
main90387-31002
9161160822
main91611-60822
32 parts on this diagram · 2 diagrams in section
