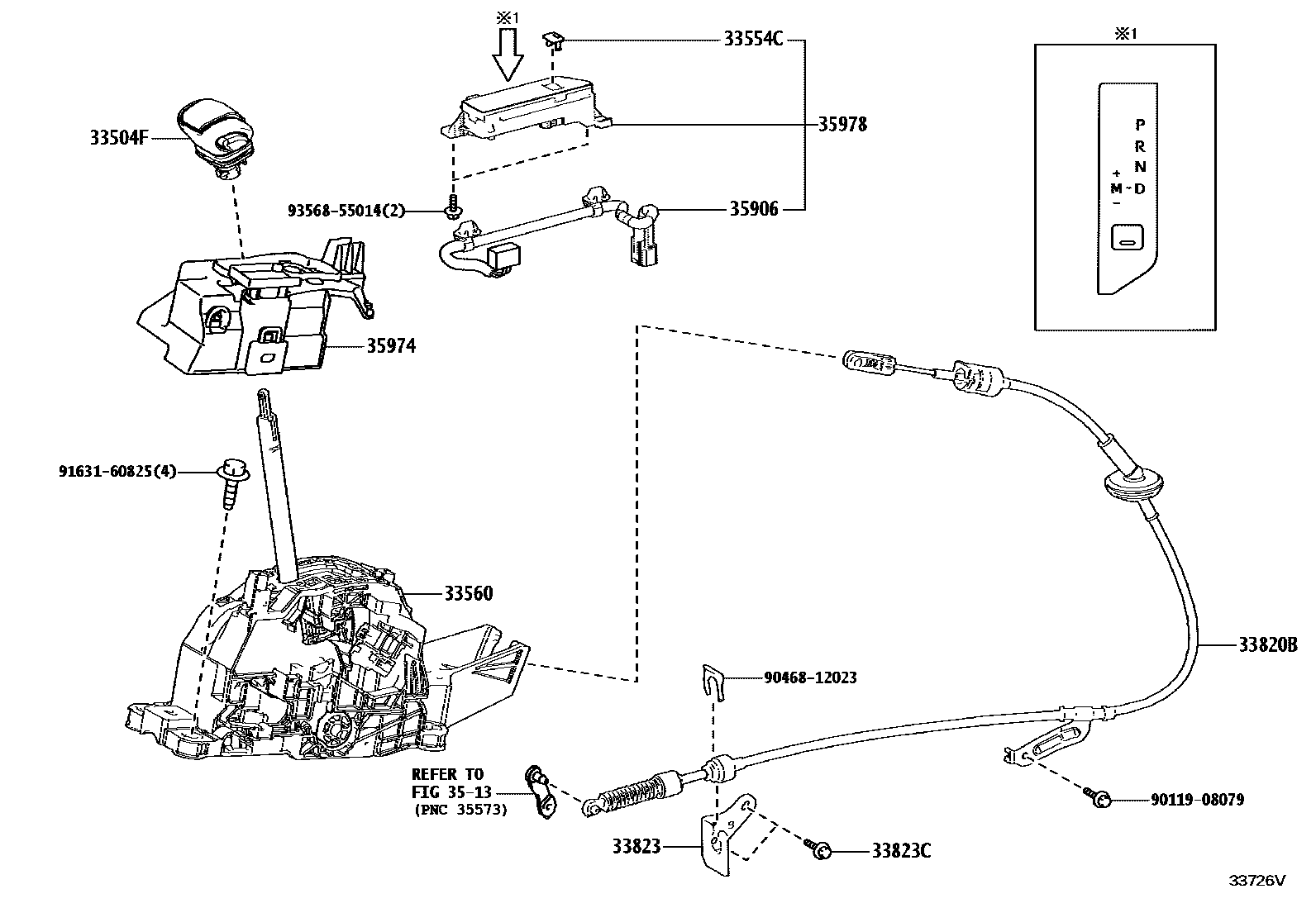

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60600-C1iTJH251..U202407

BLACK,TRIM2#

main33504-60640-C0iTJH251..A; TJH251..L,R202407

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-V2010iTJH251202407

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-60290iTJH251202407

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-60260iTJH251202407

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-60070iTJH251202407

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iTJH251202407

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-60250iTJH251202407

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60260iTJH251202407

35978INDICATOR, SHIFT POSITION

main35978-60210iTJH251202407

9011908079

main90119-08079

9046812023

main90468-12023

9163160825

main91631-60825

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
