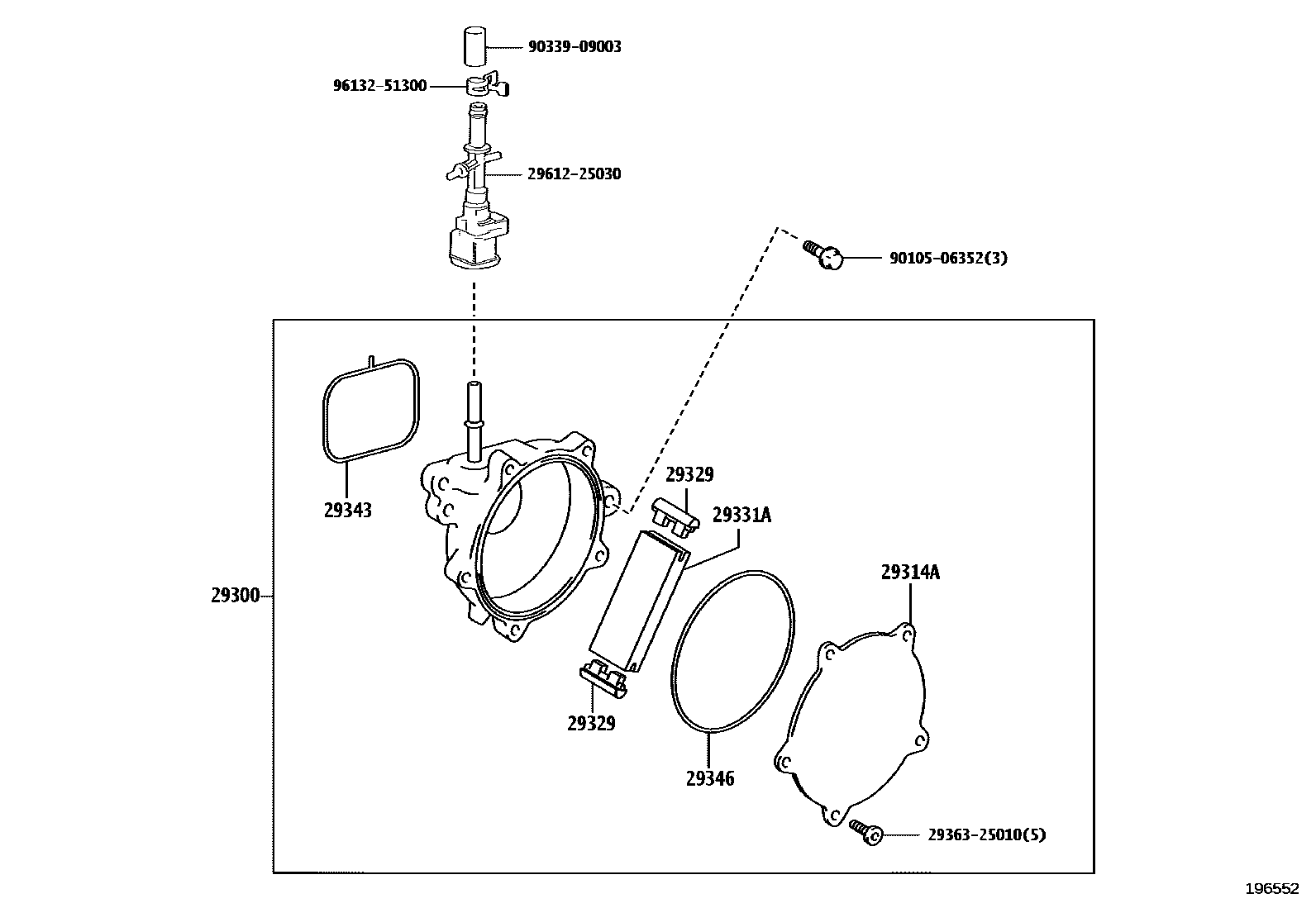

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25012iT24..TJH251202407

29314ACOVER, END

main29314-25010iT24..TJH251202407

29329CAP, VACUUM PUMP VANE

main29329-25011×2iT24..TJH251202407

29331AVANE, VACUUM PUMP

main29331-37010iT24..TJH251202407

29343RING, O VACUUM PUMP, NO.1

main29343-25010iT24..TJH251202407

29346RING, O VACUUM PUMP COVER

main29346-25010iT24..TJH251202407

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

2961225030CONNECTOR, VACUUM PUMP

main29612-25030

9010506352

main90105-06352

9033909003

main90339-09003

9613251300

main96132-51300

11 parts on this diagram · 1 diagram in section
