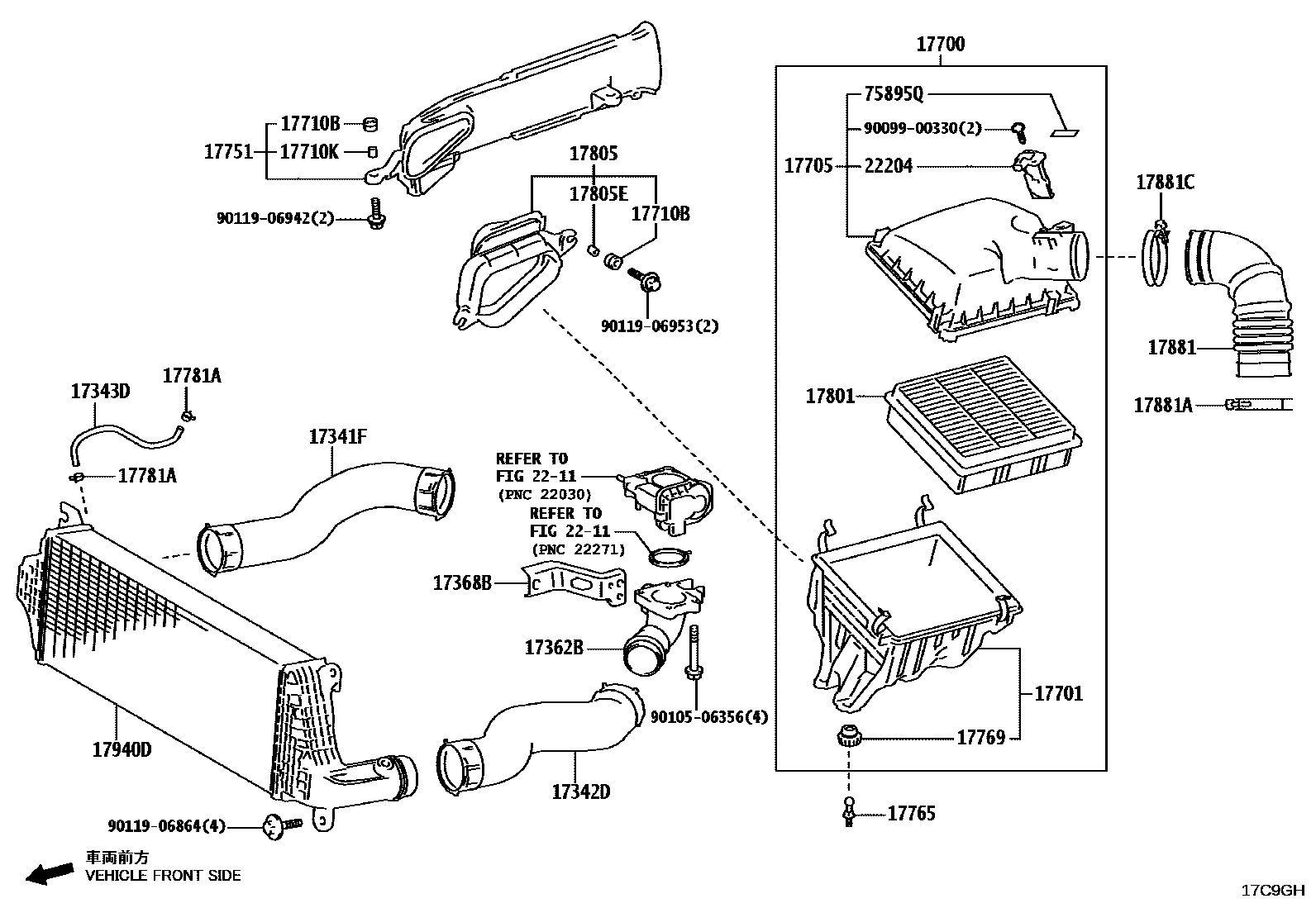

AIR CLEANER
17341FHOSE, AIR, NO.1
17343DHOSE, AIR, NO.3
17368BSUPPORT, AIR TUBE
17701CASE SUB-ASSY, AIR CLEANER
(J)
(L)
17705CAP SUB-ASSY, AIR CLEANER
(J)
(L)
17710BGROMMET
17710KCOLLAR(FOR AIR CLEANER)
17751INLET, AIR CLEANER, NO.1
(J)
(L)
17765STAY, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17781ACLAMP, HOSE
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
(J)
(L)
17805ECOLLAR(FOR INTAKE AIR CONNECTOR)
17881HOSE, AIR CLEANER, NO.1
(J)
(L)
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17940DINTERCOOLER ASSY
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
75895QTAPE, MOULDING, NO.1
9009900330
main90099-00330
9010506356
main90105-06356
9011906864
main90119-06864
9011906942
main90119-06942
9011906953
main90119-06953
29 parts on this diagram · 1 diagram in section
