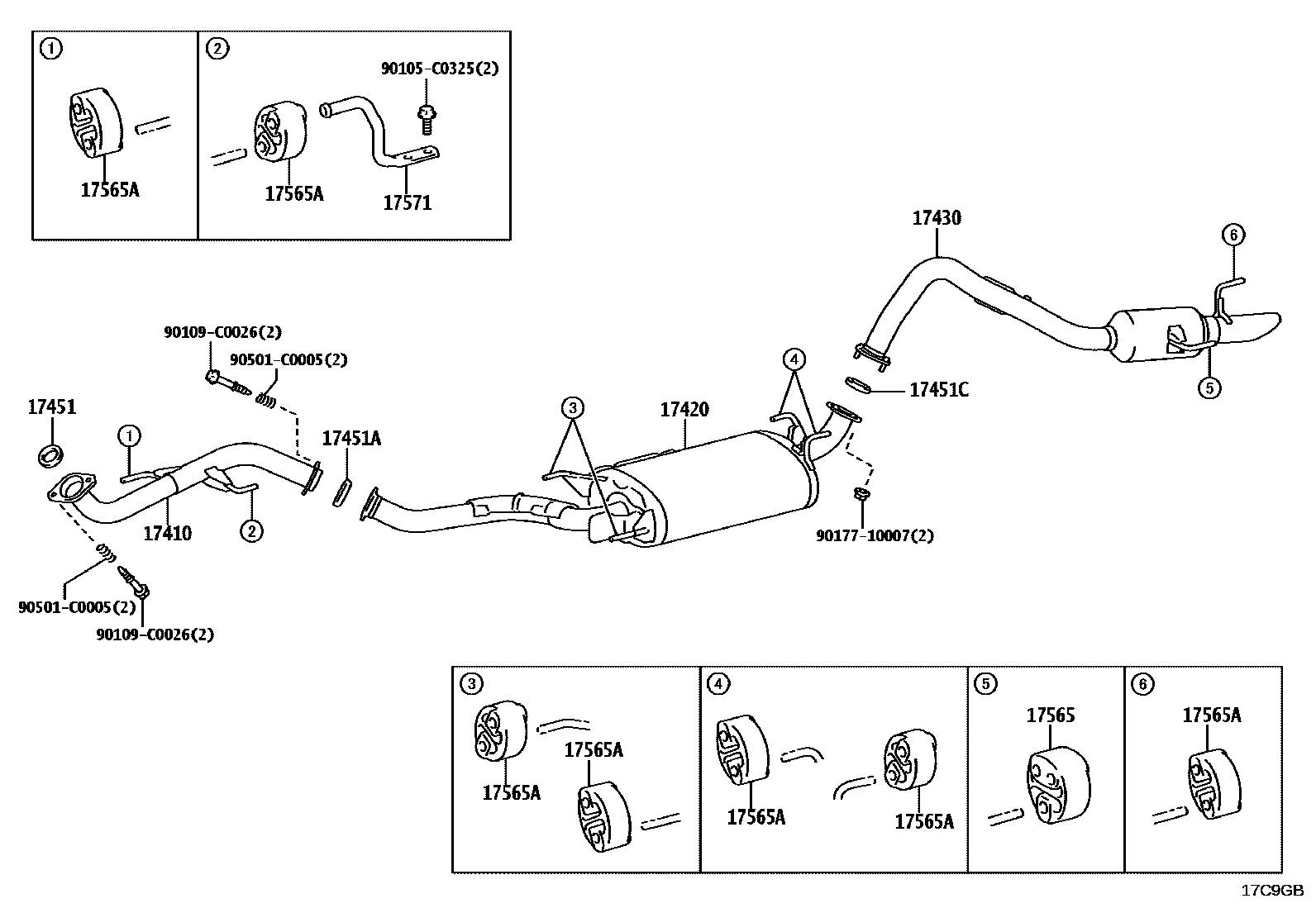

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
(J)
(L)
17420PIPE ASSY, EXHAUST, CENTER
(J)
(L)
17430PIPE ASSY, EXHAUST, TAIL
(J)
(L)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
90105C0325
main90105-C0325
90109C0026
main90109-C0026
9017710007
main90177-10007
90501C0005
main90501-C0005
13 parts on this diagram · 1 diagram in section
